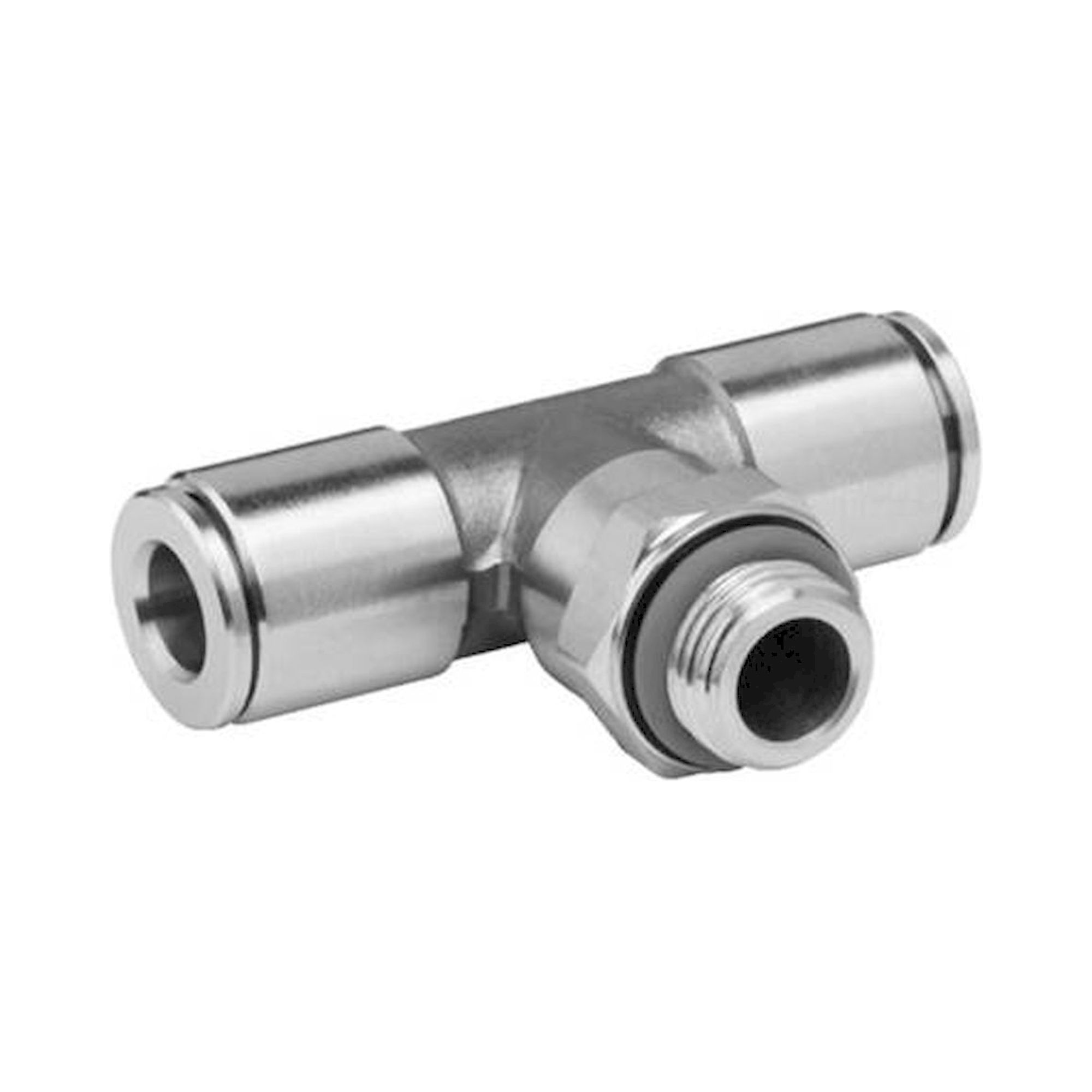

T-union M5 to Ø 4 mm, stainless steel QR2-C-RTT-M005-DA04 - Aventics R412004889
Stainless steel T-union QR2-C-RTT-M005-DA04 with external thread M5 and push-in connection Ø 4 mm, housing, tooth lock washer, release ring and thread in stainless steel. Working pressure ranges from -0.95 to 16 bar, ambient temperature from -20 to 150 °C. Suitable for use in food processing according to the manufacturer.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The QR2-C-RTT-M005-DA04 from the QR2-C stainless steel series connects external thread M5 and push-in connection Ø 4 mm. It withstands 16 bar and ambient temperatures up to 150 °C.
Benefits
- Push-in connection for Ø 4 mm tubing, released via the stainless steel release ring.
- External thread M5, thread in stainless steel.
- Working pressure -0.95 to 16 bar, vacuum-rated.
- Ambient temperature -20 to 150 °C.
- Housing in stainless steel, FKM seals.
- Food-grade according to the manufacturer.
Applications
Typical locations for the QR2-C-RTT-M005-DA04 are systems with ambient temperatures up to 150 °C that call for a stainless steel housing.
Technical data
| Series | QR2-C |
|---|---|
| Type | QR2-C-RTT-M005-DA04 |
| Fitting type | T-union |
| Compressed air connection type | External thread |
| Port G | M5 |
| Compressed air connection type 2 | Push-in fitting |
| Port D | Ø 4 mm |
| Min. working pressure | -0.95 bar |
| Max. working pressure | 16 bar |
| Min. ambient temperature | -20 °C |
| Max. ambient temperature | 150 °C |
| Housing material | Stainless steel |
| Seal material | Fluororubber (FKM) |
| Material tooth lock washer | Stainless steel |
| Material release ring | Stainless steel |
| Material thread | Stainless steel |
| Suitable for food processing | yes |
| Material number | R412004889 |
| Weight | 0.014 kg |
| Manufacturer | Aventics |
| Hersteller-Nr | R412004889 |
| Zolltarifnummer | 73072980 |
| GPSR Herstellerdaten | AVENTICS GmbH, Ulmer Straße 4, DE-30880 Laatzen, aventics.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Germany |
| Colour | Stainless Steel |
| Thread | M5 |
| For hose OD [mm] | 4 |
| Working pressure max. [bar] | 16 |
| Thread type | External thread |
| Temperaturbereich | -20-150 °C |
