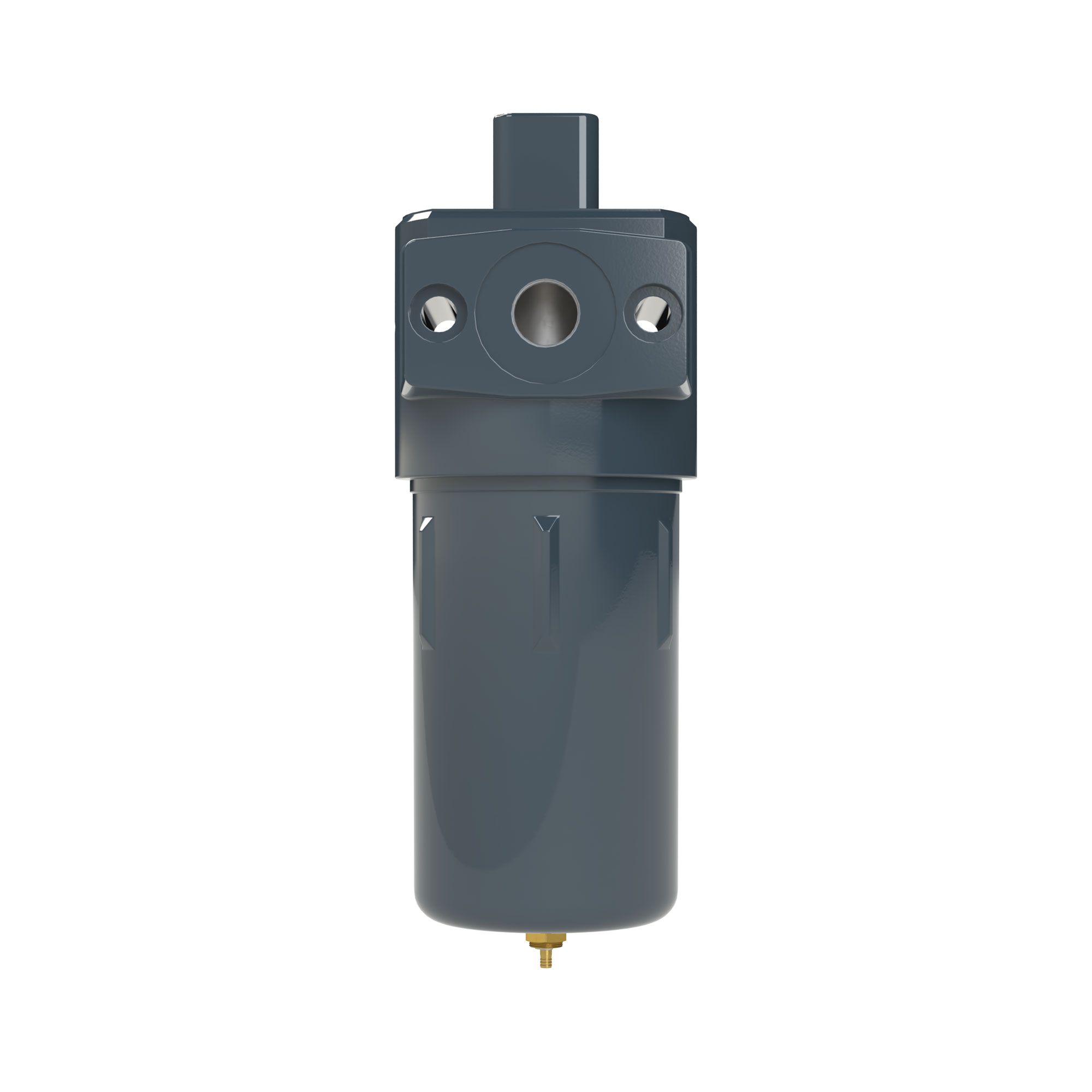

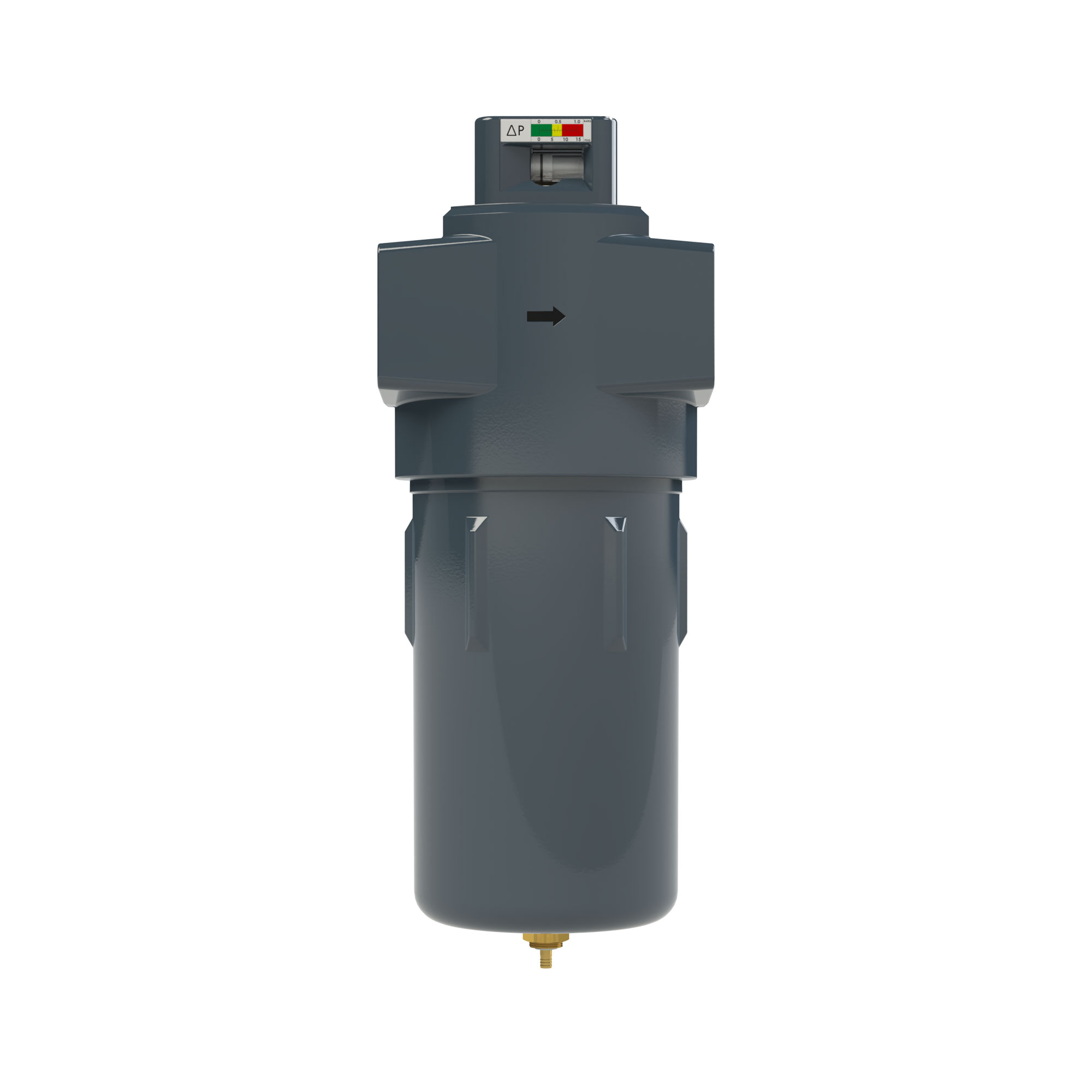

Activated carbon filter, residual oil 0.003 mg/m³, G 3/4, semi-automatic drain valve, with differential pressure gauge, type FSPA.G34 - Riegler 146956

The activated carbon filter adsorbs vapours from the compressed air and reaches a residual oil content of 0.003 mg/m³. Port G 3/4, flow rate 3000 l/min at P1 = 7 bar and pressure drop Δp = 0.1 bar.

Advantages

• Residual oil content 0.003 mg/m³
• Flow rate 3000 l/min (P1 = 7 bar and pressure drop Δp = 0.1 bar)
• Inlet pressure 4 to 16 bar
• Aluminium filter bowl
• Semi-automatic drain valve
• Differential pressure gauge 0 to 1 bar shows the pressure drop across the element

Applications

If dried compressed air is not available, an upstream microfilter is required.
