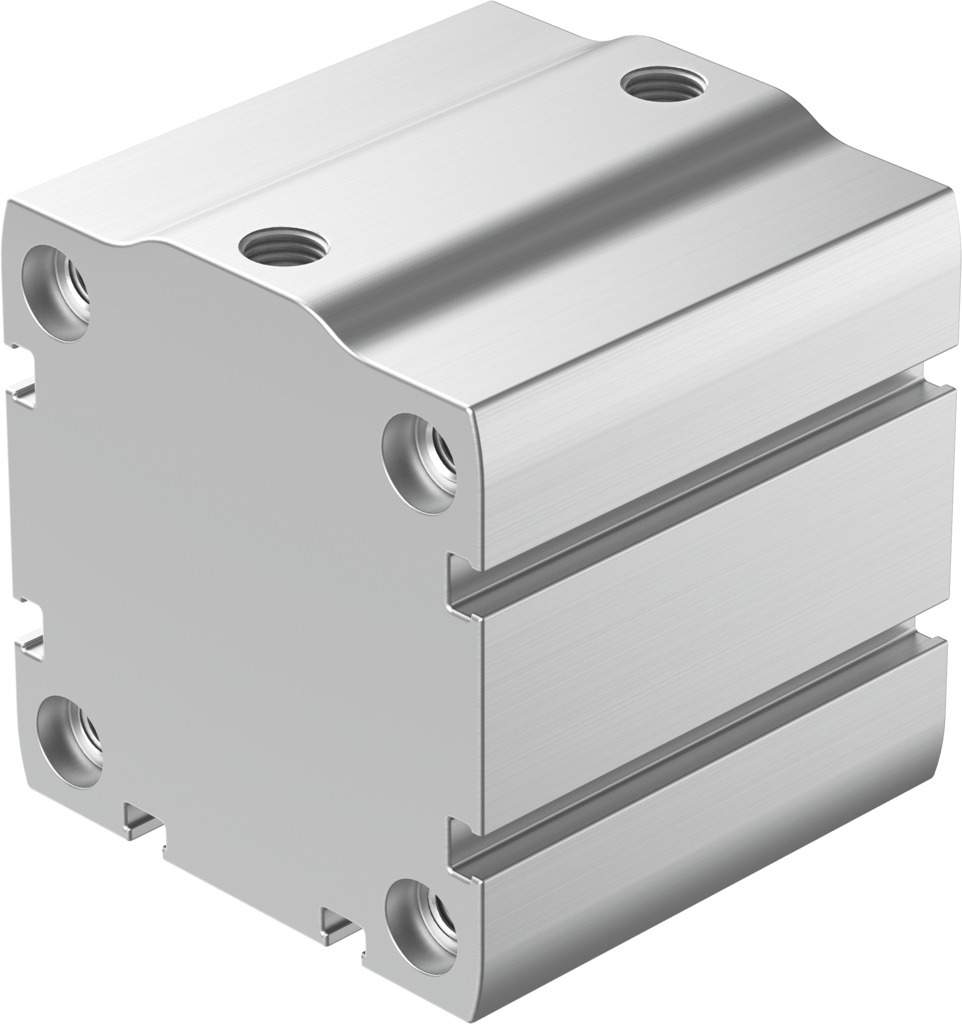

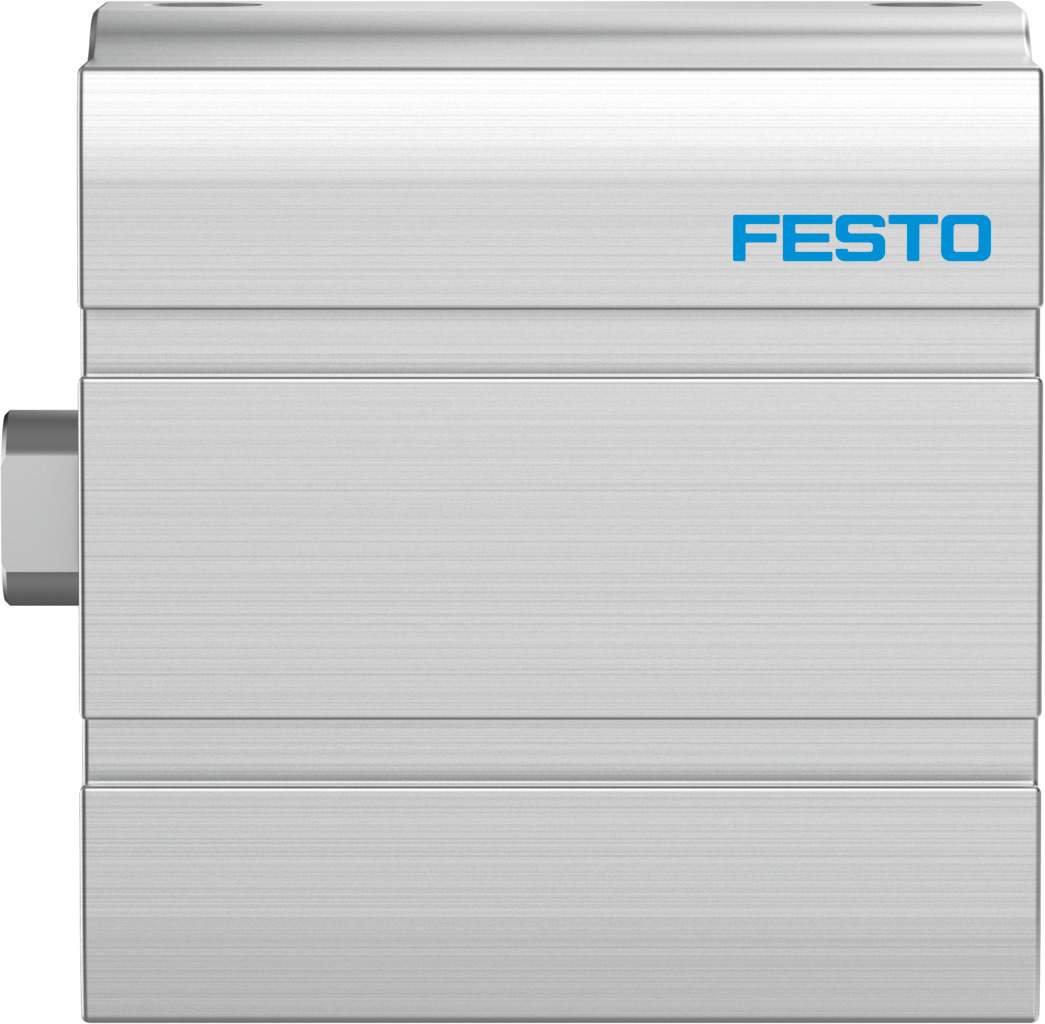

Double-acting compact cylinder Ø 63 mm stroke 40 mm ADN-S-63-40-I-P-A - Festo 5132670

At 6 bar the Festo ADN-S-63-40-I-P-A generates 1870 N on the advance stroke and 1750 N on the return stroke, with a Ø 63 mm piston and 40 mm stroke. The load is coupled via the piston rod with female thread, compressed air is supplied via G1/8. It is rated for 0.4 to 10 bar operating pressure at ambient temperatures of 0 to 80 °C.

Key benefits

• 1870 N advance and 1750 N return force at 6 bar
• Elastic end-position cushioning P at both ends, up to 1.3 J impact energy
• Piston rod with female thread made of high-alloy stainless steel
• Position detection via proximity switches
• Operating pressure 0.4 to 10 bar
• LABS (PWIS) conformity to VDMA24364-B2-L

Typical applications

In handling and fixture construction the cylinder moves parts over 40 mm, for example as an ejector, pusher or lifting unit. The Ø 63 mm cylinder runs on compressed air to ISO 8573-1:2010 [7:4:4] and can be installed in any orientation.
