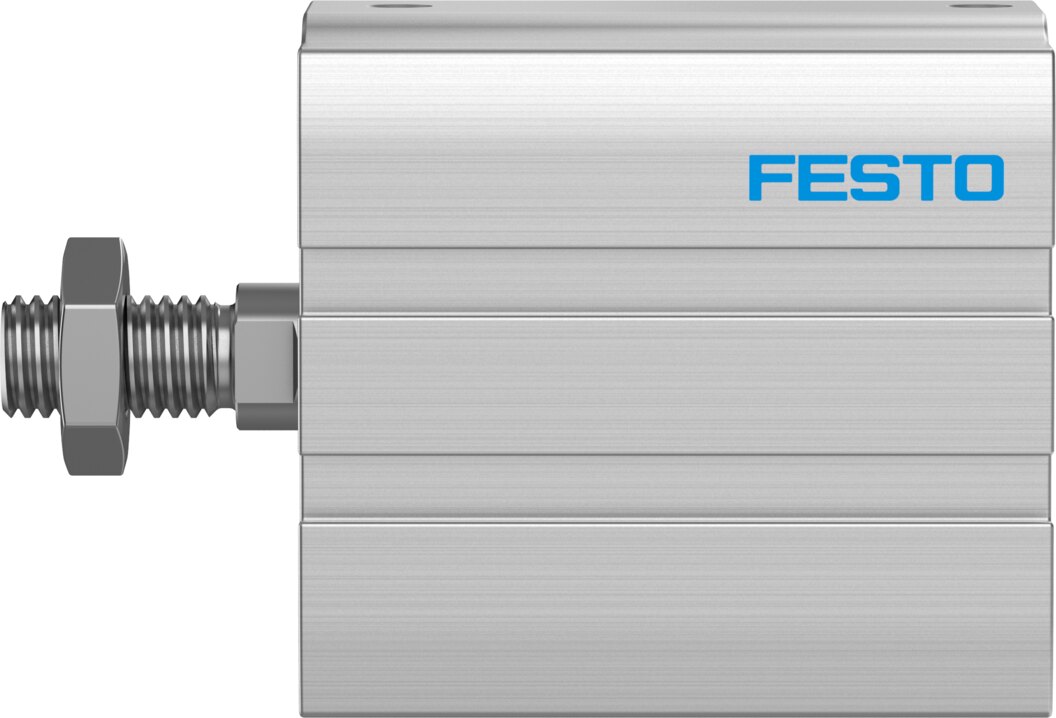

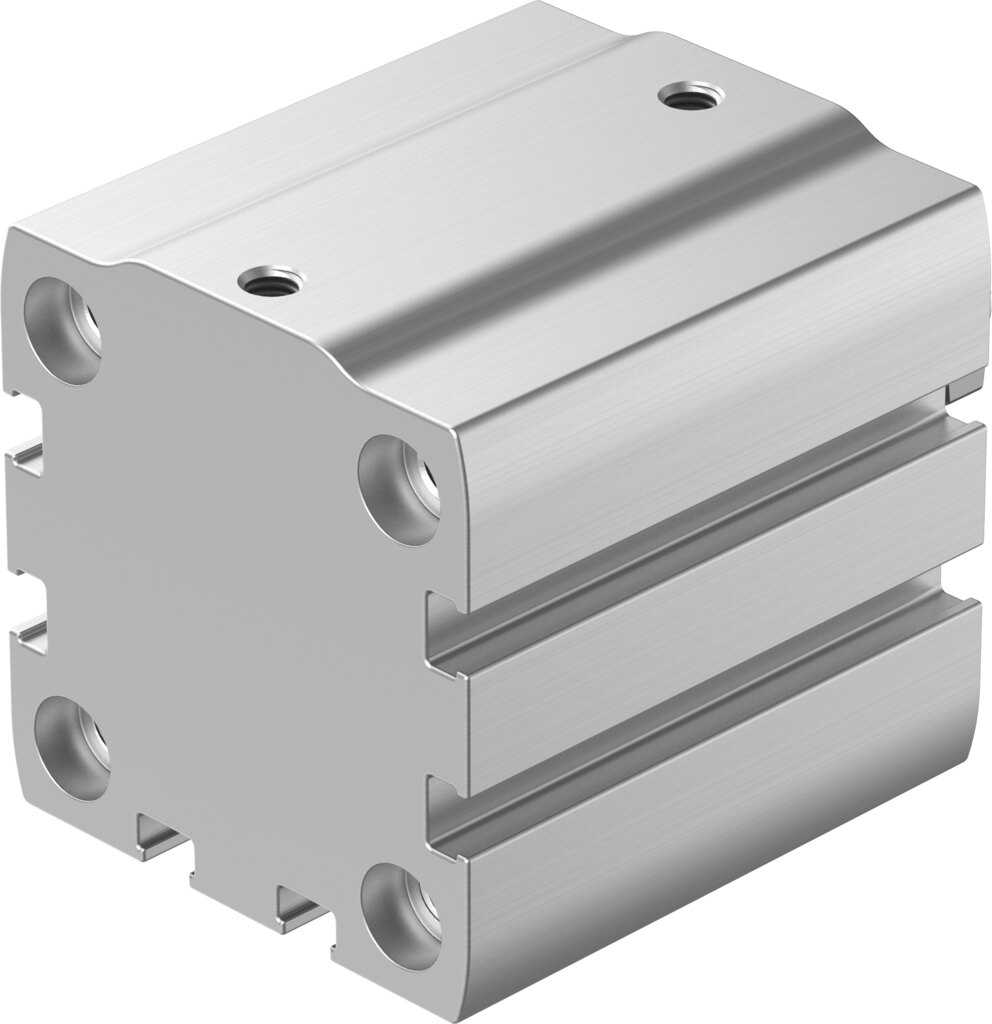

Compact cylinder double-acting Ø 40 mm stroke 30 mm ADN-S-40-30-A-P-A - Festo 8092061

40 mm piston, 30 mm stroke, 754 N advance and 686 N return force at 6 bar: the double-acting compact cylinder ADN-S-40-30-A-P-A fits fixtures where a standard cylinder is too long.

Benefits

• Easy sizing: 754 N forward and 686 N back at 6 bar according to Festo
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 0.7 J
• Position sensing: prepared for proximity switches, port M5
• Wide pressure range: 0.6 to 10 bar operating pressure, 0 to 80 °C ambient temperature
• Corrosion resistance class CRC 1: piston rod in high-alloy stainless steel
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B2-L

Applications

On assembly lines the ADN-S-40-30-A-P-A with a 40 mm diameter handles clamping, stopping and positioning tasks. Mounting via through-holes, female threads or Festo accessories, attachments go on the piston rod with male thread of the ADN-S-40-30-A-P-A. For sizing, Festo states 304 g basic weight and 62 g moving mass at 0 mm stroke, plus 45 g and 9 g respectively per 10 mm stroke.
