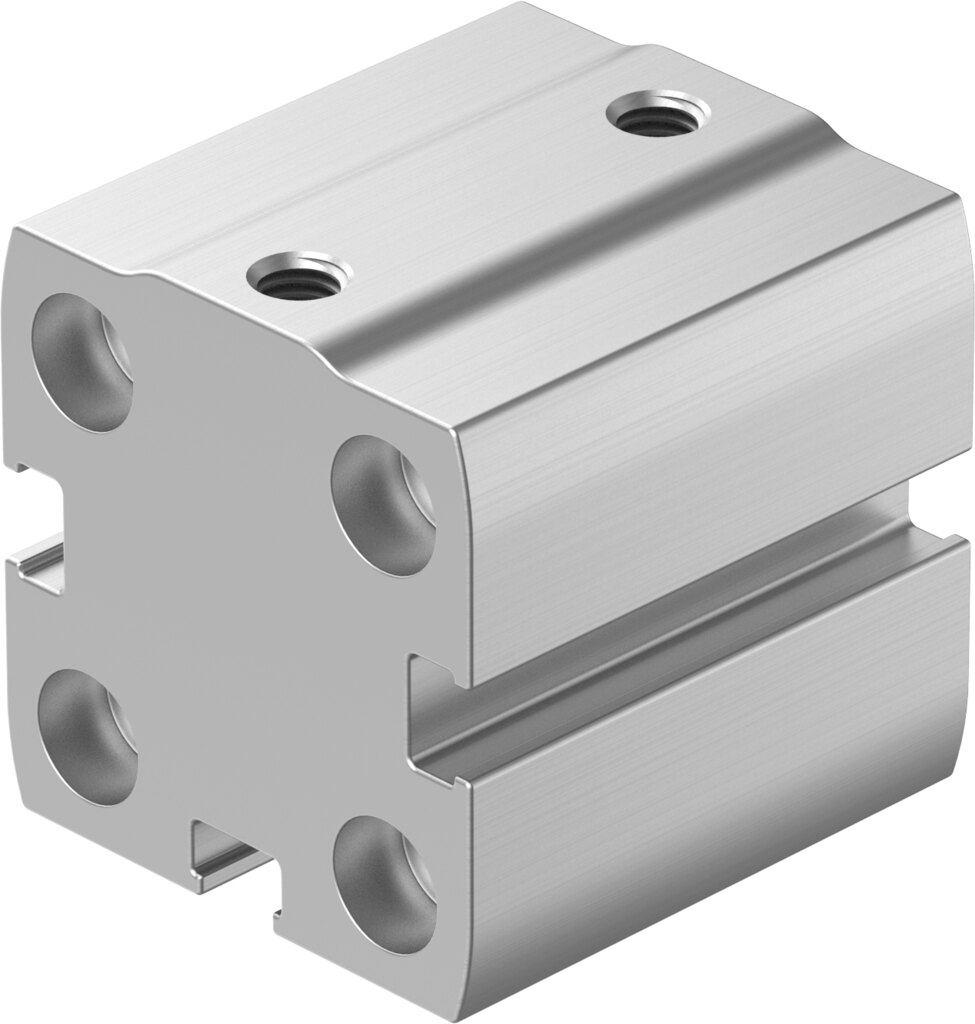

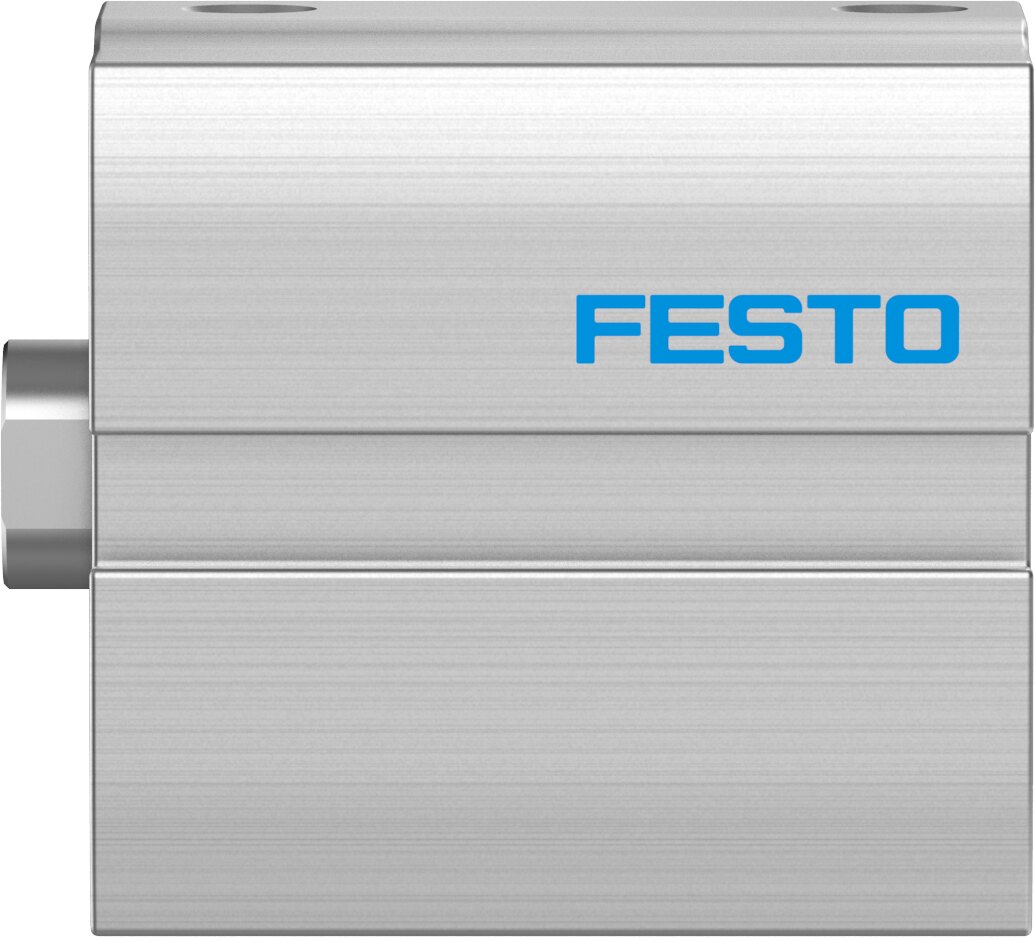

Compact cylinder double-acting Ø 20 mm stroke 5 mm ADN-S-20-5-I-P-A-F1A - Festo 8142756

20 mm piston, 5 mm stroke, 188 N advance and 141 N return force at 6 bar: the double-acting compact cylinder ADN-S-20-5-I-P-A-F1A fits fixtures where a standard cylinder is too long.

Benefits at a glance

• Double-acting: 188 N on advance, 141 N on return at 6 bar
• Quiet stop: elastic cushioning at both ends absorbs 0.2 J in the end positions
• For battery manufacturing: F1A version with reduced Cu/Zn/Ni values
• Position sensing: prepared for proximity switches, port M5
• Flexible use: operating pressure 0.6 to 10 bar, any mounting position
• Corrosion resistance class CRC 2: piston rod in high-alloy stainless steel

Applications

Typical tasks for the ADN-S-20-5-I-P-A-F1A are clamping, aligning, stopping and pushing out in assembly and test stations. The short 5 mm stroke keeps cycle times short and air consumption low. The 20 mm cylinder is fastened via through-holes or female threads in the housing, the piston rod has a female thread. For sizing, Festo states 65 g basic weight and 18 g moving mass at 0 mm stroke, plus 26 g and 6 g respectively per 10 mm stroke.
