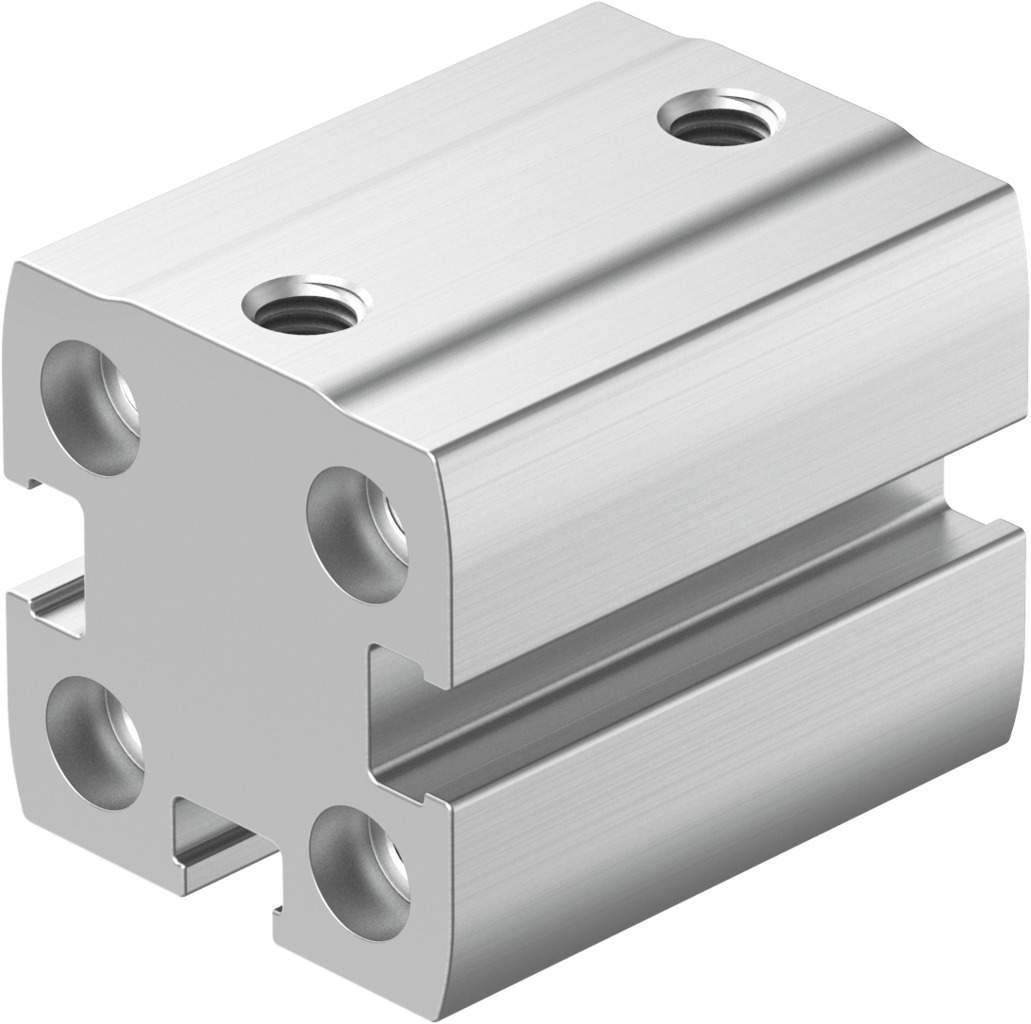

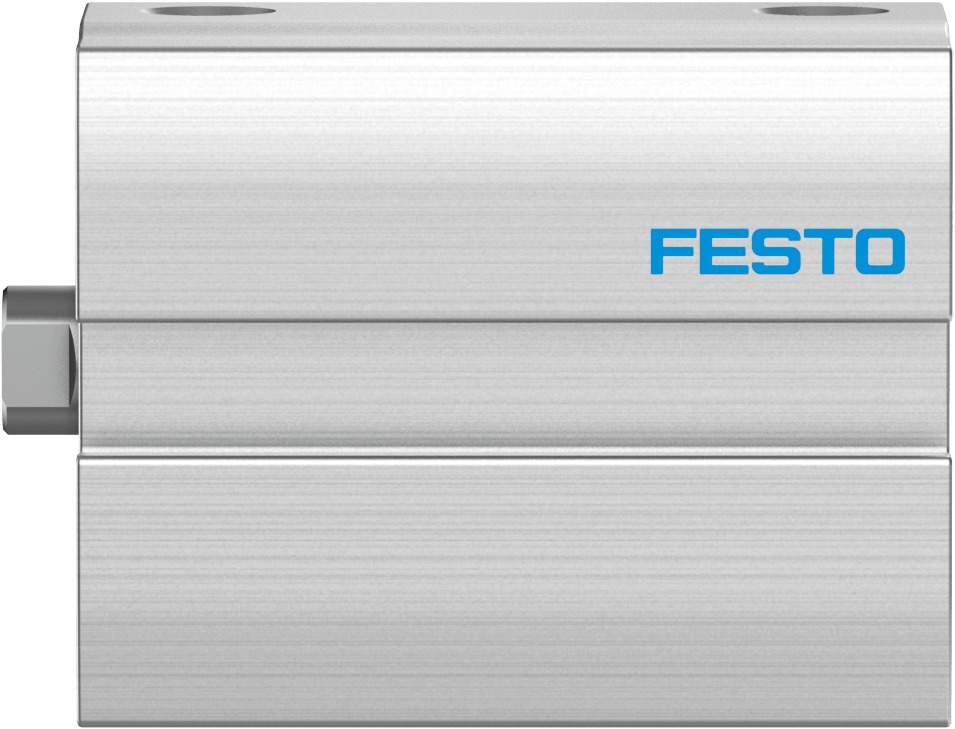

Compact cylinder double-acting Ø 12 mm stroke 15 mm ADN-S-12-15-I-P-A-F1A - Festo 8142564

Where space in the stroke direction is short, the ADN-S-12-15-I-P-A-F1A fits in: double-acting compact cylinder, 12 mm piston, 15 mm stroke, 68 N advance and 51 N return force at 6 bar.

Benefits

• Double-acting: 68 N on advance, 51 N on return at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 0.07 J
• For battery manufacturing: F1A version with reduced Cu/Zn/Ni values
• Position sensing: prepared for proximity switches, port M5
• Wide pressure range: 1 to 10 bar operating pressure, 0 to 80 °C ambient temperature
• Corrosion resistance class CRC 2: piston rod in high-alloy stainless steel

Applications

With a 12 mm piston, the ADN-S-12-15-I-P-A-F1A suits small-parts handling, electronics assembly and light stoppers. The 12 mm cylinder is fastened via through-holes or female threads in the housing, the piston rod has a female thread. For sizing, Festo states 33 g basic weight and 6 g moving mass at 0 mm stroke, plus 15 g and 2 g respectively per 10 mm stroke.
