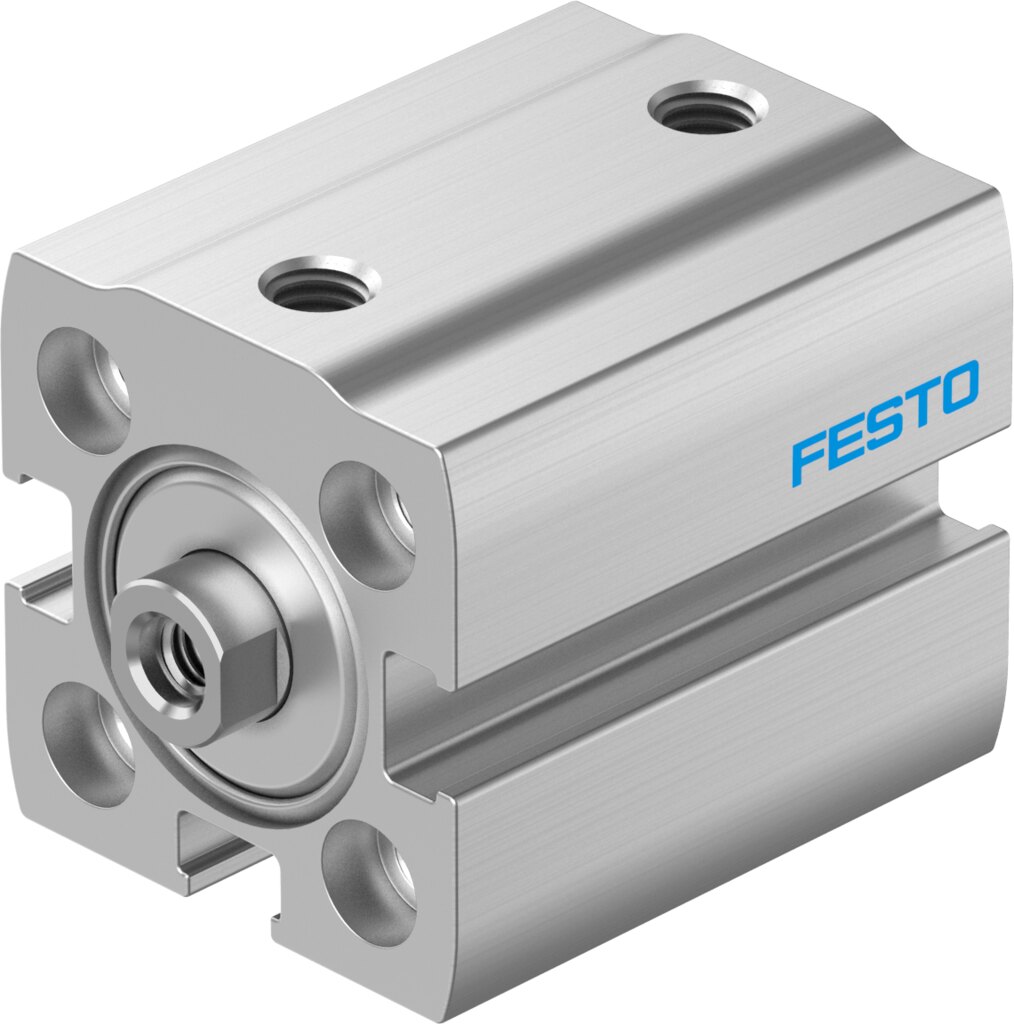

Compact cylinder double-acting Ø 40 mm stroke 6 mm ADN-40-6-A-P-A - Festo 610160

The Festo ADN-40-6-A-P-A is a double-acting compact cylinder with a 40 mm piston and 6 mm stroke. At 6 bar it reaches 754 N advance and 686 N return force. The data below is derived from the type code ADN-40-6-A-P-A and Festo data of the ADN series with a 40 mm piston.

Benefits

• Force in both directions: theoretical 754 N advance and 686 N return at 6 bar
• Quiet stop: elastic cushioning at both ends absorbs 0.7 J in the end positions
• Sensor-ready: end positions detectable via proximity switch, air port G1/8
• Flexible use: operating pressure 0.6 to 10 bar
• Attachment: piston rod with male thread, 40 mm piston

Applications

Typical tasks for the ADN-40-6-A-P-A are clamping, aligning, stopping and pushing out in assembly and test stations. The short 6 mm stroke keeps cycle times short and air consumption low.
