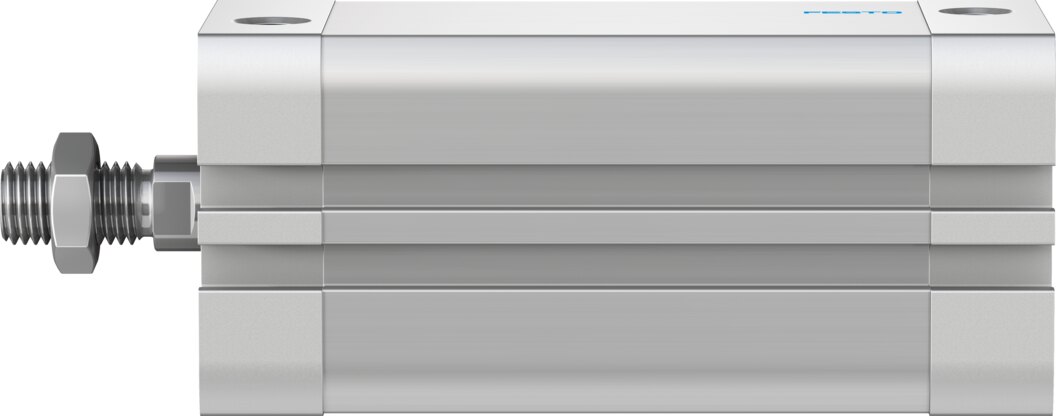

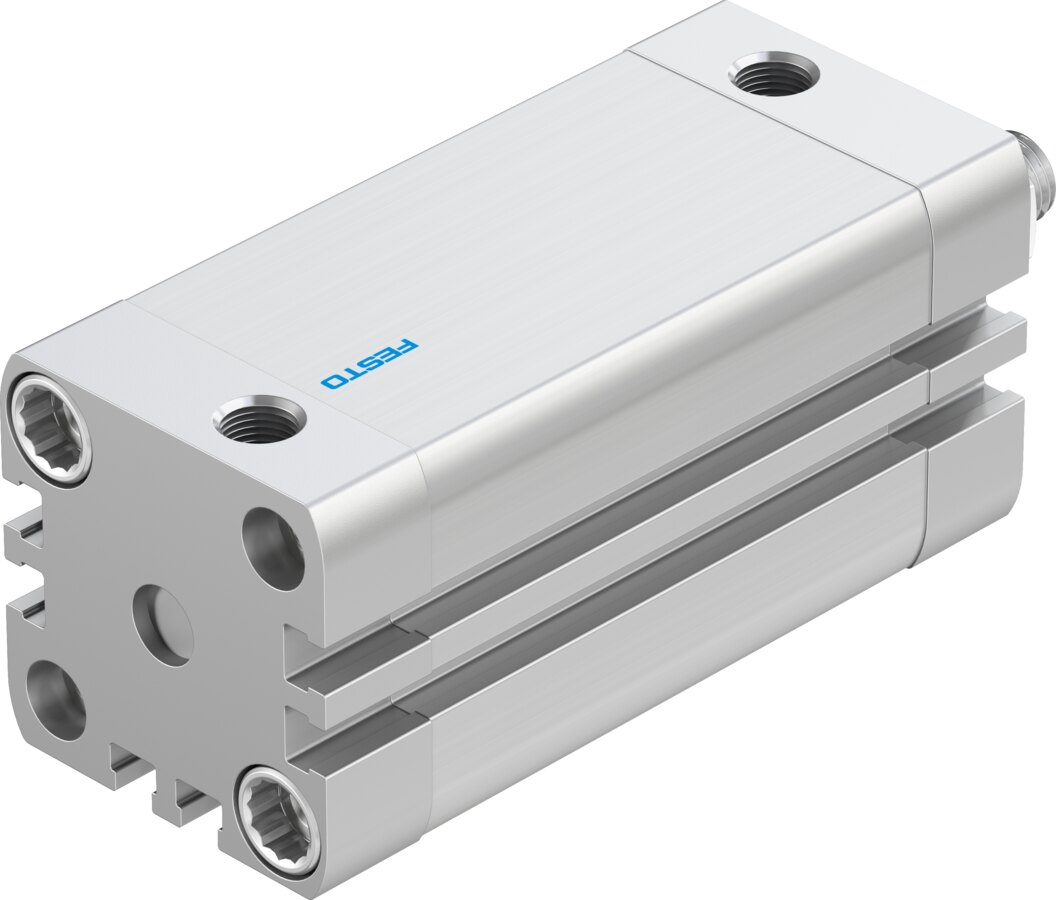

Double-acting compact cylinder Ø 32 mm stroke 70 mm ADN-32-70-A-P-A - Festo 564092

The ISO 21287 compact cylinder ADN-32-70-A-P-A provides 483 N advance and 415 N retracting force at 6 bar while its Ø 32 mm piston and 70 mm stroke take up little space. The load is coupled via the piston rod with male thread M10x1.25, compressed air is supplied via G1/8. End-position sensing via proximity switches is provided.

Benefits at a glance

• 483 N advance and 415 N return force at 6 bar
• Cushioning P: elastic rings at both ends for 0.4 J
• Piston rod with male thread M10x1.25 made of high-alloy steel
• End positions can be sensed with proximity switches
• Operating pressure 0.6 to 10 bar
• Mounting dimensions to ISO 21287, interchangeable with other compact cylinders to this standard

Use

Typical tasks are ejecting, shifting and positioning workpieces over 70 mm, wherever a standard cylinder would be too long. Installed in any orientation, the ADN-32-70-A-P-A runs on compressed air to ISO 8573-1:2010 [7:4:4].
