Double-acting compact cylinder Ø 32 mm stroke 180 mm ADN-32-180-A-P-A - Festo 576647

Ø 32 mm piston, 180 mm stroke: the double-acting compact cylinder ADN-32-180-A-P-A from the ADN series is the Festo version with part number 576647. The letter A after the cushioning code in type ADN-32-180-A-P-A stands for position detection via proximity switches. Compressed air drives the piston both ways, so advance and return over 180 mm are powered.

Benefits at a glance

• Piston Ø 32 mm, stroke 180 mm
• Elastic end-position cushioning P at both ends

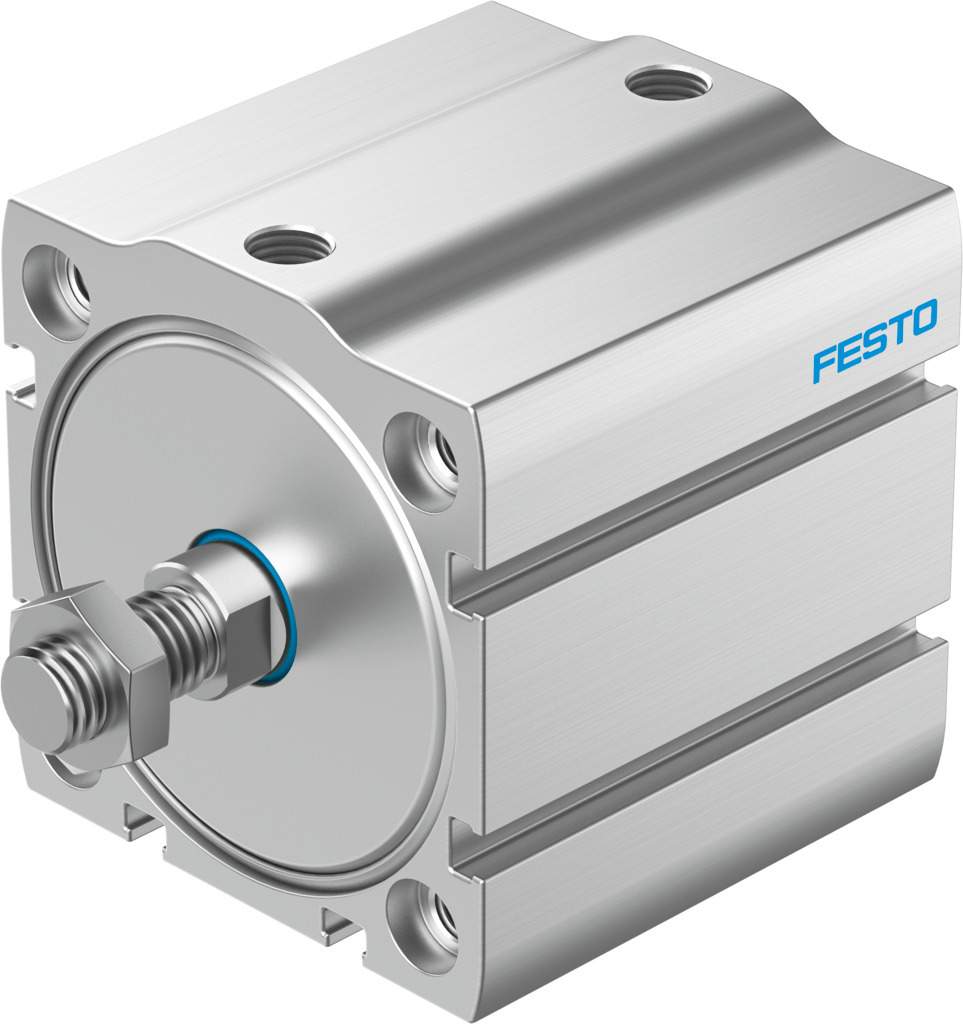

• Piston rod with male thread
• Position detection via proximity switches
• Double-acting: force in both directions
• Weight 0.75 kg

Use

In handling and fixture construction the cylinder moves parts over 180 mm, for example as an ejector, pusher or lifting unit.
