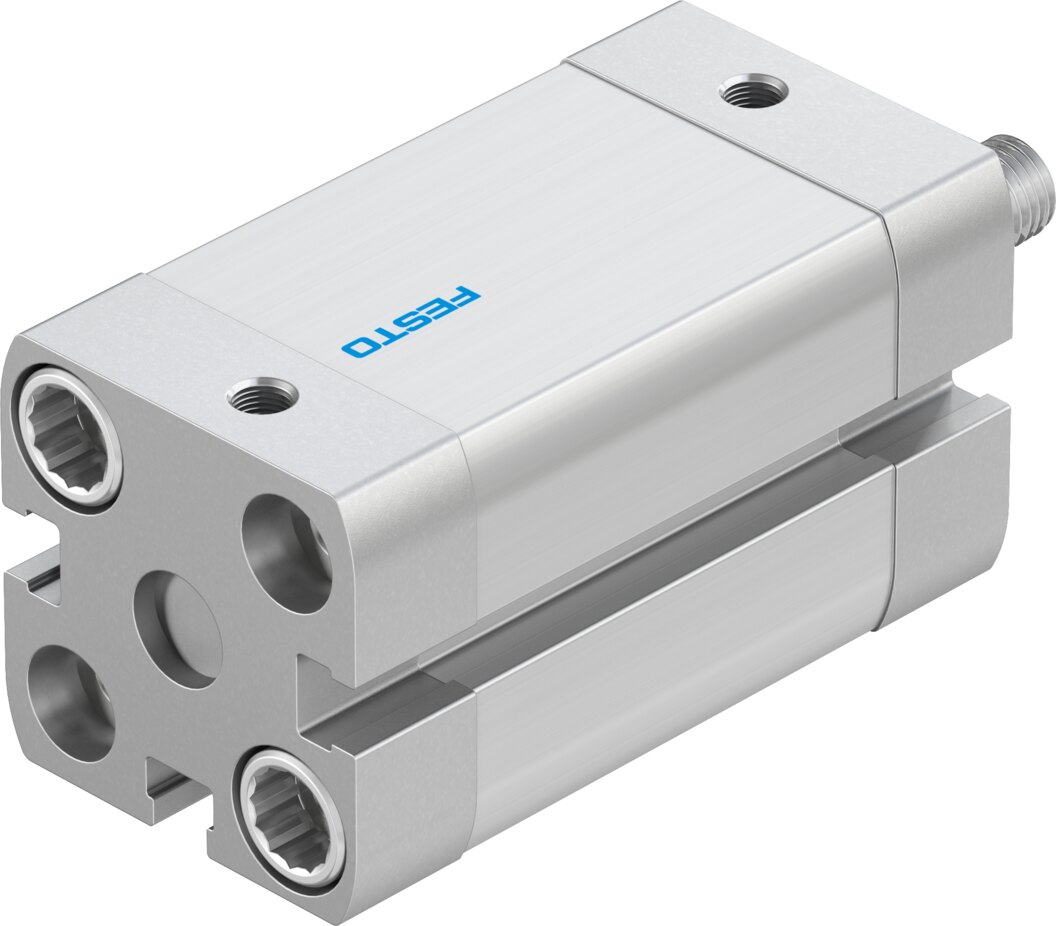

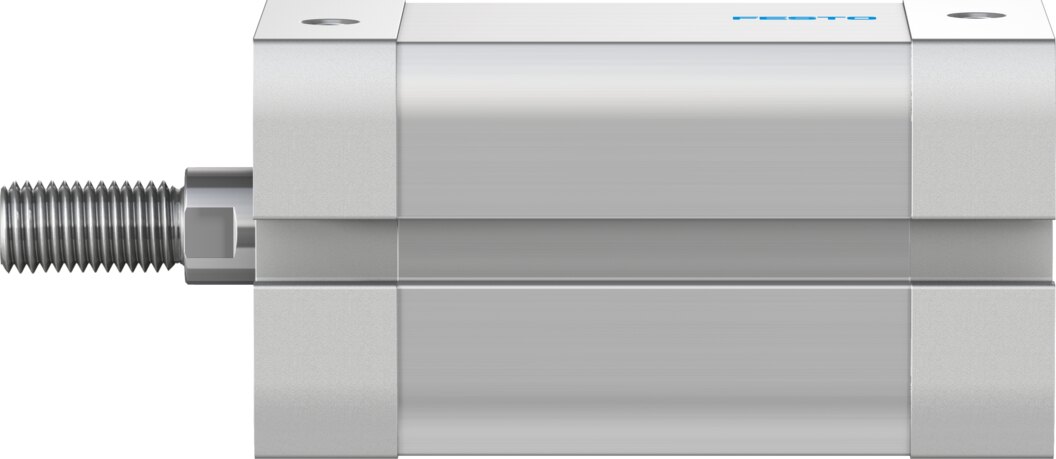

Double-acting compact cylinder Ø 20 mm stroke 80 mm ADN-20-80-I-P-A-S6 - Festo 593665

With an 80 mm stroke and a Ø 20 mm piston, the ADN compact cylinder ADN-20-80-I-P-A-S6 covers short linear movements. According to type code ADN-20-80-I-P-A-S6, the cylinder is prepared for end-position sensing with proximity switches. Compressed air drives the piston both ways, so advance and return over 80 mm are powered.

Key benefits

• Piston Ø 20 mm, stroke 80 mm
• Elastic end-position cushioning P at both ends
• Piston rod with female thread
• Position detection via proximity switches
• Double-acting: force in both directions

Typical applications

Typical tasks are ejecting, shifting and positioning workpieces over 80 mm, wherever a standard cylinder would be too long.
