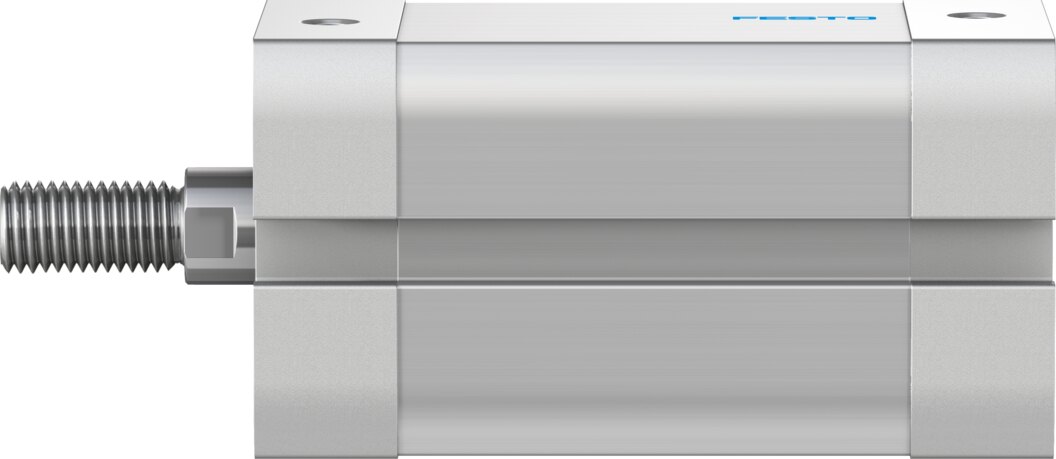

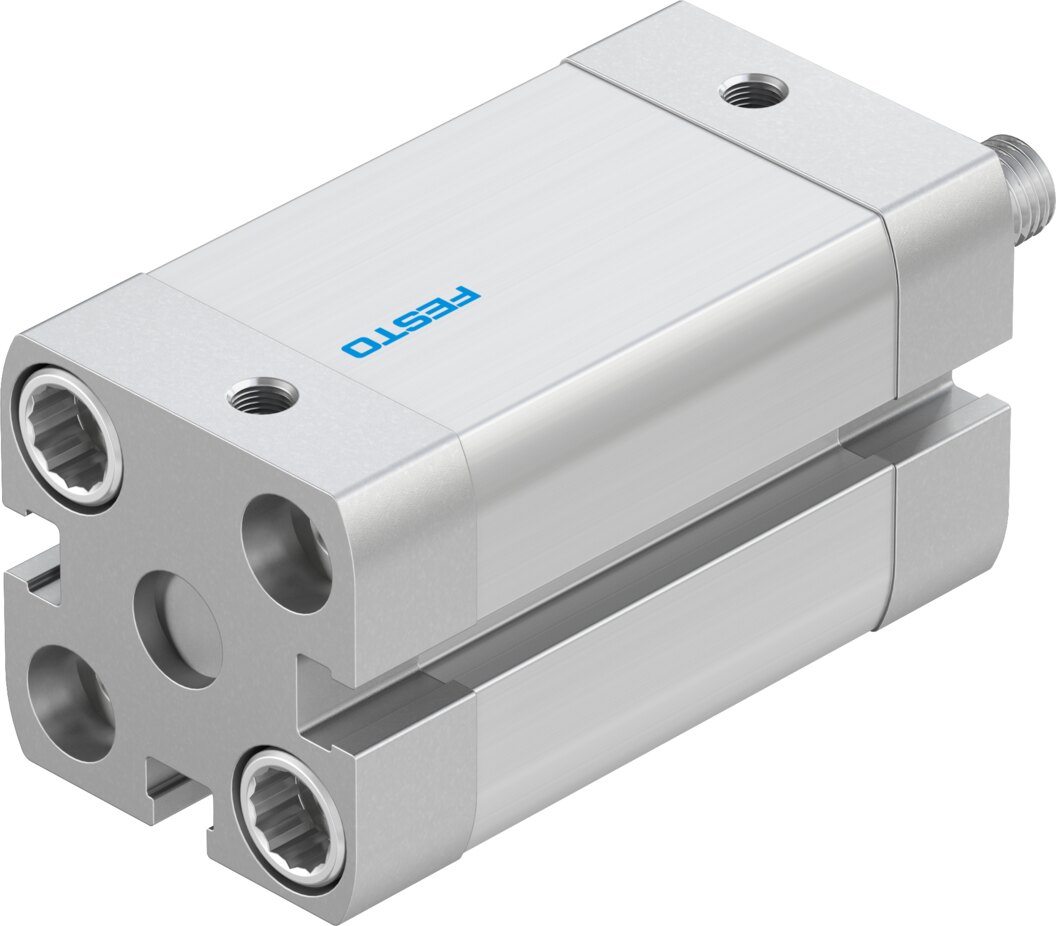

Double-acting compact cylinder Ø 20 mm stroke 80 mm ADN-20-80-A-P-A - Festo 578579

The Festo compact cylinder ADN-20-80-A-P-A moves its load over an 80 mm stroke, the piston measures Ø 20 mm. According to type code ADN-20-80-A-P-A, the cylinder is prepared for end-position sensing with proximity switches. Being double-acting, the Ø 20 mm piston is driven by compressed air in both directions.

Benefits at a glance

• Piston Ø 20 mm, stroke 80 mm
• Cushioning P: elastic rings at both ends
• Piston rod with male thread
• Position detection via proximity switches
• Double-acting: force in both directions
• Weight 0.29 kg

Use

Typical tasks are ejecting, shifting and positioning workpieces over 80 mm, wherever a standard cylinder would be too long.
