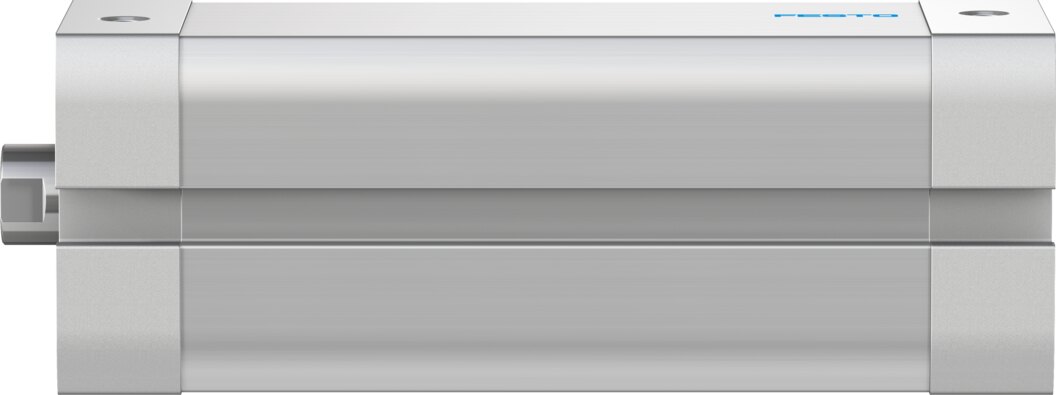

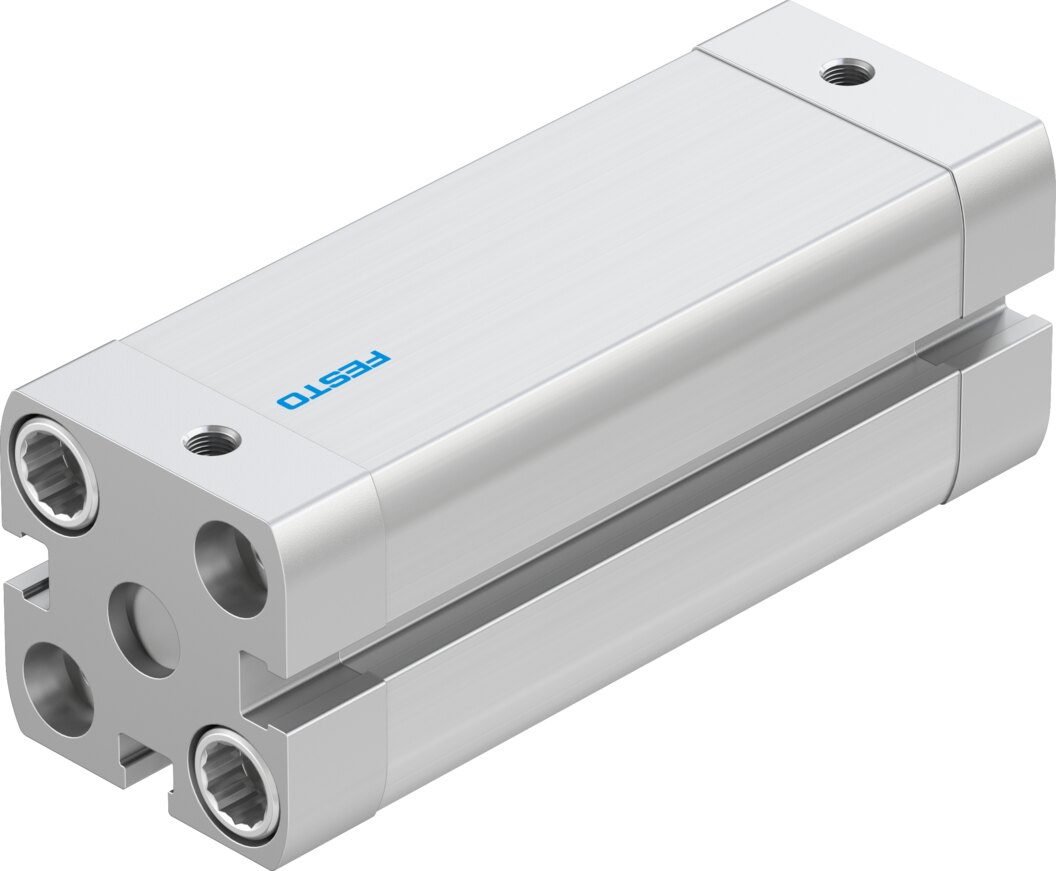

Compact cylinder double-acting Ø 20 mm stroke 70 mm ADN-20-70-I-P-A - Festo 8178862

The Festo ADN-20-70-I-P-A is a double-acting compact cylinder with a 20 mm piston and 70 mm stroke. At 6 bar it reaches 188 N advance and 141 N return force.

Key benefits

• Easy sizing: 188 N forward and 141 N back at 6 bar according to Festo
• Quiet stop: elastic cushioning at both ends absorbs 0.2 J in the end positions
• Position sensing: prepared for proximity switches, port M5
• Wide pressure range: 0.6 to 10 bar operating pressure, -20 to 80 °C ambient temperature
• Corrosion resistance class CRC 2: piston rod in high-alloy steel, thread M6
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B1/B2-L

Applications

Typical tasks for the ADN-20-70-I-P-A are clamping, aligning, stopping and pushing out in assembly and test stations. The 20 mm cylinder is fastened via through-holes, female threads or Festo accessories, the piston rod has a female thread M6. According to Festo the product weight is 273 g.
