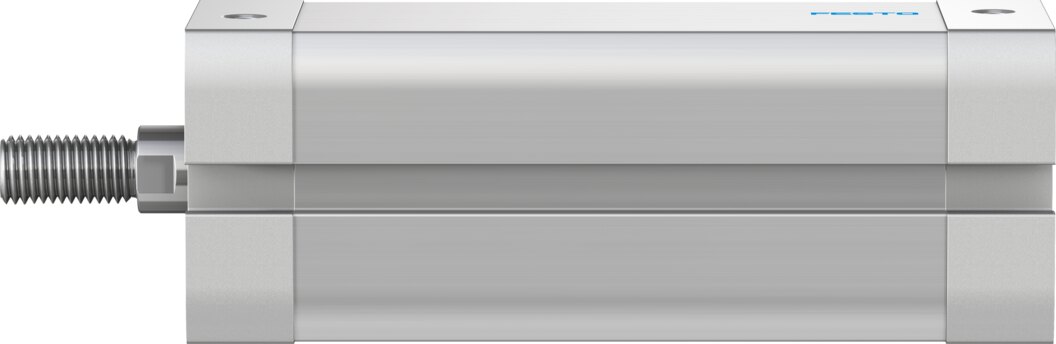

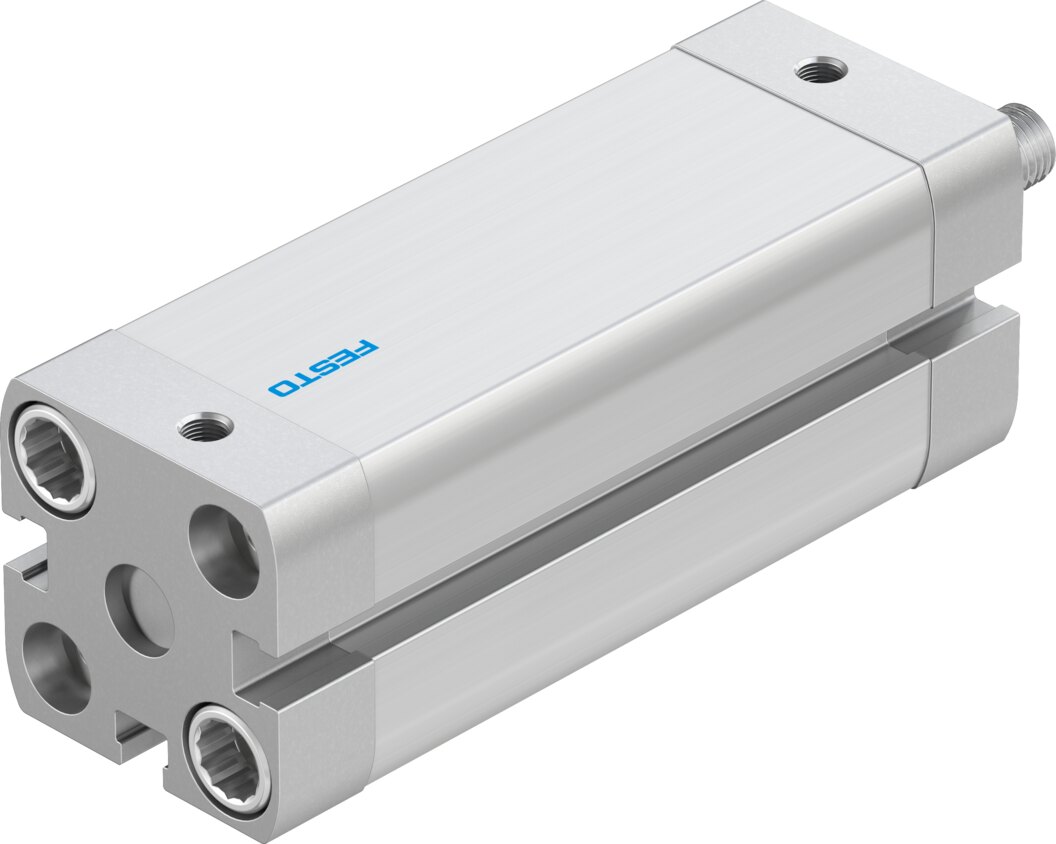

Double-acting compact cylinder Ø 20 mm stroke 70 mm ADN-20-70-A-P-A - Festo 595275

The ISO 21287 compact cylinder ADN-20-70-A-P-A provides 188 N advance and 141 N retracting force at 6 bar while its Ø 20 mm piston and 70 mm stroke take up little space. End-position sensing via proximity switches is provided. The ADN-20-70-A-P-A operates in a pressure range of 0.6 to 10 bar and at -20 to 80 °C.

Key benefits

• 188 N advance and 141 N return force at 6 bar
• Elastic end-position cushioning P at both ends, up to 0.2 J impact energy
• Piston rod with male thread M8 made of high-alloy steel
• End positions can be sensed with proximity switches
• Pressure range 0.6 to 10 bar
• Dimensions to ISO 21287

Typical applications

The ADN-20-70-A-P-A handles pushing, lifting and ejecting movements over 70 mm in assembly systems, packaging machines and feeding equipment. The medium is compressed air to ISO 8573-1:2010 [7:4:4], and the 70 mm stroke can be used in any mounting position.
