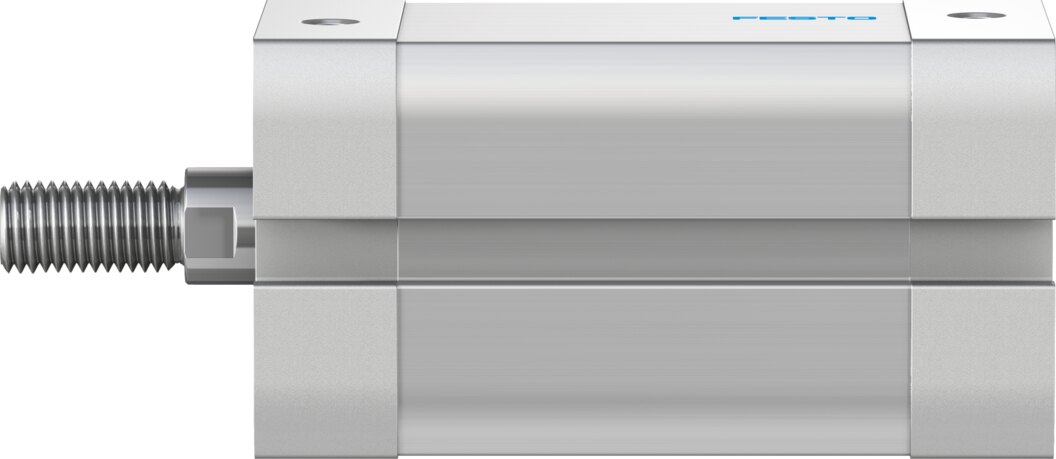

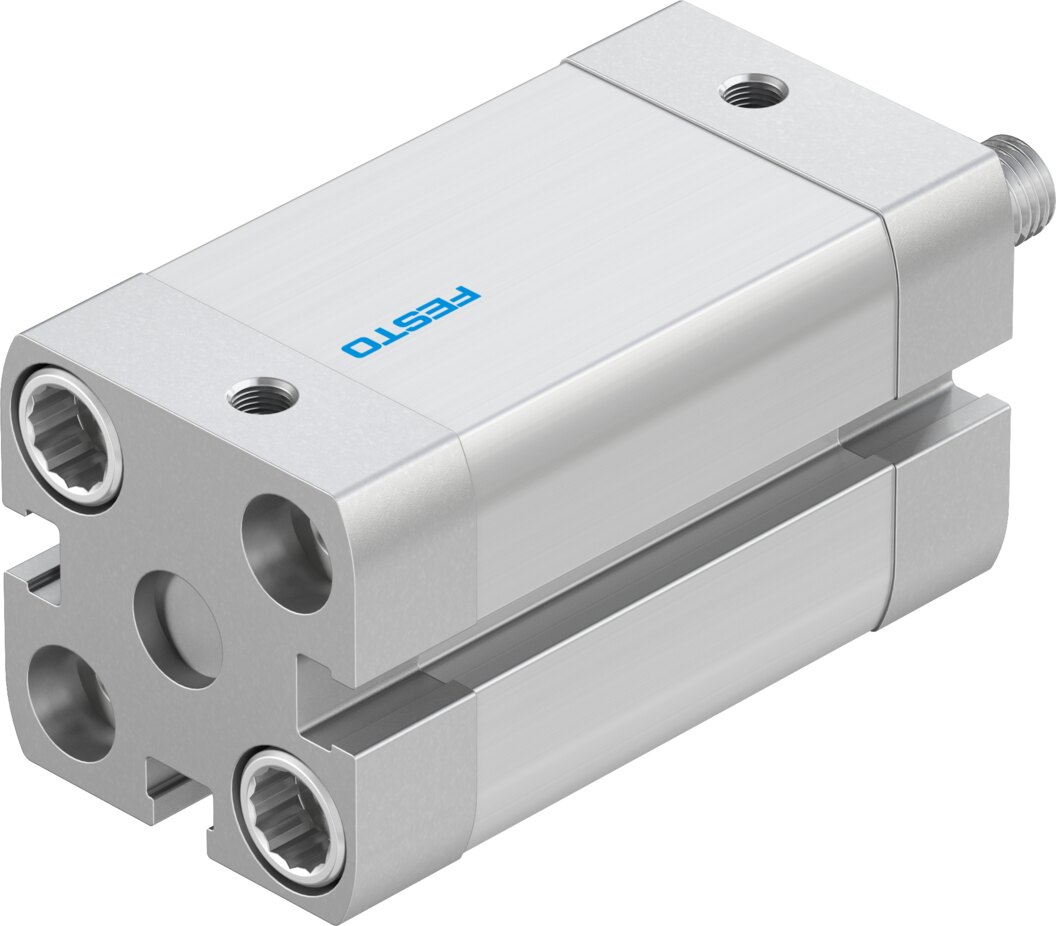

Compact cylinder double-acting Ø 20 mm stroke 35 mm ADN-20-35-A-P-A - Festo 8178859

20 mm piston, 35 mm stroke, 188 N advance and 141 N return force at 6 bar: the double-acting compact cylinder ADN-20-35-A-P-A fits fixtures where a standard cylinder is too long.

Key benefits

• Force in both directions: theoretical 188 N advance and 141 N return at 6 bar
• Gentle end positions: elastic cushioning rings at both ends, impact energy up to 0.2 J
• Sensor-ready: end positions detectable via proximity switch, air port M5
• Wide pressure range: 0.6 to 10 bar operating pressure, -20 to 80 °C ambient temperature
• Corrosion resistance class CRC 2: piston rod in high-alloy steel, thread M8
• Cleanroom and paint shops: class 5 to ISO 14644-1, LABS (PWIS) conformity VDMA24364-B1/B2-L

Applications

On assembly lines the ADN-20-35-A-P-A with a 20 mm diameter handles clamping, stopping and positioning tasks. Mount the ADN-20-35-A-P-A via through-holes, female threads or Festo accessories. According to Festo the product weight is 205 g.
