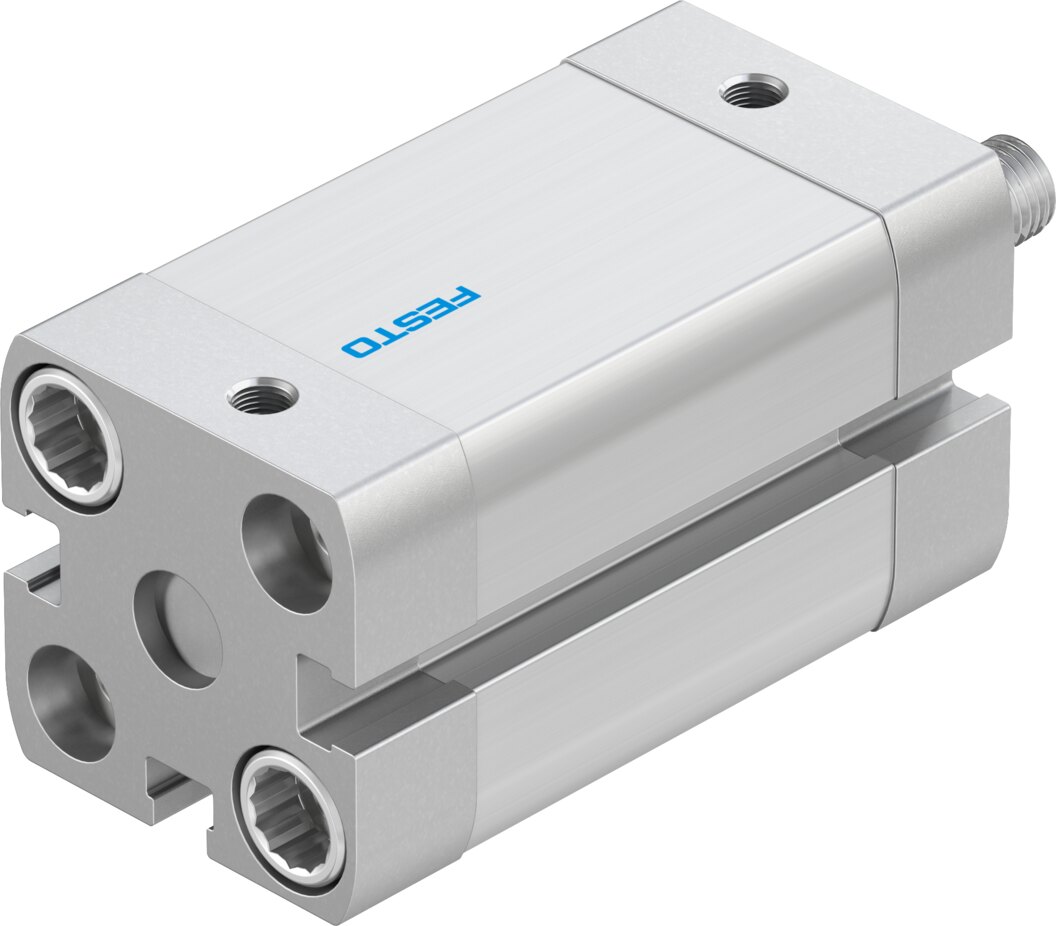

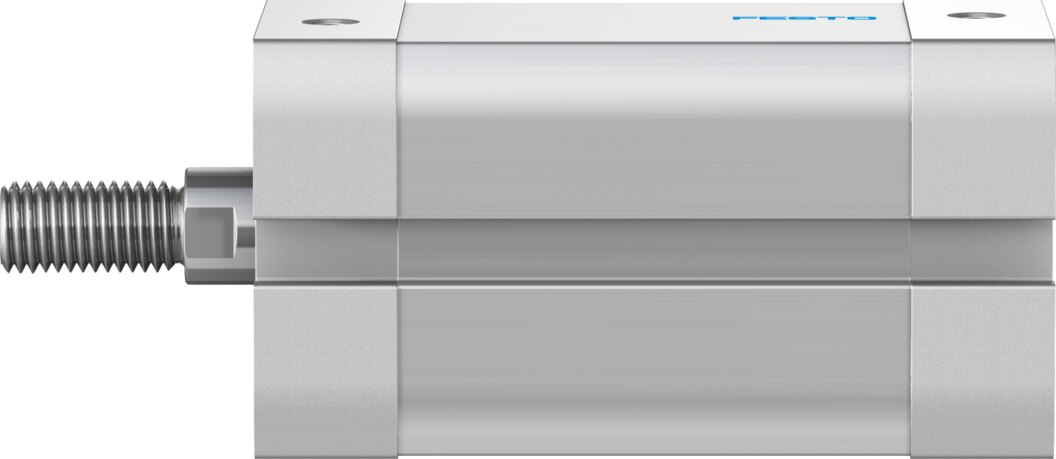

Double-acting compact cylinder Ø 20 mm stroke 175 mm ADN-20-175-I-P-A-Q-TL - Festo 588882

Ø 20 mm piston, 175 mm stroke: the double-acting compact cylinder ADN-20-175-I-P-A-Q-TL from the ADN series is the Festo version with part number 588882. According to type code ADN-20-175-I-P-A-Q-TL, the cylinder is prepared for end-position sensing with proximity switches. Compressed air drives the piston both ways, so advance and return over 175 mm are powered.

Key benefits

• Piston Ø 20 mm, stroke 175 mm
• Cushioning P: elastic rings at both ends
• Piston rod with female thread
• End positions can be sensed with proximity switches
• Double-acting: force in both directions
• Weight 0.6 kg

Typical applications

Typical tasks are ejecting, shifting and positioning workpieces over 175 mm, wherever a standard cylinder would be too long.
