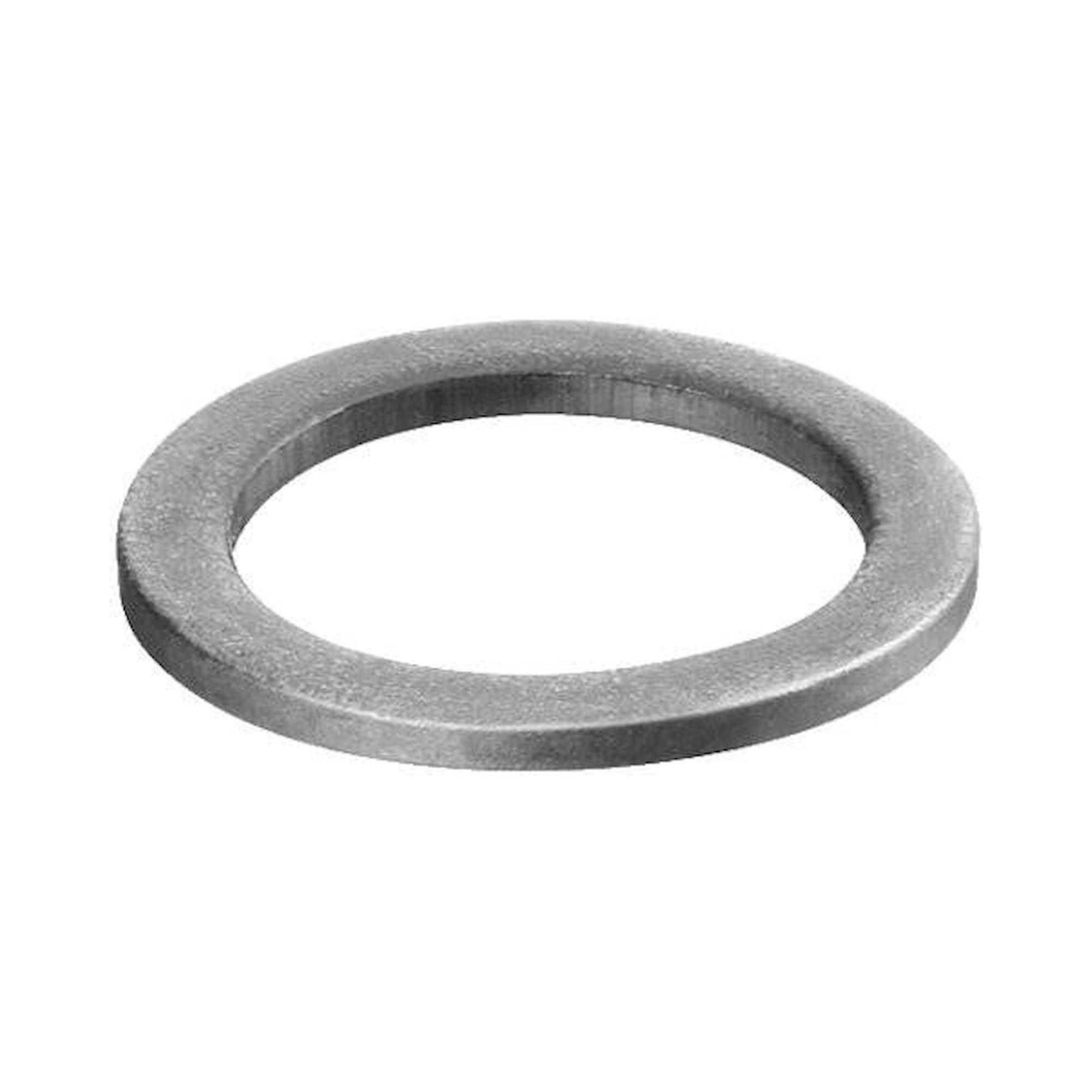

Sealing ring DIN 7603 form A 14 x 18 mm, copper, for G 1/4 - Aventics 8661140000
For sealing threaded ports G 1/4 up to 15 bar: Aventics sealing ring G 1/4. Material copper, permissible ambient temperature -20 to 150 °C. Dimensions 14 x 18 mm to DIN 7603 form A.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Sealing ring from the Aventics range. Key data (sealing ring G 1/4): working pressure -0.95 to 15 bar, ambient temperature -20 to 150 °C.
Key benefits
- Thread size: fits G 1/4
- Pressure range: -0.95 to 15 bar, for positive pressure and vacuum
- Dimensions: 14 x 18 mm according to designation
- Standard: DIN 7603 form A
- Temperature: -20 to 150 °C ambient
- Material: copper
Fields of application
Sealing threaded ports of valves, service units and manifolds in compressed air systems.
Technical data
| Feature | Value |
|---|---|
| Port G | G 1/4 |
| Min. working pressure | -0.95 bar |
| Max. working pressure | 15 bar |
| Min. ambient temperature | -20 °C |
| Max. ambient temperature | 150 °C |
| Material | Copper |
| Dimensions | 14 x 18 mm |
| Standard | DIN 7603 form A |
| Weight | 0.001 kg |
| Customs tariff number | 74122000 |
| Manufacturer | Aventics |
| Hersteller-Nr | 8661140000 |
| Zolltarifnummer | 74122000 |
| GPSR Herstellerdaten | AVENTICS GmbH, Ulmer Straße 4, DE-30880 Laatzen, aventics.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Germany |
| Thread | G 1/4 |
| Norm | DIN 7603 |
| Betriebsdruck max [bar] | 15 |
| Temperaturbereich | -20-150 °C |
| Temperature (max.) | 150 |
