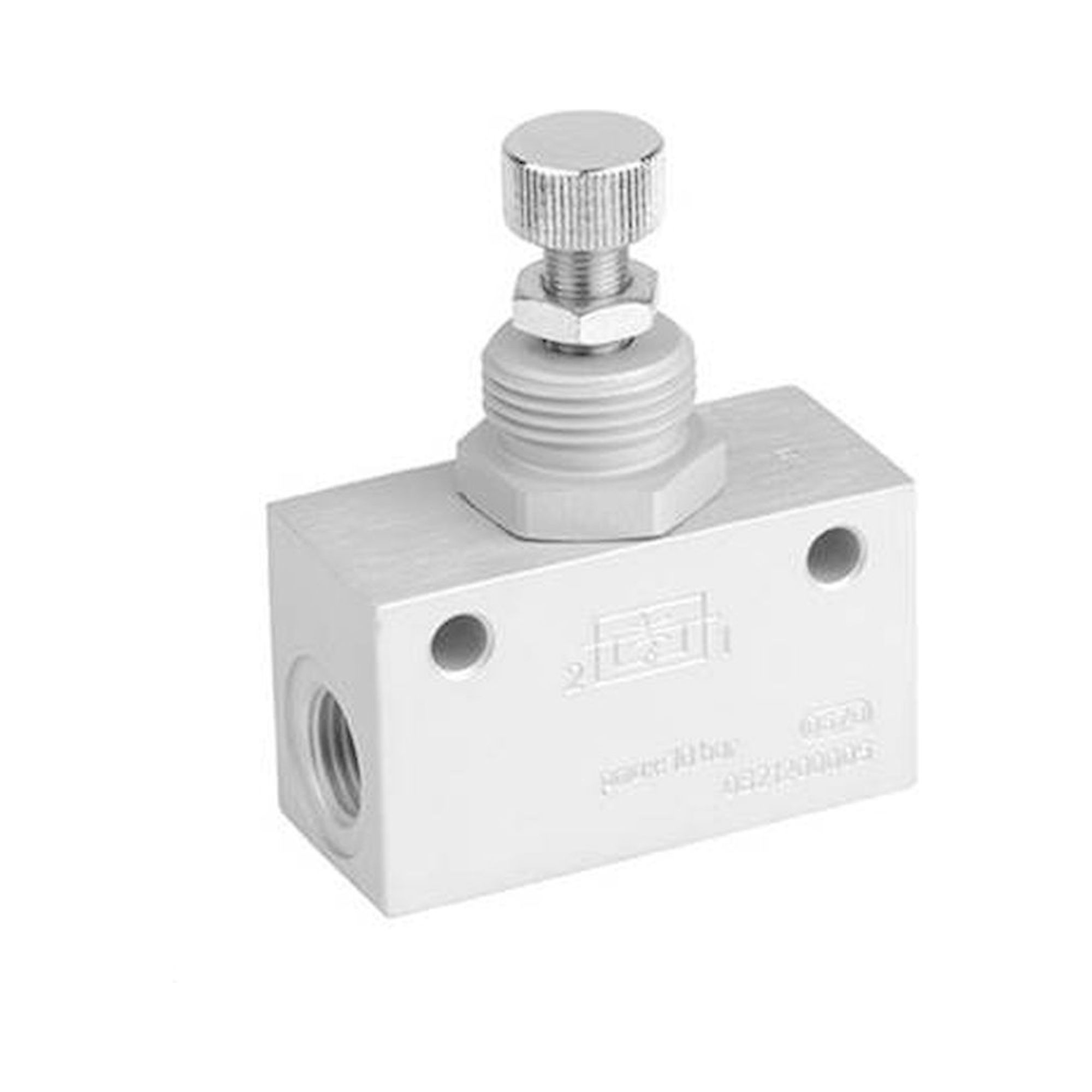

Check-choke valve CC01 series G 1/8, throttle bore Ø 2 mm, Qn 130 l/min, up to 10 bar - Aventics 0821200008
The Aventics check-choke valve 0821200008 throttles the air flow to the actuator precisely, throttling from 1 to 2 while the return flow passes freely. With G 1/8 ports it delivers 130 l/min nominal flow through a Ø 2 mm throttle bore, rated for 0.5 to 10 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
130 l/min nominal flow at G 1/8: the Aventics CC01 check-choke valve 0821200008 sets how fast an actuator extends or retracts.
Benefits
- Nominal flow of 130 l/min with G 1/8 ports
- Working pressure from 0.5 to 10 bar
- Suitable for 0 to 80 °C ambient and medium temperature
- Throttle bore Ø 2 mm for fine adjustment
- Aluminum housing, chrome-plated steel flow control screw
Application
It is typically installed in the cylinder supply line with G 1/8 thread and throttles from 1 to 2. The 0821200008 is approved for 0 to 80 °C.
Technical data
| Manufacturer | Aventics |
|---|---|
| Material number | 0821200008 |
| Product type | Check-choke valve |
| Series | CC01 |
| Working pressure | 0.5 to 10 bar |
| Ambient temperature | 0 to 80 °C |
| Medium temperature | 0 to 80 °C |
| Port 1 | G 1/8 |
| Port 2 | G 1/8 |
| Throttle bore Ø | 2 mm |
| Direction of throttle | 1 > 2 |
| Nominal flow Qn 1 to 2 | 130 l/min |
| Compressed air connection type 1 | Internal thread |
| Compressed air connection type 2 | Internal thread |
| Medium | Compressed air |
| Housing material | Aluminum |
| Seal material | NBR (acrylonitrile butadiene rubber) |
| Material flow control screw | Steel, chrome-plated |
| Weight | 0.04 kg |
| Hersteller-Nr | 0821200008 |
| Zolltarifnummer | 84813099 |
| GPSR Herstellerdaten | AVENTICS GmbH, Ulmer Straße 4, DE-30880 Laatzen, aventics.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Germany |
| Bauform | Drosselrückschlagventil |
| Thread | G 1/8 |
| Thread type | Internal thread |
| Medientemperatur [°C] | 0 bis 80 |
| Betriebsdruck max [bar] | 10 |
| Temperaturbereich | 0-80 °C |
