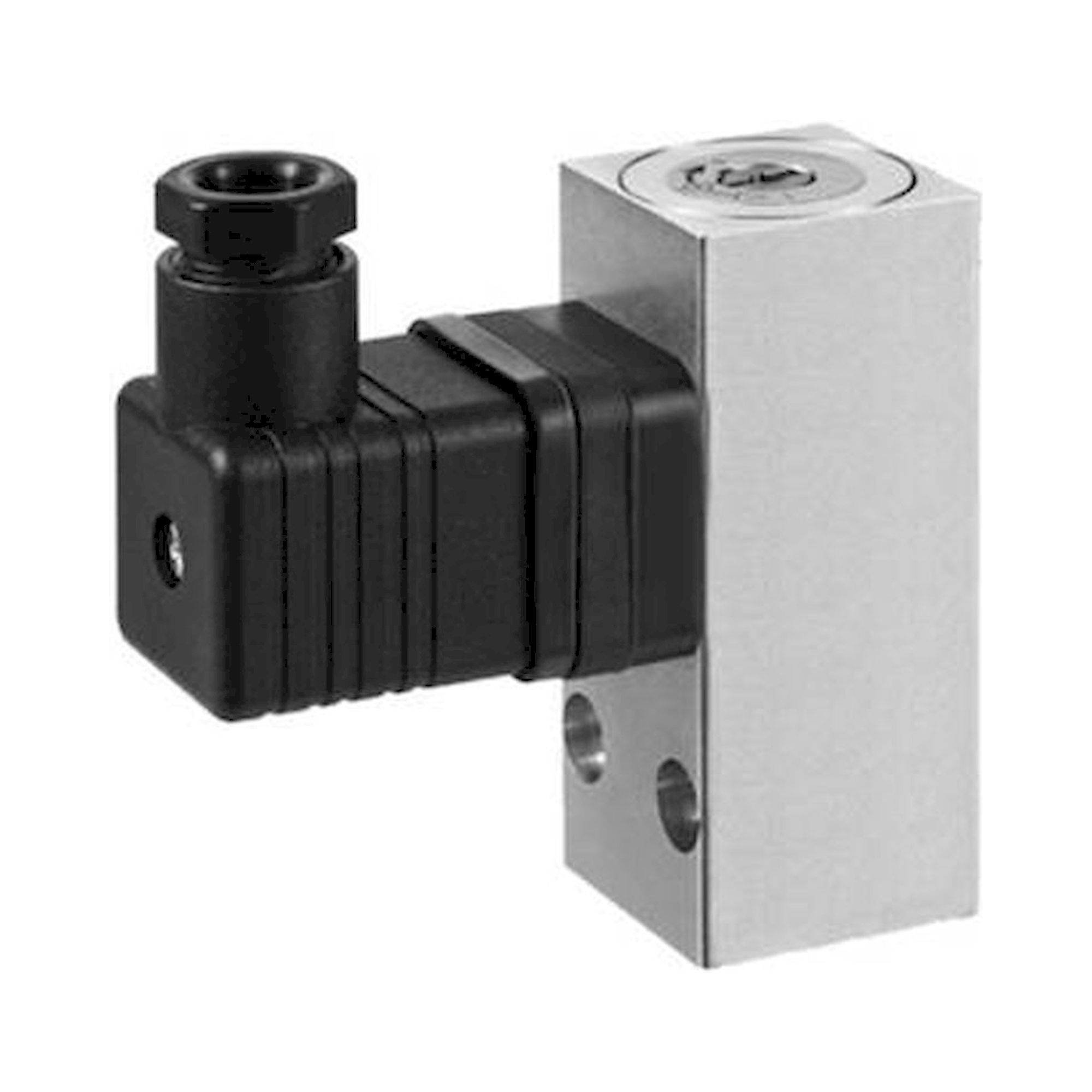

Mechanical pressure switch PM1-M3-G014-V09-000-DINA-CON, -0.9 to 0 bar, G 1/4, form A plug, with valve plug connector - Aventics R412010711
The mechanical pressure switch PM1-M3-G014-V09-000-DINA-CON switches via a microswitch, with the switching point adjustable within -0.9 to 0 bar. Connection G 1/4, electrical form A plug, overpressure protection 80 bar.
Available
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The mechanical pressure switch PM1-M3-G014-V09-000-DINA-CON switches via a microswitch, with the switching point adjustable within -0.9 to 0 bar.
Benefits
- Microswitch switching element (ON/OFF) for 12-125 V DC, 12-250 V AC.
- Overpressure protection of 80 bar guards against pressure peaks in the line.
- For compressed air, hydraulic oil, medium temperature -10 to 80 °C.
- Accuracy ± 2 % of full scale, switching frequency up to 100/min.
- For mounting on moving axes: 15 g IEC 60068-2-64 shock and 10 g (60 to 500 Hz) IEC 60068-2-6 vibration permitted.
Applications
Used in compressed air and hydraulic systems where a limit within -0.9 to 0 bar has to be signalled.
Technical data
| Feature | Value |
|---|---|
| Type designation | PM1-M3-G014-V09-000-DINA-CON |
| Part number | R412010711 |
| Type | mechanical |
| Type | Diaphragm, spring loaded, adjustable |
| Mounting position | Any |
| Switching pressure | -0.9 to 0 bar |
| Protection against overpressure | 80 bar |
| Operational voltage | 12-125 V DC, 12-250 V AC |
| Max shock resistance | 15 g IEC 60068-2-64 |
| Vibration resistance | 10 g (60 to 500 Hz) IEC 60068-2-6 |
| Precision (% of full scale value) | ± 2 % |
| Hysteresis | max switching pressure difference |
| Measurement | Relative pressure |
| Compressed air connection | G 1/4 |
| Compressed air connection type | Internal thread |
| Medium temperature | -10 to 80 °C |
| Medium | Compressed air, Hydraulic oil |
| Valve plug connector | With valve plug connector |
| Electrical connection type | Plug |
| Electrical connection size | EN 175301-803, form A |
| Ambient temperature | -20 to 80 °C |
| Switching element | microswitch (input/output) |
| Max switching frequency | 100/min |
| Switching point | adjustable |
| Weight | 0.24 kg |
| Manufacturer | Aventics |
| Hersteller-Nr | R412010711 |
| Zolltarifnummer | 85365080 |
| GPSR Herstellerdaten | AVENTICS GmbH, Ulmer Straße 4, DE-30880 Laatzen, aventics.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Country of Manufacture | Germany |
| Thread | G 1/4 |
| Thread type | Internal thread |
| Norm | DIN EN 175301-803 |
| Temperaturbereich | -20-80 °C |
Downloads
Accessories

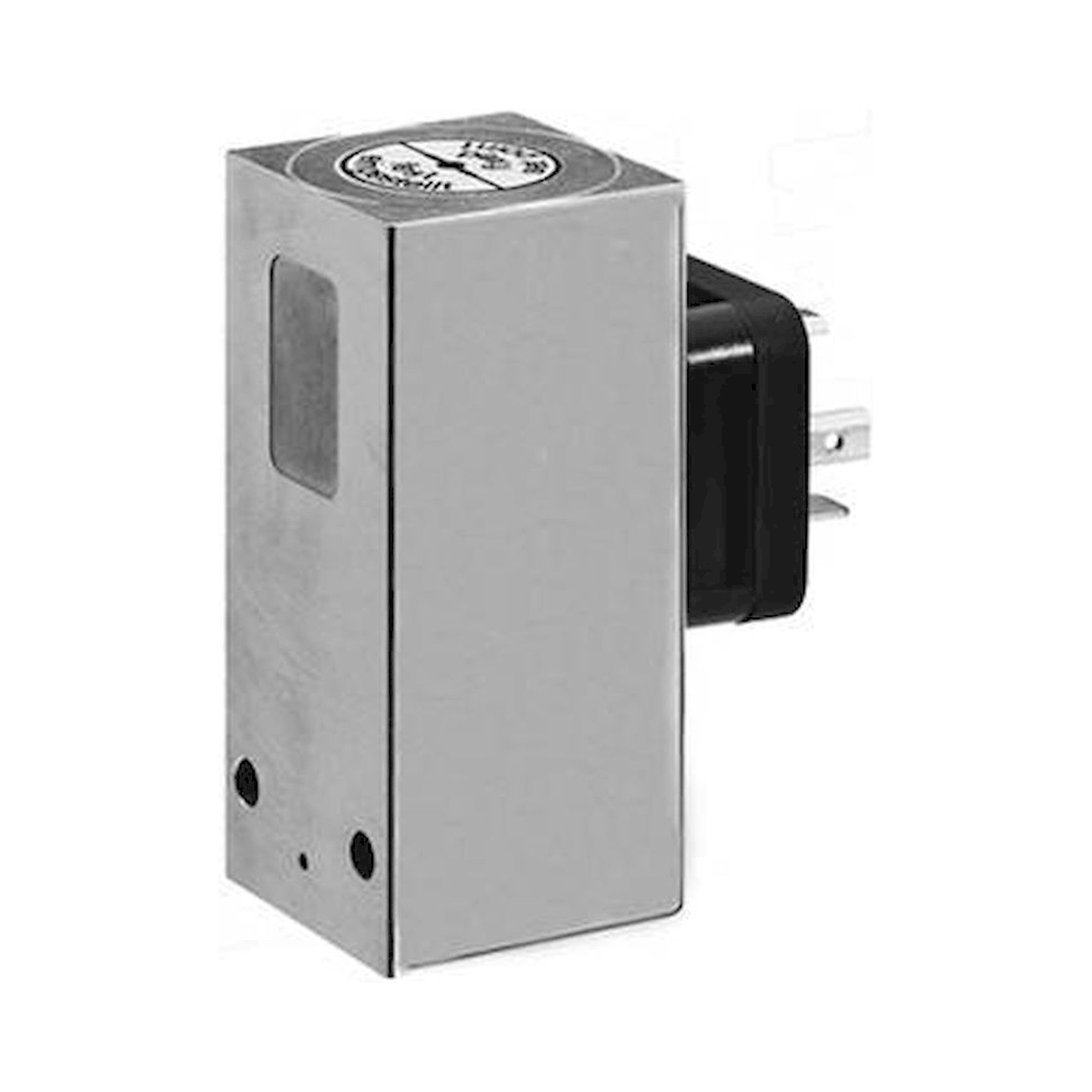

Pressure Switch, Serie PM1, type PM1-M3-F001-002-015-DINA-NONE - Aventics R412010721
