5/3-way valve centre pressurised, electropneumatic, series 70, G 1/4, 12 V DC, external pilot air, type 517.53.14.E.PC.12D - Riegler 147352

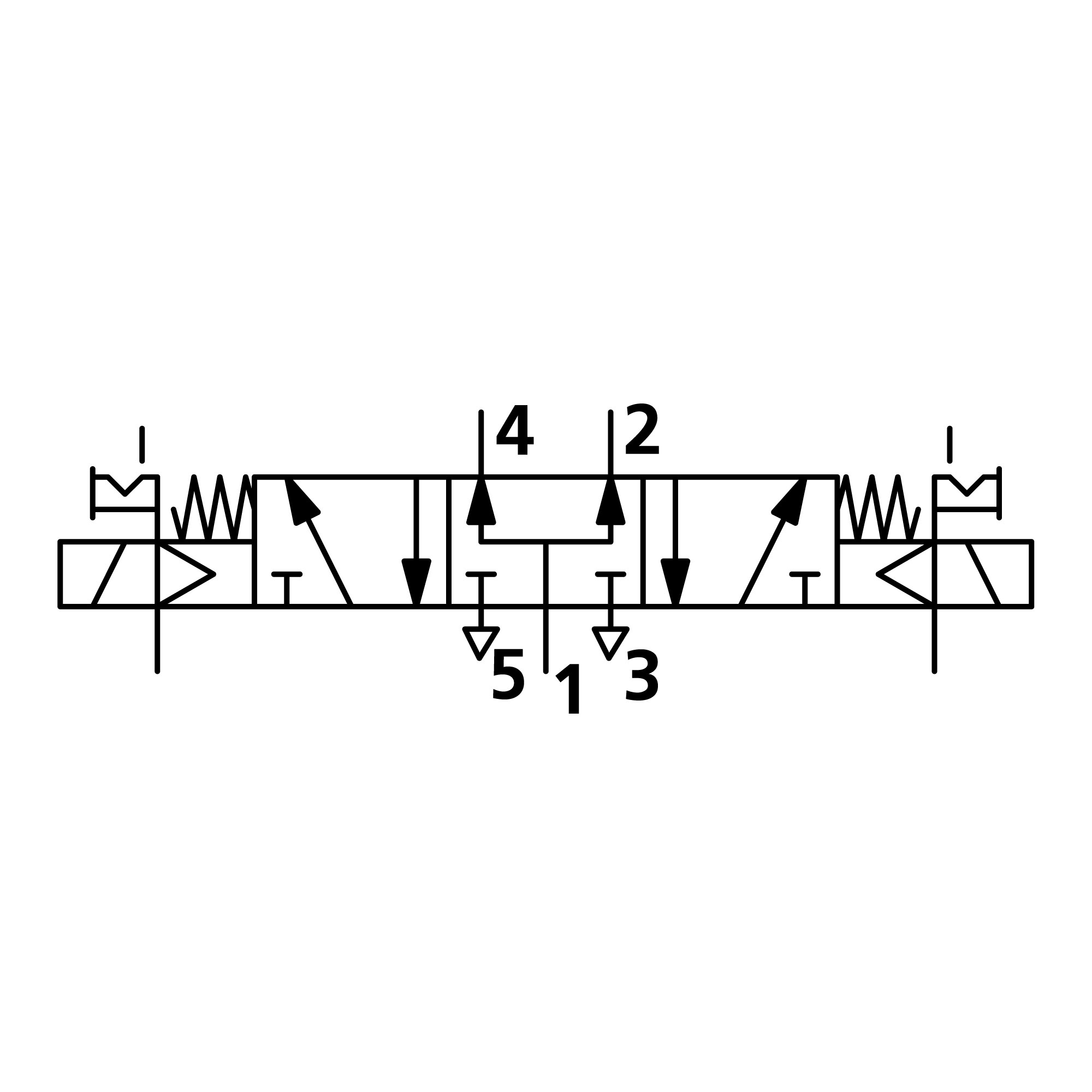

On valve 517.53.14.E.PC.12D an electrical signal gives the command, which is executed by a pneumatic pilot stage. Switching behaviour: in the mid position both working ports are pressurised. Valve 517.53.14.E.PC.12D has port G 1/4 female thread and nominal size DN 7.5 mm, flow 1100 Nl/min at 6 bar and Δp 1 bar.

Benefits

• At 6 bar the valve passes 1100 Nl/min with Δp 1 bar and 750 Nl/min with Δp 0.5 bar.
• External pilot air (2.5 to 10 bar) gives valve 517.53.14.E.PC.12D an operating pressure range of -0.99 to 10 bar including vacuum.
• Medium -10 to 60 °C, ambient -10 to 50 °C.
• Latching manual override for switching without a signal.
• Connector and coil 12 V DC are included.

Applications

For actuators that need pressure on both sides in the mid position. Mounting in-line, directly on the cylinder with a special adapter, or in a row on multi-base plates and supply strips with G 1/4.
