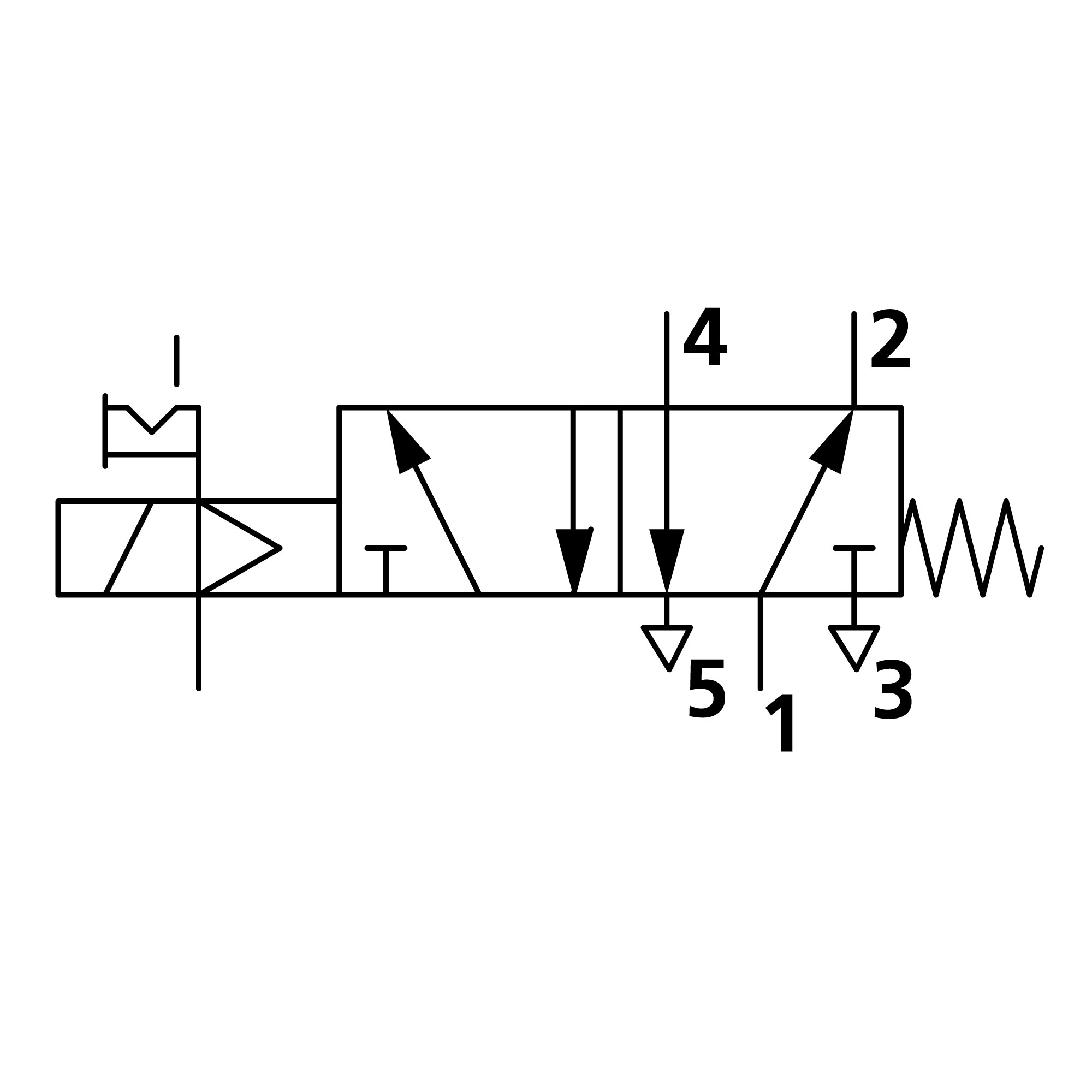

5/2-way valve monostable, electropneumatic, series 70, G 3/8, 24 V AC, external pilot air, type 517.52.38.E.M.24A - Riegler 147277

On valve 517.52.38.E.M.24A an electrical signal gives the command, which is executed by a pneumatic pilot stage. Switching behaviour of valve 517.52.38.E.M.24A: the valve is monostable and returns to its home position when the signal drops. Valve 517.52.38.E.M.24A has port G 3/8 female thread and nominal size DN 13.3 mm, flow 2150 Nl/min at 6 bar and Δp 1 bar.

Benefits

• At 6 bar the valve passes 2150 Nl/min with Δp 1 bar and 1560 Nl/min with Δp 0.5 bar.
• Operating pressure -0.99 to 10 bar: thanks to external pilot air at 2.5 to 10 bar the G 3/8 valve also switches vacuum.
• Medium temperature -10 to 60 °C, ambient -10 to 50 °C.
• Latching manual override for switching without a signal.
• Connector and coil 24 V AC, 50/60 Hz are included.

Applications

The valve is used for double-acting cylinders and rotary actuators. Mounting in-line, directly on the cylinder with a special adapter, or in a row on multi-base plates and supply strips with G 3/8.
