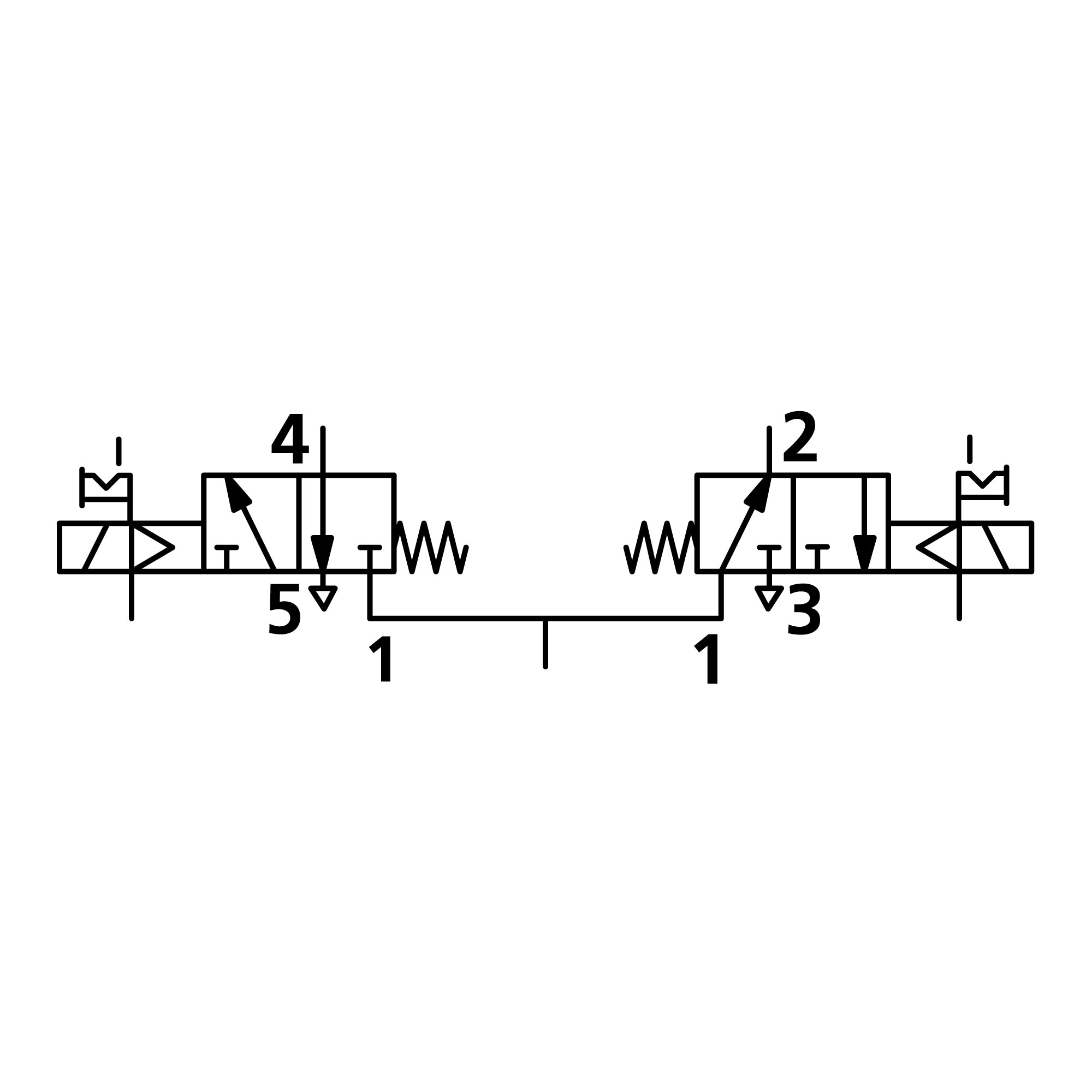

2x3/2-way valve series 70, electropneumatic, NC and NO, external pilot air, G 1/8, without coil and connector, type 7010023600 - Riegler 147151

The 2x3/2-way valve series 70, one function NC and one NO, supplies cylinders and actuators via its G 1/8 port with a flow rate of 550 Nl/min at 6 bar and Δp 1 bar. Thanks to the external pilot air (2.5 to 10 bar) it also works with low operating pressure from -0.99 bar.

Benefits

• Flow rate 550 Nl/min at 6 bar and Δp 1 bar, 400 Nl/min at Δp 0.5 bar (DN 5 mm)
• External pilot air 2.5 to 10 bar, allowing an operating pressure of -0.99 to 10 bar
• Medium temperature -10 to 60 °C, ambient temperature -10 to 60 °C
• Manual override latching for commissioning and testing
• Compressed air quality to ISO 8573-1 class 4.7.3

Applications

Two 3/2-way functions in one valve body replace two individual valves, for example for two single-acting cylinders or as a 5/3 substitute circuit. Valve 7010023600 of the series 70 can be used as an individual valve with G 1/8 threaded port, mounted directly on the cylinder with a special adapter or combined into valve banks on multiple base plates and supply strips.
