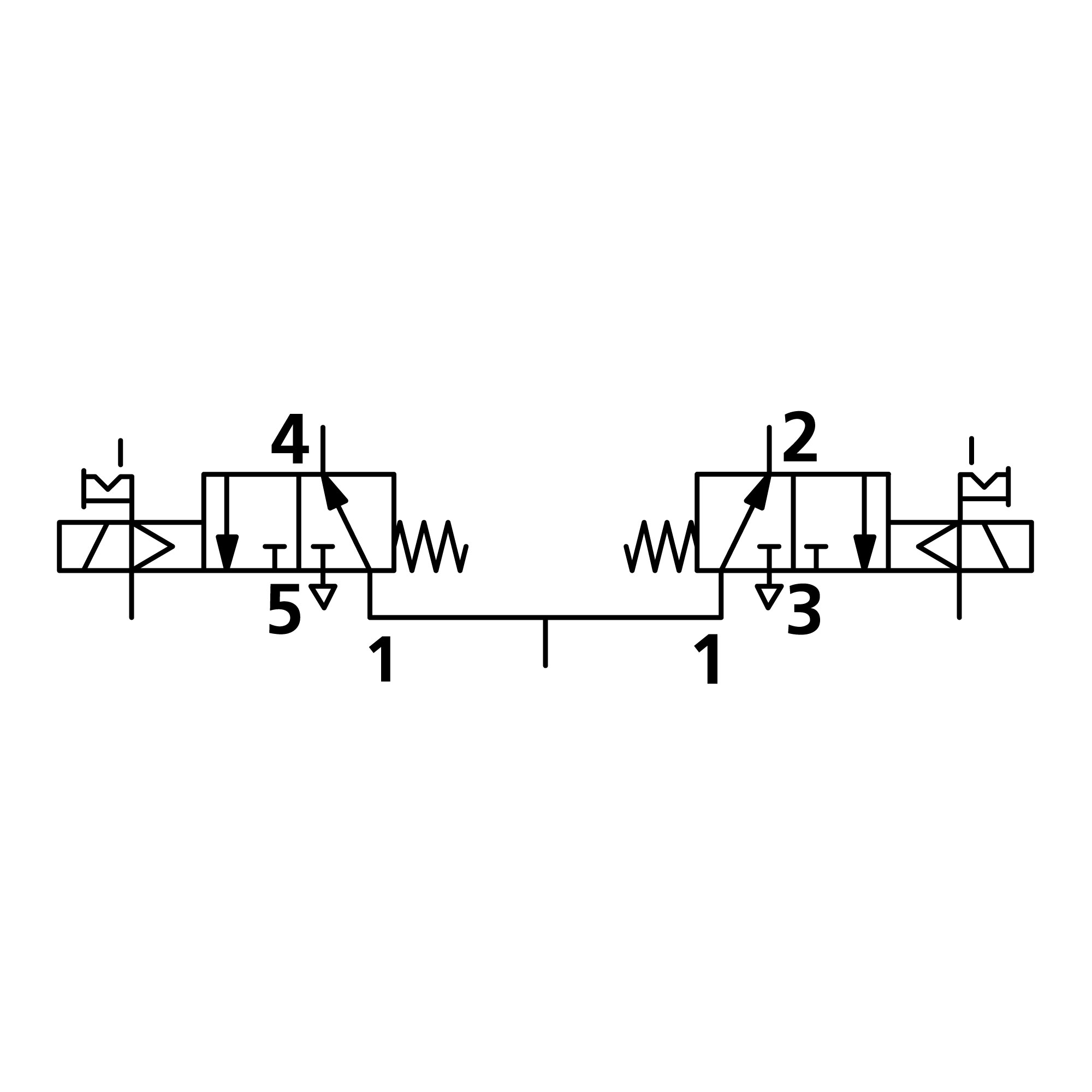

2x3/2-way valve series 70, electropneumatic, both NO, external pilot air, G 1/4, without coil and connector, type 7020023500 - Riegler 147148

Through its G 1/4 port the 2x3/2-way valve series 70 reaches a flow rate of 1100 Nl/min at 6 bar and Δp 1 bar, switching function 2x3/2 NO. Type 7020023500 comes without solenoid coil and plug connector, the voltage is set by the coil you choose. Operating pressure -0.99 to 10 bar.

Benefits

• Flow rate 1100 Nl/min at 6 bar and Δp 1 bar, 750 Nl/min at Δp 0.5 bar (DN 7.5 mm)
• External pilot air 2.5 to 10 bar, allowing an operating pressure of -0.99 to 10 bar
• Medium temperature -10 to 60 °C, ambient temperature -10 to 60 °C
• Manual override latching for commissioning and testing
• Compressed air quality to ISO 8573-1 class 4.7.3

Applications

The double valve combines two 3/2 functions in the footprint of a single valve and saves space in the control cabinet or on the machine. Valve 7020023500 of the series 70 can be used as an individual valve with G 1/4 threaded port, mounted directly on the cylinder with a special adapter or combined into valve banks on multiple base plates and supply strips.
