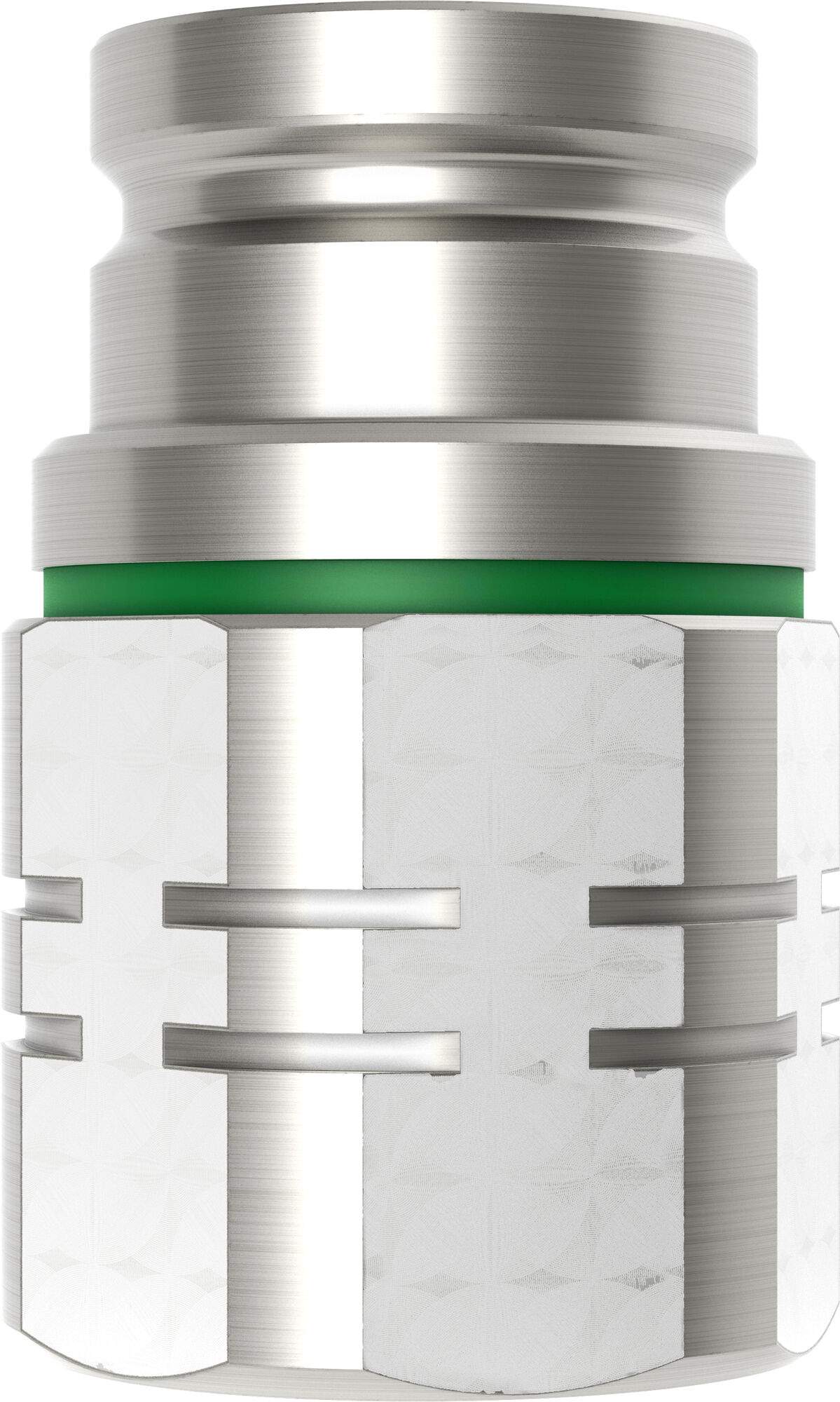

Non-drip coupling nipple, with valve, G 1" female thread, DN 19, brass - Cejn 107676200

The coupling nipple connects through a G 1" female thread and parts practically without dripping. It is rated for 20 bar, carries 19 mm nominal flow diameter and has a body made of brass.

Benefits

• Connection G 1" as a female thread.
• No air inclusion during connection and disconnection.
• Modular design of the series, couplings and nipples combine freely.
• Version with valve, the line is shut off when parting.
• Weight 0.36 kg per piece.

Applications

The modular design allows couplings and nipples of the series to be matched to the given system requirement. Applications lie in thermal management and in media circuits with frequent disconnections.

Materials and marking

The body is made of brass. The seal material is NBR. Colour coding and key coding are available for the series on request.
