In service the swivel eye mounting holds the cylinder and carries its forces into the machine frame. The decisive figure is a piston diameter of 100 mm. Dimensions 96 x 71 x 70 mm, made of steel / GGG cast iron.

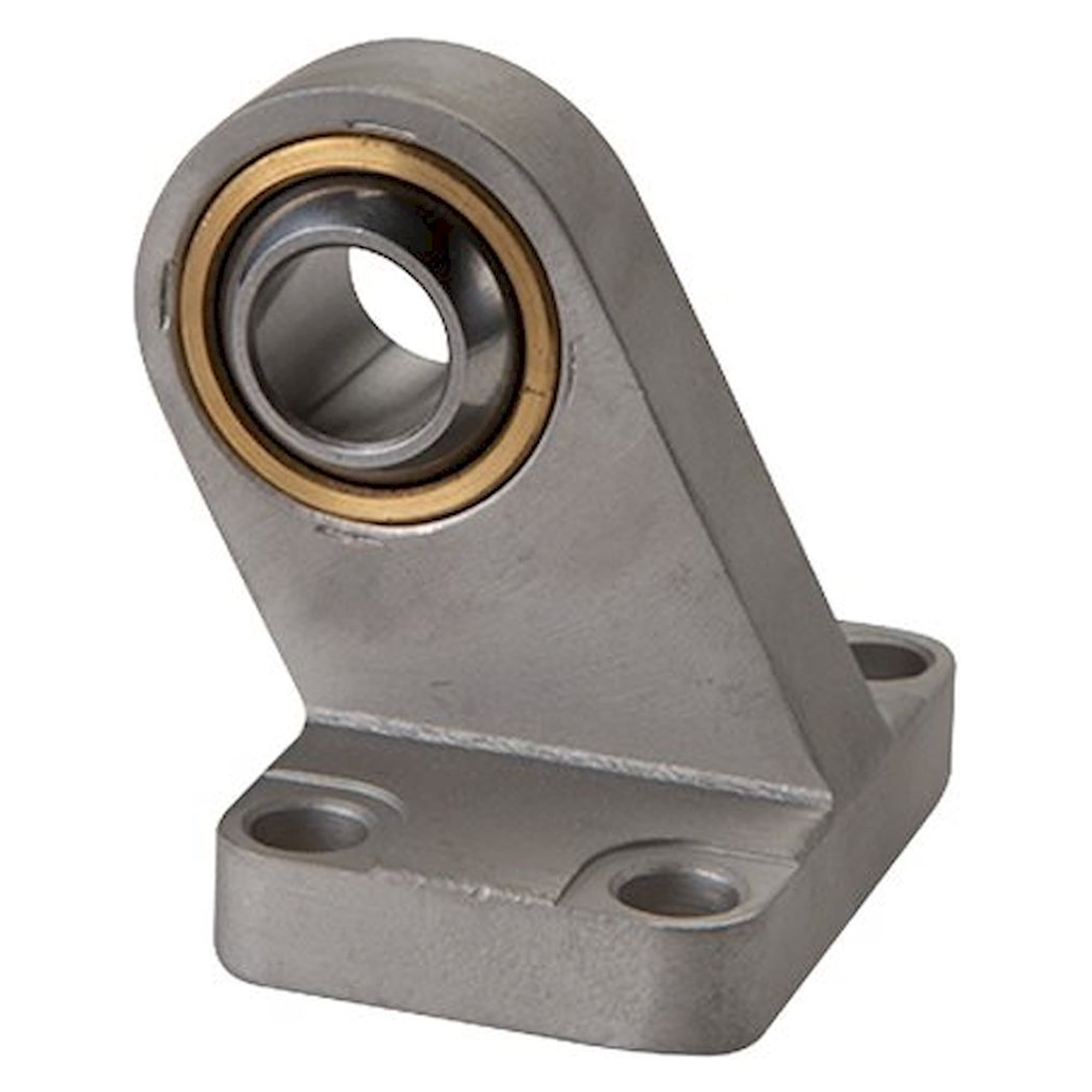

Spherical 90 degree eye mounting ISO 15552, for piston diameter 100 mm
FLUIDICS EQUIPMENT
Original product
Net price (excl. VAT)
€126.94
Item
FL-029863
Manufacturer no.
TF 100
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.TF 100
EAN4050571694203
Customs tariff number84129080
ConditionNew
Artikel
FL-029863
This swivel eye mounting to ISO 15552 holds the cylinder and carries its forces into the machine frame. The data state a piston diameter of 100 mm. The stated material is steel / GGG cast iron.
Benefits
- Designed for cylinders with a 100 mm piston diameter to ISO 15552.
- Interface dimensions to ISO 15552 allow a replacement without changing the machine.
- Material steel / GGG cast iron for size 100 mm.
- Dimension BM comes to 71 mm for size 100 mm.
- Dimension BN comes to 76 mm for size 100 mm.
- Dimension D comes to 20 mm for size 100 mm.
Technical data
| Material | steel / spheroidal graphite cast iron |
|---|---|
| For piston diameter [mm] | 100 |
| Dimension Q [mm] | 11.0 |
| Dimension BG [mm] | 50 |
| Dimension BH [mm] | 70 |
| Dimension BI [mm] | 55 |
| Dimension BL [mm] | 15 |
| Dimension BM [mm] | 71 |
| Dimension BN [mm] | 76 |
| Dimension BO [mm] | 96 |
| Dimension EN [mm] | 25 |
| Dimension BQ [mm] | 18.0 |
| Dimension D [mm] | 20 |
| Dimension H [mm] | 12.5 |
Applications
On feed and infeed units the spherical 90 degree eye mounting carries the cylinder of size 100 mm.
Standards and conformity
Made to ISO 15552 and matched to a piston diameter of 100 mm.
| Norm | ISO 15552 |
|---|---|
| Hersteller-Nr | TF 100 |
| Manufacturer | Fluidics equipment |
| EAN | 4050571694203 |
| Weight | 1.300000 |
| Zolltarifnummer | 84129080 |
| GPSR Herstellerdaten | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Position sensing | No |
