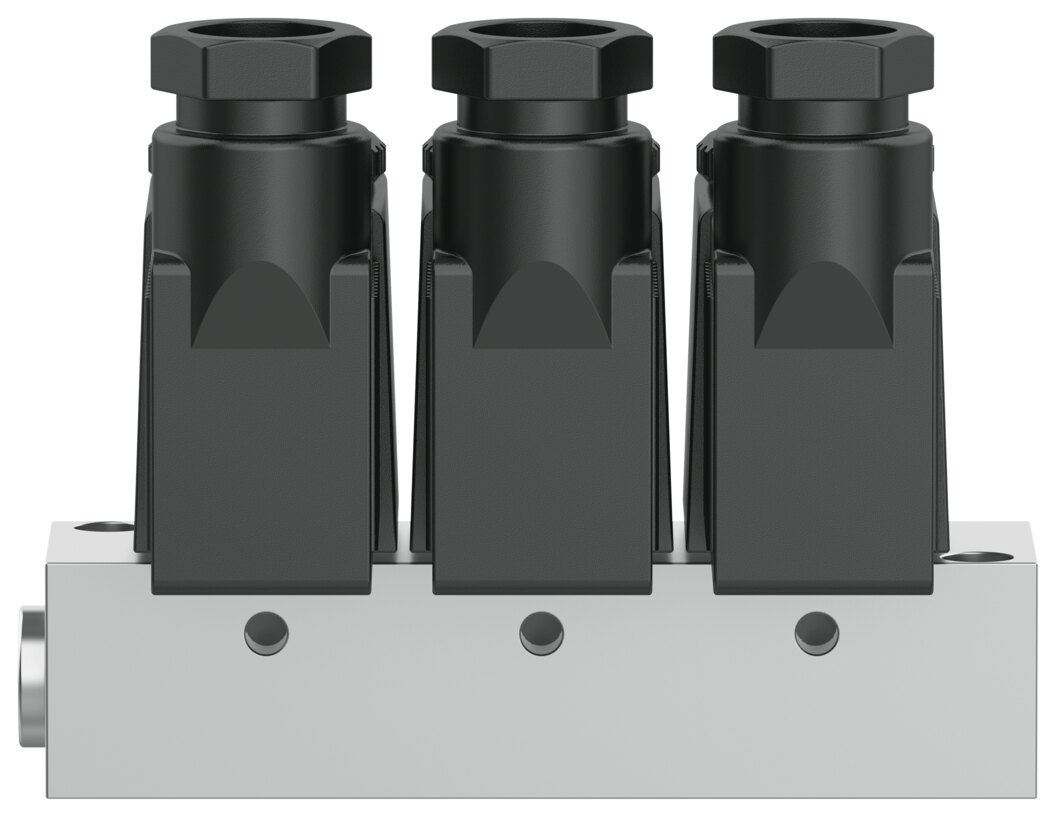

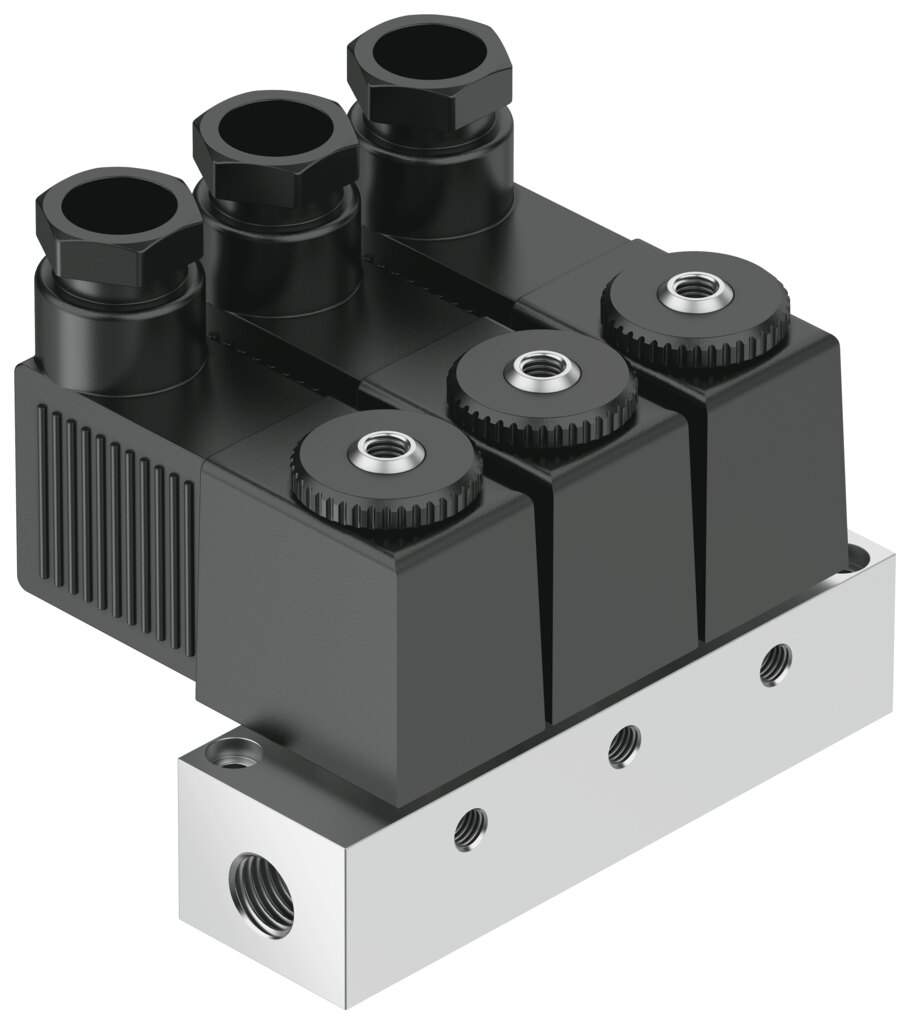

Solenoid valve BMFH-3-3-M5 - Festo 4523
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data

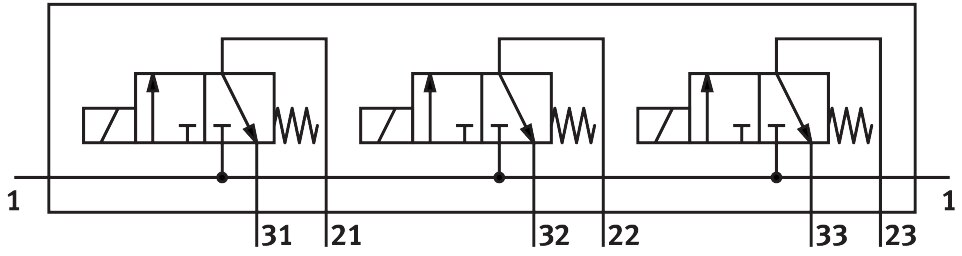

| Valve function | 3x3/2 closed monostable |
|---|---|
| Type of actuation | Electrical |
| Standard nominal flow rate (standardised to DIN 1343) | 50 l/min |
| pneumatic working port | M5 |
| Operating pressure | 0 ... 8 bar |
| Design | Poppet valve with spring return |
| Type of reset | Mechanical spring |
| Degree of protection | IP65 |
| Nominal size | 1.3 mm |
| Sealing principle | Soft |
| Max. number of valve positions | 3 |
| Type of piloting | Direct |
| Power consumption, pull | 7.5 W |
| Power consumption, hold | 6 W |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Media temperature | -10 ... 60 °C |
| Ambient temperature | -5 ... 40 °C |
| Product weight | 350 g |
| Electrical connection | Plug |
| Type of mounting | With through-hole |
| Pneumatic connection, port 1 | G1/8 |
| Pneumatic connection, port 2 | M5 |
| Pneumatic connection, port 3 | M5 |
| Material housing | Aluminium |
| Weight | 0.155 kg |
| Manufacturer | Festo |
| Hersteller-Nr | BMFH-3-3-M5 |
| EAN | 4052568110529 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
