Aventics 5/2-directional valve, Series 581, size 3 5813610400 V581-5/2AR-230AC-I3-AP22-HBX-AA-D-C-T0
€245.82
Excl. 19% VAT ,
excl. Shipping Cost
Article
AVE-5813610400
Manufacturer Nr.
5813610400
V581-5/2AR-230AC-I3-AP22-HBX-AA-D-C-T0
Frequently Bought Together
-
This Item:
€245.82Excl. 19% VAT , excl. Shipping Cost
-
Aventics 5/2-directional valve, Series 581, size 3 5813221000 V581-5/2DS-NONE-I3-2P22-HBX-AA-X-C-T1
€261.77Excl. 19% VAT , excl. Shipping Cost
-
Aventics R480758201 AV-AV03X7-PROFIBUSDP
€1,908.77Excl. 19% VAT , excl. Shipping Cost
Total price
| Activation | Electrically |
| Nominal flow Qn | 4800 l/min |
| Switching principle | 5/2, with air spring return |
| Compressed air connection output | Base plate ISO 5599-1 |
| Min. working pressure | 1.5 bar |
| Max. working pressure | 10 bar |
| Operational voltage AC at 50 Hz | 230 V |
| Voltage tolerance AC 50 Hz | -10% / +10% |
| Manual override | with detent |
| Electrical connection type | Plug |
| Electrical connection size | Form B, industry |
| Sealing principle | Soft seal |
| Pilot | Internal |
| Standards | ISO 5599-1 |
| Pilot valve width | 22 mm |
| Valve type | Spool valve |
| Blocking principle | Single base plate principle |
| Connection type | Plate connection |
| Return | with air spring return |
| Compressed air connection input | Base plate ISO 5599-1 |
| Compressed air connection, exhaust | Base plate ISO 5599-1 |
| Compressed air connection pilot exhaust | M5 |
| Holding power AC 50 Hz | 8 VA |
| Switch-on power AC 50 Hz | 10 VA |
| Flow conductance C | 18.9 l/(s*bar) |
- Standardized valve system
- ISO size 1 to 4 available
- Robust design
- Integrated exhaust throttles
- Numerous voltage ranges
- Pressure range up to 16 bar possible
- CNOMO interface
- Small dimensions
- Fast shifting times
- Easy and flexible custom specific configurations via online configurator
| Manufacturer Nr. | 5813610400 |
|---|---|
| Manufacturer | Aventics |
| GPSR manufacturer information | AVENTICS GmbH, Ulmer Straße 4, DE-30880 Laatzen, aventics.com |
| Weight | 0.950000 |
| HS-Code | 84812090 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought

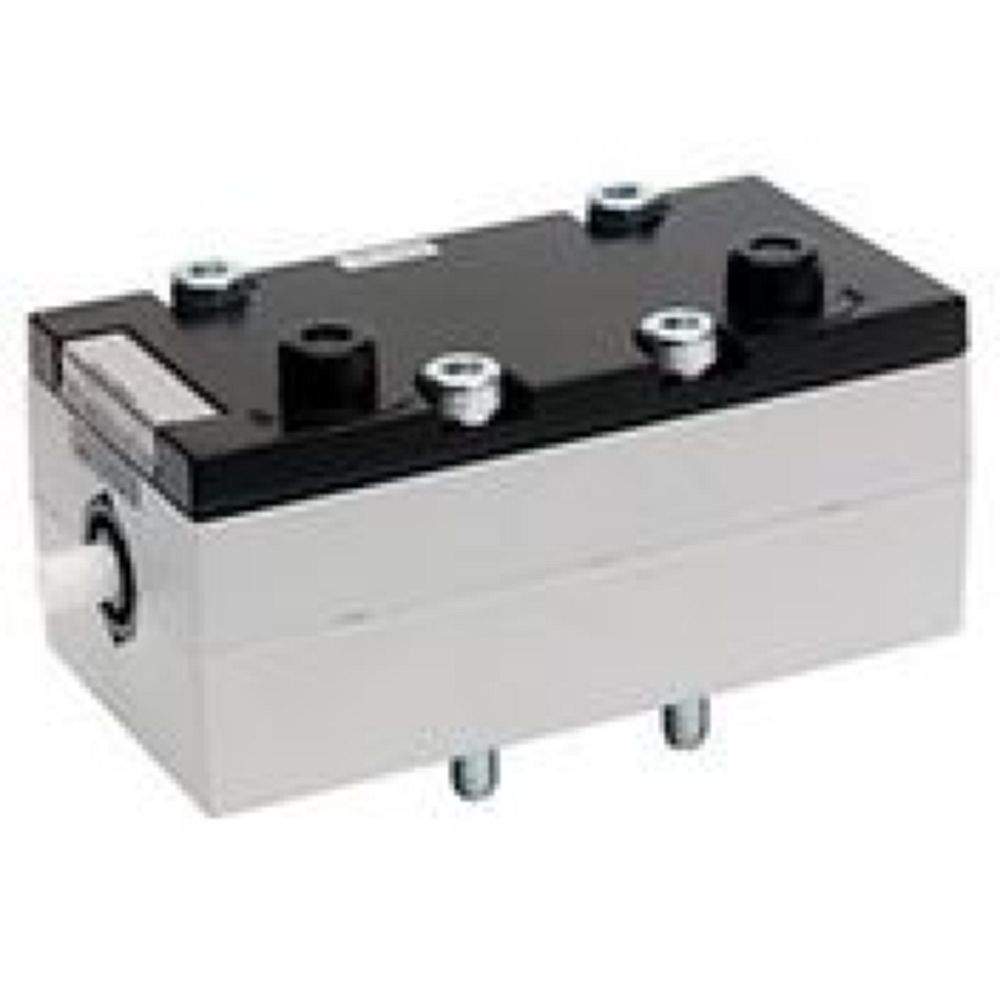

Aventics 5/2-directional valve, Series 581, size 4 5814331000 V581-5/2DP-I4-AIR-AA-M-T1
