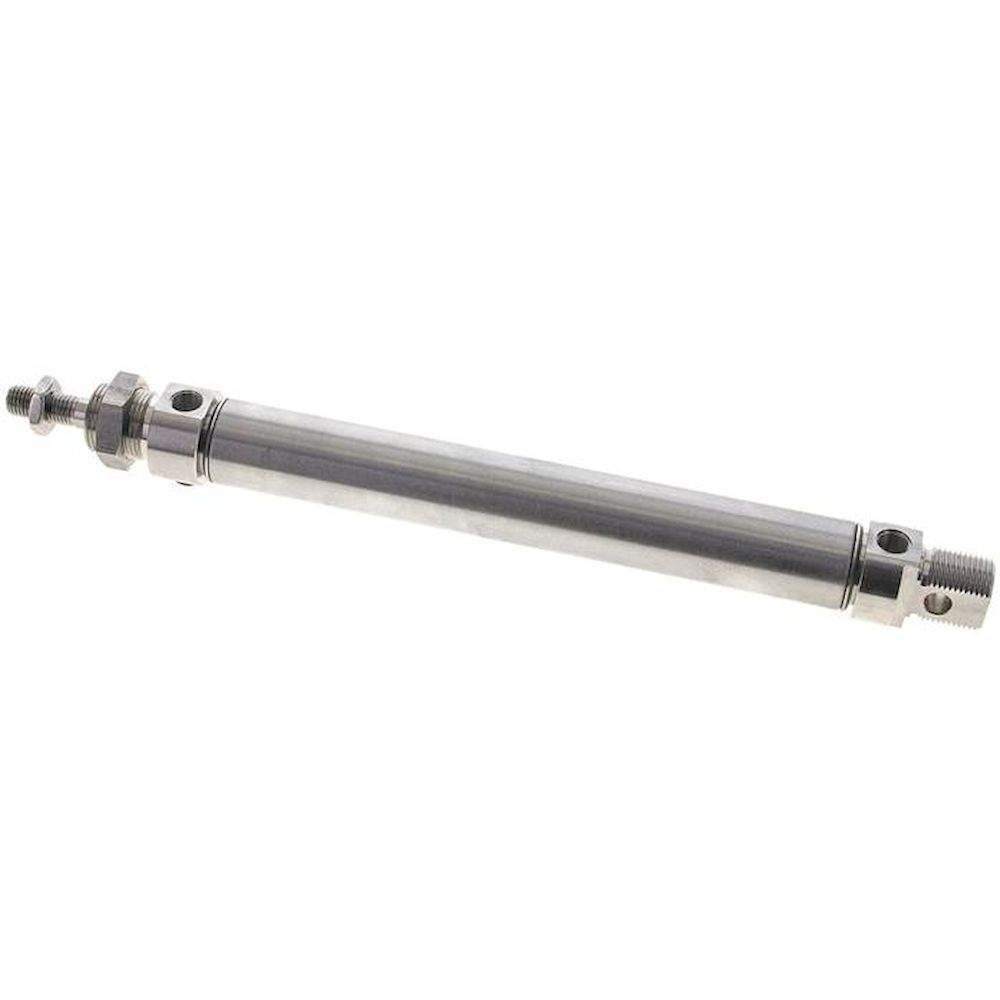

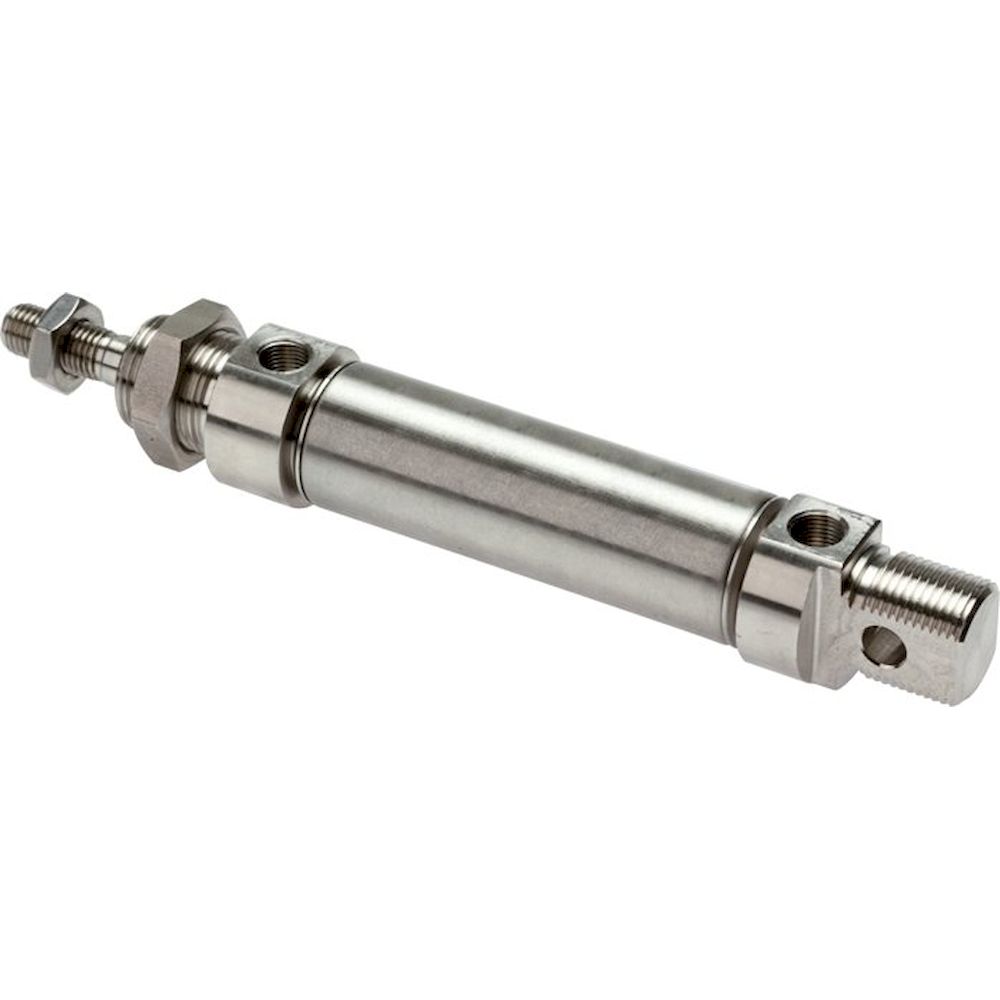

Double-acting round cylinder to ISO 6432 in stainless steel with 16 mm bore and 320 mm stroke. Cylinder tube and piston rod in 1.4301 and 1.4436 suit humid and corrosive environments. Supplied with a magnetic piston for end-position sensing.
ISO 6432 Cylinder Stainless Steel, 16 mm Bore, 320 mm Stroke - Airtec ZDM 16/320 ES
AIRTEC
Original product
Net price (excl. VAT)
€114.03 €95.82
Item
FL-ZDM-16/320-ES
Manufacturer no.
ZDM 16/320 ES
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.ZDM 16/320 ES
EAN4050571811518
Customs tariff number84123100
ConditionNew
Artikel
FL-ZDM-16/320-ES
The Airtec ZDM 16/320 ES is a double-acting round cylinder to ISO 6432 in stainless steel with a 16 mm piston diameter and 320 mm stroke. A 1.4301 cylinder tube and 1.4436 piston rod make it suitable for applications involving moisture, cleaning agents or corrosive media.
Benefits
- Cylinder tube and head in 1.4301, piston rod in 1.4436 for high corrosion resistance
- Double-acting with 16 mm bore and 320 mm stroke
- Magnetic piston as standard for contactless end-position sensing via cylinder switch E with mounting E1
- Operating pressure up to 10 bar from -20 °C to +80 °C
- Optional FKM seals for temperatures up to +150 °C
Technical data
| Design | Round cylinder to ISO 6432, double-acting |
| Materials | Head and foot 1.4301, cylinder tube 1.4301, piston rod 1.4436, seals NBR / PUR |
| Version | with magnetic piston |
| Temperature range | -20 °C to +80 °C |
| Operating pressure | max. 10 bar |
| Piston diameter | 16 mm |
| Stroke | 320 mm |
| Cylinder switch type | E in combination with mounting E1 |
| Options | FKM seals for -20 °C to max. +150 °C, without magnetic piston (-V) |
| A (piston rod thread) | M 6 |
| B (mounting thread) | M 16x1,5 |
| R (air port) | M 5 |
| A1 [mm] | 6 |
| C [mm] | 19 |
| D [mm] | 12 |
| E [mm] | 6 |
| F [mm] | 16 |
| G [mm] | 82 |
| K [mm] | 22 |
| L [mm] | 18 |
| M [mm] | 109 |
| N [mm] | 9 |
| P [mm] | 53 |
| CH [mm] | 5 |
| Weight | 0.3 kg |
Applications
Suitable for handling, clamping and positioning tasks in the food, packaging and chemical industries and wherever stainless steel and wash-down resistance are required.
Standard reference ISO 6432 (round cylinder). Manufacturer AIRTEC Pneumatic GmbH.
| Hersteller-Nr | ZDM 16/320 ES |
|---|---|
| Manufacturer | Airtec |
| EAN | 4050571811518 |
| Weight | 0.300000 |
| Colour | Stainless Steel |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | AIRTEC Pneumatic GmbH, Westerbachstraße 7, DE-61476 Kronberg, www.airtec.de |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
| Position sensing | No |
