Metal mounting bracket, horizontal - Riegler 133384

Metal mounting bracket, horizontal, suitable for digital pressure gauge

Standards and origin

• Customs tariff number: 90269000
• Country of origin: DE

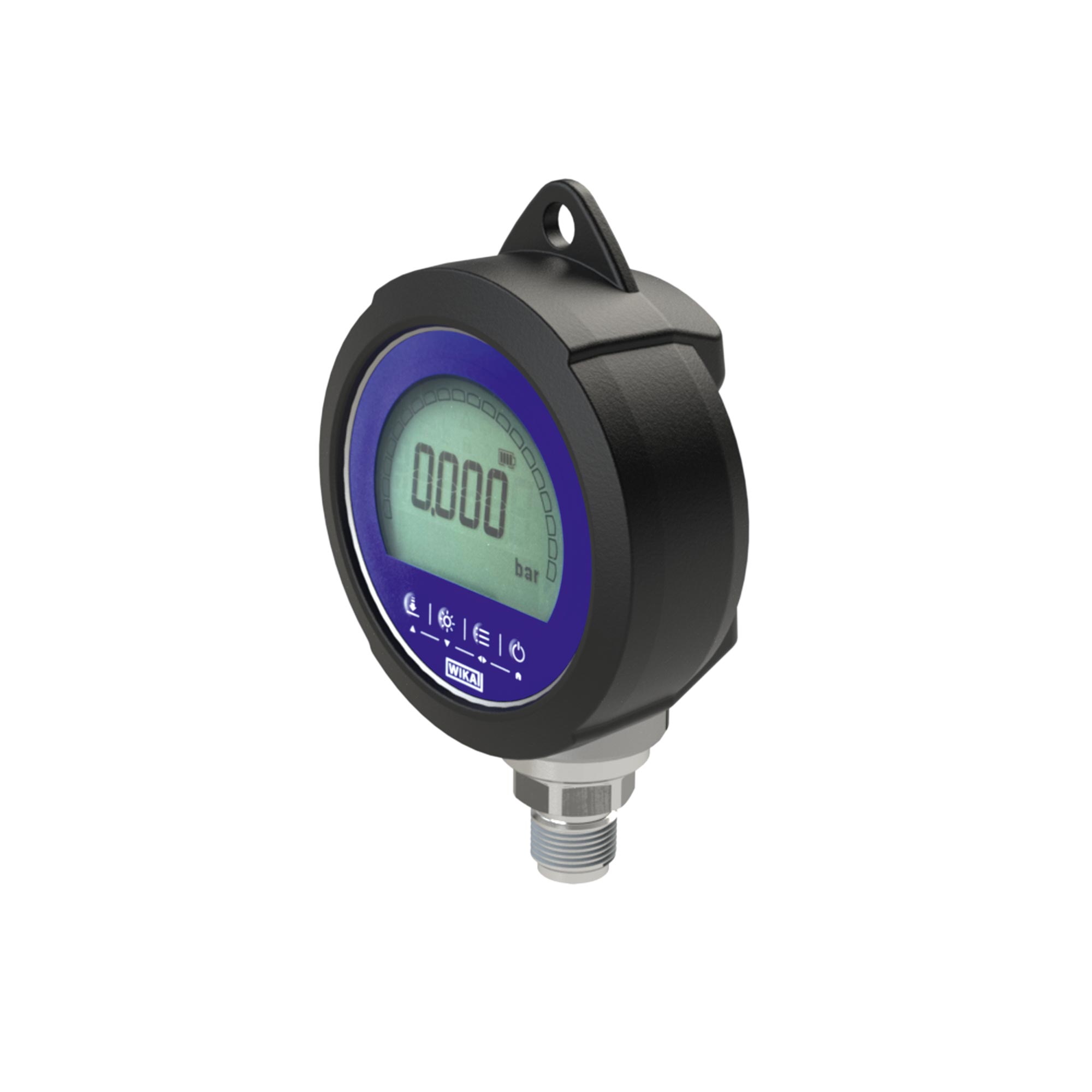

About Digital pressure gauge

A digital pressure gauge measures pressure and shows it as a figure, whether permanently installed in the plant or carried to the job. Measuring ranges in this group end between 1 and 600 bar, and the process connection is G 1/4 or G 1/2 male.

What matters when choosing

• Pick the maximum measuring range between 1 and 600 bar so that the usual operating pressure sits around the middle of the span.
• The process connection is G 1/4 male or G 1/2 male, while individual versions use R 1/4 male and M5 female.
• Housing and protection class belong together. The options are nickel-plated die-cast aluminium, PBT with 30% glass fibre and plastic, rated IP 65 or IP 40 and IP 65 with hose.
• Operating temperature starts at -10 °C depending on the instrument and medium temperature at -20 °C, with 50 °C as the upper limit in both cases.
• Display, backlight, memory, data transfer, switchable pressure units and battery life are what set the instruments apart in daily use.

Typical applications

• Checking pressure on service units and compressed air preparation.
• Test and calibration work that needs a readable figure instead of a pointer position.
• Mobile service work on battery power at changing measuring points.
• Hydraulic testing into the 600 bar range.
• Leak and pressure drop tests using the memory function.

Housings are listed as nickel-plated die-cast aluminium, PBT with 30% glass fibre and plastic, with protection class IP 65. The 44 articles in this group come from Germany, China and Taiwan.
