Screw-in hose connector, G 1/4 o., for hose I.D. 4, AF 17 - Riegler 111739

Screw-in hose connector G 1/4 o. for hose I.D. 4 Stainless steel 1.4571, Max. working pressure 60 bar, Max. operating temp. 150 °C

Technical data

Standards and origin

• Customs tariff number: 73072910
• Country of origin: DE

About Male hose fittings

A screw-in hose connector puts a threaded port on a soft hose, which slides over the barb and is held by a clamp. It is the simplest joint where no push-in fitting is required and the hose stays permanently installed. Working pressure is 25 to 60 bar depending on the version.

What matters when choosing

• The thread follows the port. Parallel G threads run from G 1/8 to G 1, tapered R threads from R 1/8 to R 3/4, and M5 is available for small ports.
• Barb size follows the inside diameter of the hose and is the second configuration axis next to the thread. It has to match the hose, not the thread size.

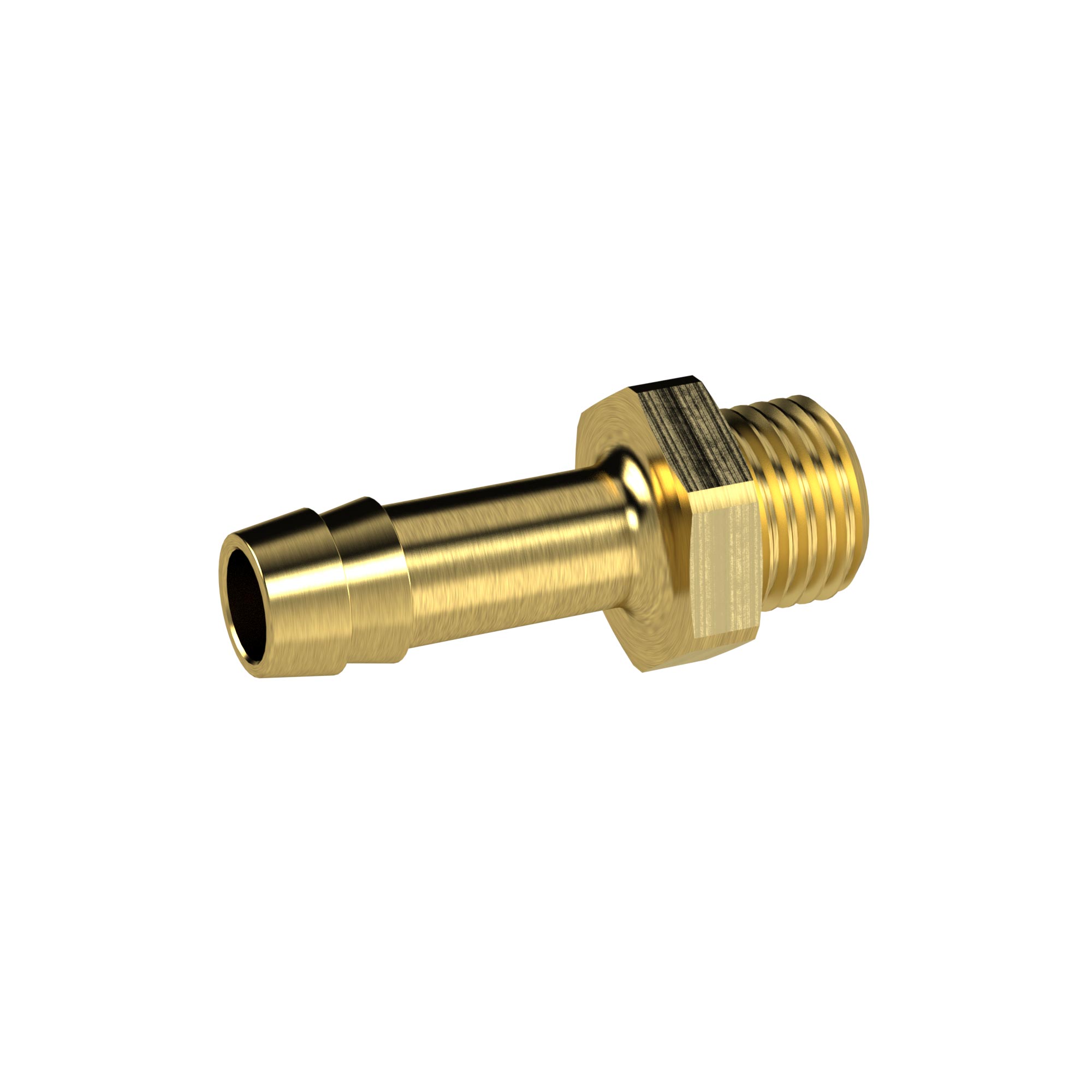

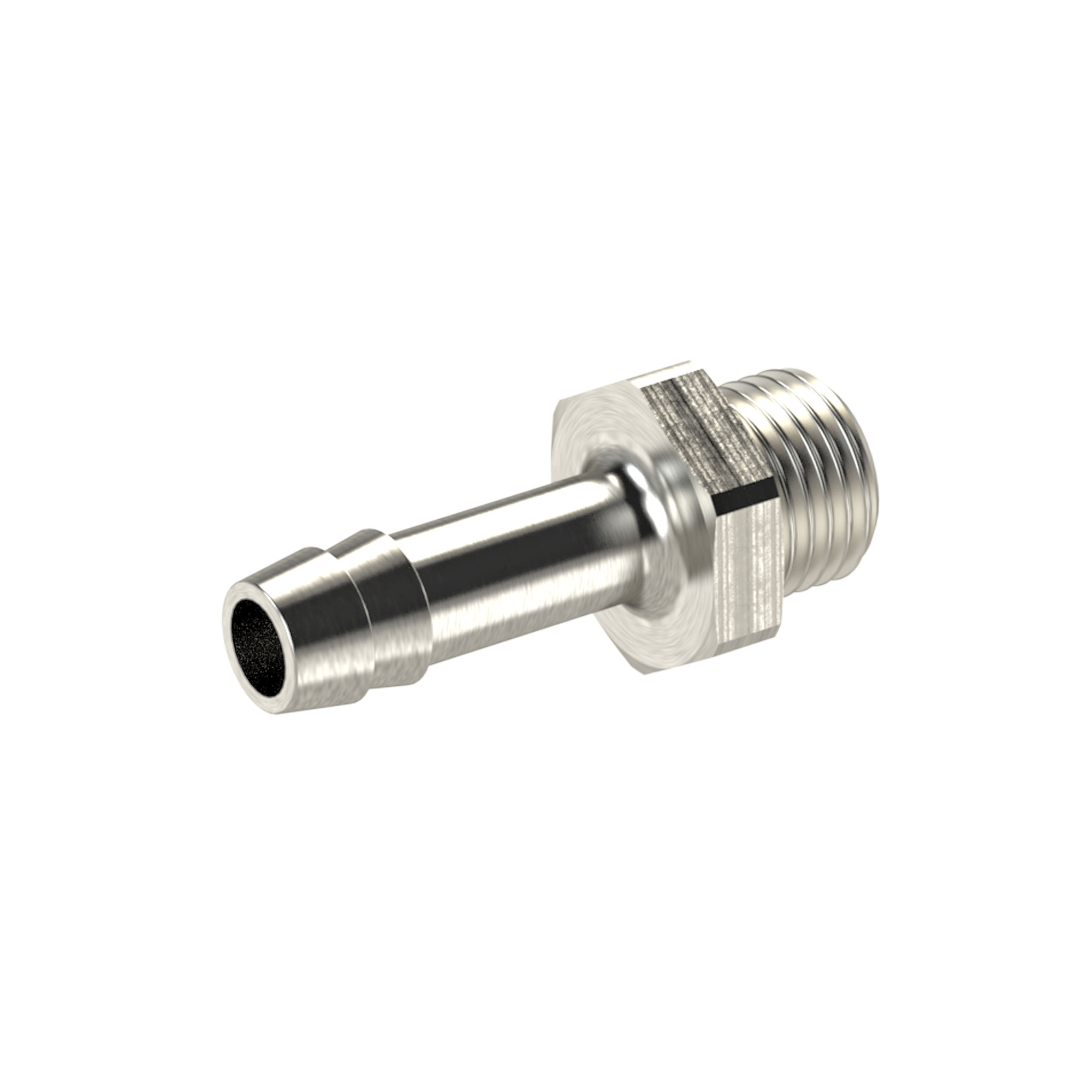

• Brass CW614N is the default material. Electroplated nickel-plated brass CW614N suits humidity and visible installation, stainless steel 1.4571 corrosive media.
• Working pressure covers 25 to 60 bar, and part of the range additionally carries a 60 bar operating pressure rating. Allow a margin where pressure surges occur.
• Maximum operating temperature is either 80 °C or 150 °C. For steam and hot oil, only the versions with the higher rating apply.

Typical applications

• Connecting rubber and fabric hoses to manifolds and shut-off valves in the workshop
• Water and coolant lines on machines where the hose stays permanently routed
• Joining compressed air hoses at compressor stations and air preparation units
• Oil and grease lines on lubrication units with a threaded port
• Temporary and permanent lines in plant construction where push-in fittings are too costly or too delicate

Part of the range belongs to the value line series and seals with an NBR O-ring at the thread. The group holds 281 articles in brass, nickel-plated brass and stainless steel 1.4571.
