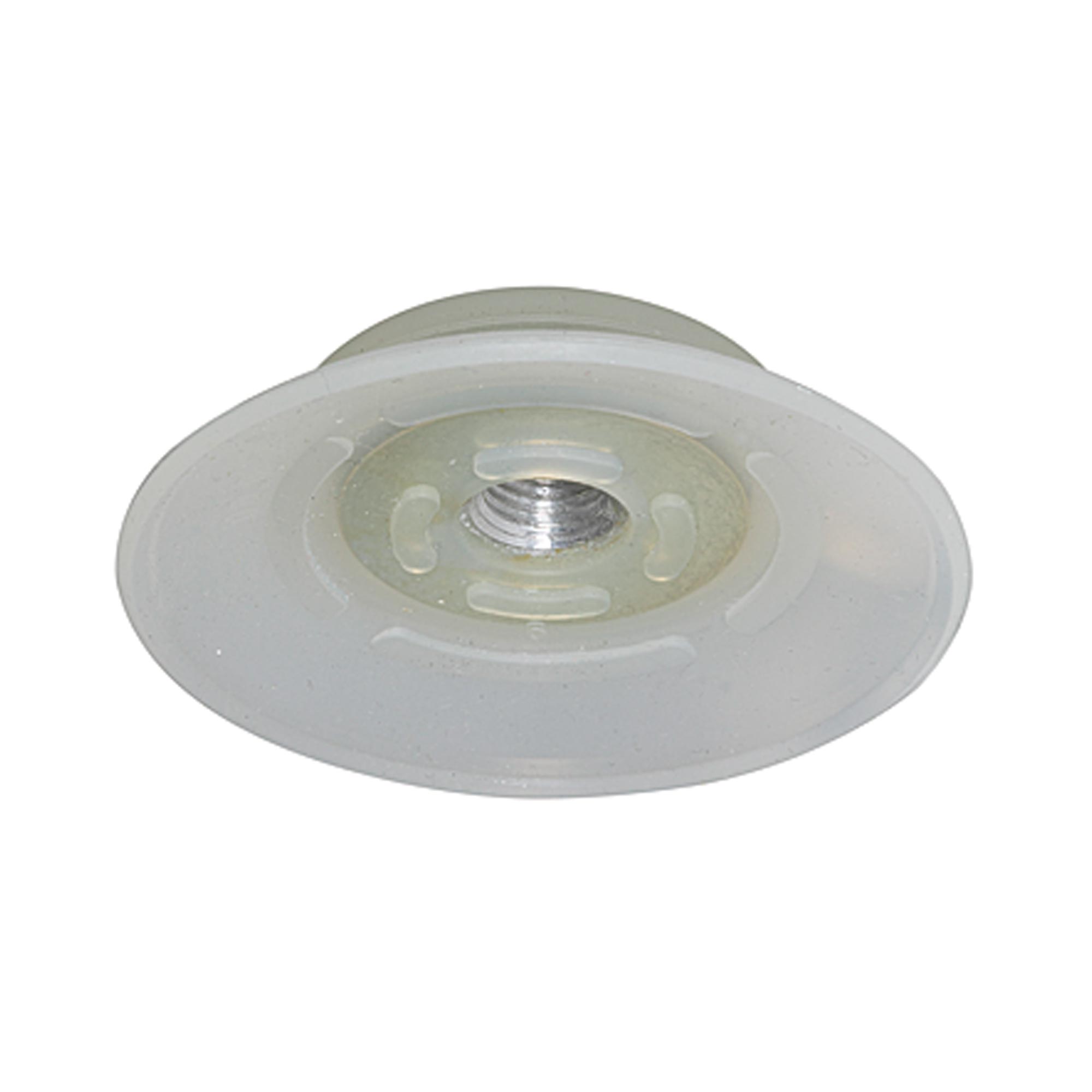

Flat suction cup, round, Silicone material, »PFG«, ø:5, suitable connection nipple IT M5, suitable connection nipple ET M5 Robust and hard-wearing suction pad with a single sealing lip. Used wherever objects (parts, packing materials, etc.) need to be lifted, transported, turned over or handled in some other manner. It is also ideal when it is necessary to handle smooth or slightly rough surfaces. Due to its flat shape, it can grip the workpiece in a very short time and withstand the forces that result from fast movement of the object during handling. It acts as the connecting element between the vacuum generator and the workpiece. Properties: Very short evacuation timesSuitable for high lateral forcesGood intrinsic stability when attached to the loadSupports on the bottomVery short cycle timesHigh suction forces with small dimensions Applications: Handling workpieces with smooth or slightly rough surfaces, e.g. metal sheets, cardboard boxes, sheets of glass, plastic parts and sheets of wood.
Technical data
| Diameter | 5 mm |
|---|
| Suction force | 0.75 N |
|---|
| Suitable connection nipple female | M5 |
|---|
| Suitable connection nipple male | M5 |
|---|
| Rec. internal hose Ø | 2 mm |
|---|
| Height with nipple male | 11.5 mm |
|---|
| Volume | 0.005 cm³ |
|---|
| Min. curve radius convex | 8 mm |
|---|
| Height with nipple female | 16.5 mm |
|---|
Standards and origin
- Customs tariff number: 39269097
- Country of origin: IN
