2463 kN Capacity, 250 mm Stroke, Double-Acting, High Tonnage, Lock Nut Hydraulic Cylinder - Enerpac HCRL25010
Datasheet (PDF)

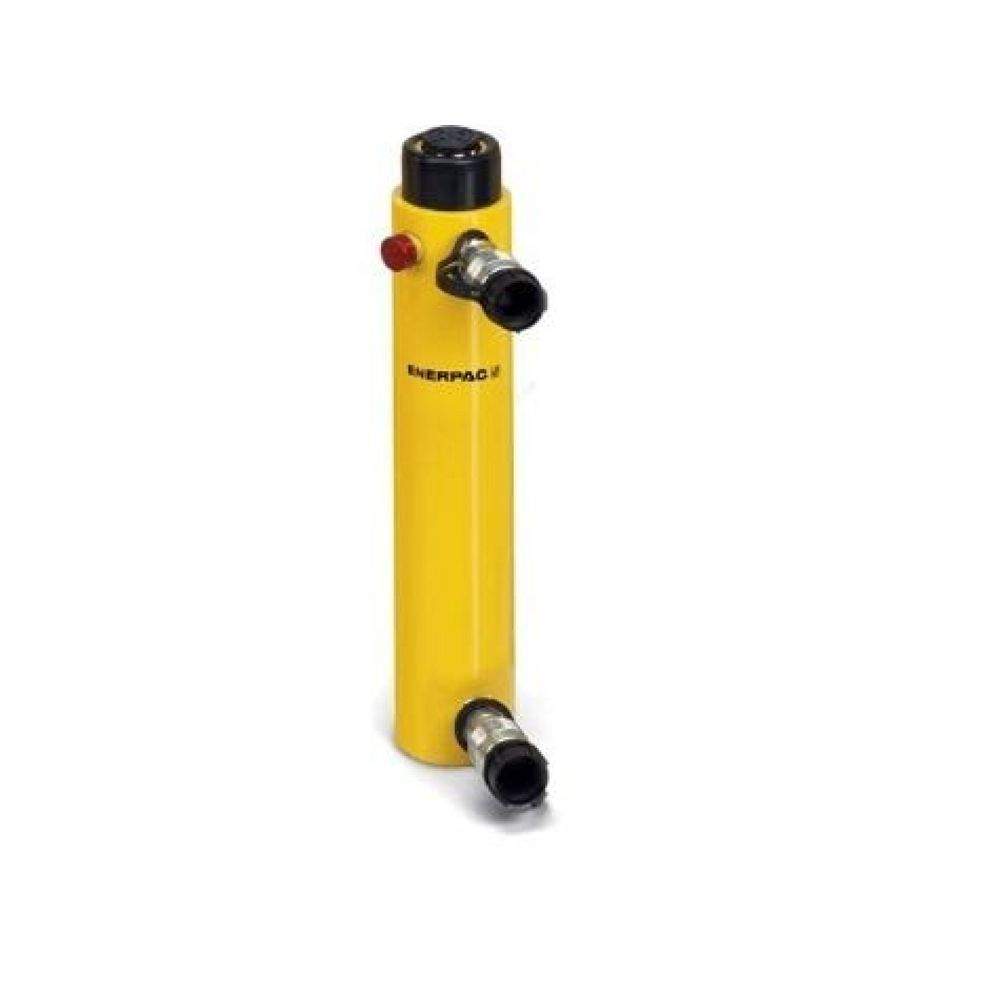

Pictures are for reference and may not be accurate, actual product may differ
HCRL25010, 2463 kN Capacity, 250 mm Stroke, Double-Acting, High Tonnage, Lock Nut Hydraulic Cylinder

2463 kN Capacity, 250 mm Stroke, Double-Acting, High Tonnage, Lock Nut Hydraulic Cylinder - Enerpac HCRL25010

ENERPAC Original product
Net price (excl. VAT)
€0.00 €0.00
excl. Shipping Cost
Available Fast shipping
Item ENP-HCRL25010
Manufacturer no. HCRL25010
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.HCRL25010
Country of originUnited States
ConditionNeu
Add to Wish List Add to Compare
Artikel
ENP-HCRL25010
Model: HCRL25010 |ECCN: EAR99 | Harmonization: 8412210075
Series: HCRL |Product Line: Industrial Tools

  • Hydraulically controlled fast retraction
  • Lock nut provides mechanical load holding for a safe work environment
  • Designed to withstand up to 10% side-load of maximum capacity
  • Integrated tilt saddle allows up to 5 degrees of misalignment
  • Hardened surface resists side-loading and cyclic wear
  • Weather protected, inside and out
  • Replaceable bearings enclose the plunger external and internally for support
  • Certified lifting eyes, base mounting holes and collar thread as standard
  • Stop-ring to prevent plunger blow-out
  • Low friction lock nut, spin easy, save time and effort
  • The HCRL-Series Cylinders are available up to 1000-ton capacity and 24-inch stroke upon request. Contact Enerpac for more information.

Dimension imperial

Collapsed Height A (in)
21.3
Extended Height B (in)
31.14
Outside Diameter D (in)
11.42
Cylinder Bore Diameter E (in)
8.66
Base to Advance Port H1 (in)
2.8
Base to Retract Port H2 (in)
1.92
Saddle Diameter J1 (in)
6.3
Saddle Protrusion from Plunger K (in)
0.59
Lock Nut Height S (in)
2.17
Base Mounting Holes Bolt Circle U (in)
9.65
Base Mounting Holes Thread V
M12 x 1,75
Collar Thread Size W
M290 X 3
Collar Thread Length X (in)
3.33
Base Mounting Holes Thread Depth Z (in)
0.87

Dimension metric

Collapsed Height A (mm)
541
Extended Height B (mm)
791
Outside Diameter D (mm)
290
Cylinder Bore Diameter E (mm)
220
Plunger Diameter F (mm)
Tr190 X 6
Base to Advance Port H1 (mm)
71
Base to Retract Port H2 (mm)
49
Saddle Diameter J (mm)
160
Plunger Protrusion K (mm)
15
Lock Nut Height S (mm)
55
Base Mounting Holes Bolt Circle U (mm)
245
Base Mounting Holes Thread V
M12 x 1,75
Collar Thread Size W
M290 X 3
Collar Thread Length X (mm)
85
Base Mounting Holes Thread Depth Z (mm)
22
More Information
Hersteller-Nr HCRL25010
Manufacturer Enerpac
Country of Manufacture United States
Weight 244.000000
Hinweis Industriewerkzeuge
GPSR Herstellerdaten A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
Artikel-Authentizität Originalprodukt
Artikelzustand Neu
