Enerpac HCG506, 550 kN Capacity, 150 mm Stroke, Single-Acting, High Tonnage Hydraulic Cylinder
€1,100.58
Excl. 19% VAT ,
excl. Shipping Cost
Article
ENP-HCG506
Manufacturer Nr.
HCG506
HCG506, 550 kN Capacity, 150 mm Stroke, Single-Acting, High Tonnage Hydraulic Cylinder
Frequently Bought Together
-
This Item:
€1,100.58Excl. 19% VAT , excl. Shipping Cost
-
Enerpac HCRL5010, 479 kN Capacity, 250 mm Stroke, Double-Acting, High Tonnage, Lock Nut Hydraulic Cylinder
€3,699.31Excl. 19% VAT , excl. Shipping Cost
-
Enerpac HCR508, 550 kN Capacity, 200 mm Stroke, Double-Acting, High Tonnage Hydraulic Cylinder
€1,793.63Excl. 19% VAT , excl. Shipping Cost
Total price
Model: HCG506 |ECCN: EAR99 | Harmonization: 8412210075
Series: HCG |Product Line: Industrial Tools
Series: HCG |Product Line: Industrial Tools
- Hardened surface resists side-loading and cyclic wear
- 7% side-load resistance over full stroke
- Stop-ring to prevent plunger blow-out
- Weather protected, inside and out
- Upper and lower replaceable bearings enclose the cylinder plunger for support throughout the stroke
- Certified lifting eyes, base mounting holes and collar threads
Dimension imperial
Collapsed Height A (in)
11.14
Collapsed Height With Optional Tilt Saddle A1 (in)
11.69
Optional Tilt Saddle Addition To Collapsed Height A1 (in)
0.55
Optional Tilt Saddle Diameter J1 (in)
2.8
Extended Height B (in)
17.05
Outside Diameter D (in)
5.12
Cylinder Bore Diameter E (in)
3.94
Plunger Diameter F (in)
2.76
Base to Advance Port H (in)
1.5
Saddle Diameter J1 (in)
1.97
Saddle Protrusion from Plunger K (in)
0.12
Saddle Maximum Tilt Angle Radius (degrees)
5
Base Mounting Holes Thread V
M12 x 1,75
Collar Thread Size W
M130 x 2
Collar Thread Length X (in)
1.18
Dimension metric
Collapsed Height A (mm)
283
Collapsed Height With Optional Tilt Saddle A1 (mm)
297
Optional Tilt Saddle Addition To Collapsed Height A1 (mm)
14
Extended Height B (mm)
433
Outside Diameter D (mm)
130
Cylinder Bore Diameter E (mm)
100
Plunger Diameter F (mm)
70
Base to Advance Port H (mm)
38
Saddle Diameter J (mm)
50
Saddle Protrusion from Plunger K1 (mm)
3
Saddle Maximum Tilt Angle Radius (degrees)
5
Base Mounting Holes Bolt Circle U (mm)
105
Base Mounting Holes Thread V
M12 x 1,75
Collar Thread Size W
M130 x 2
Collar Thread Length X (mm)
30
Base Mounting Holes Thread Depth Z (mm)
22
| Manufacturer Nr. | HCG506 |
|---|---|
| Manufacturer | Enerpac |
| Weight | 24.000000 |
| Note | Industriewerkzeuge |
| Article authenticity | Original product |
| Condition of article | New |
Download
Customers Who Bought This Item Also Bought
Enerpac BRD91, 80 kN Capacity, 28 mm Stroke, Double-Acting, General Purpose Hydraulic Cylinder
€1,096.43
Excl. 19% VAT ,
excl. Shipping Cost
Enerpac RR7513, 718 kN Capacity, 333 mm Stroke, Double-Acting, General Purpose Hydraulic Cylinder
€5,006.56
Excl. 19% VAT ,
excl. Shipping Cost

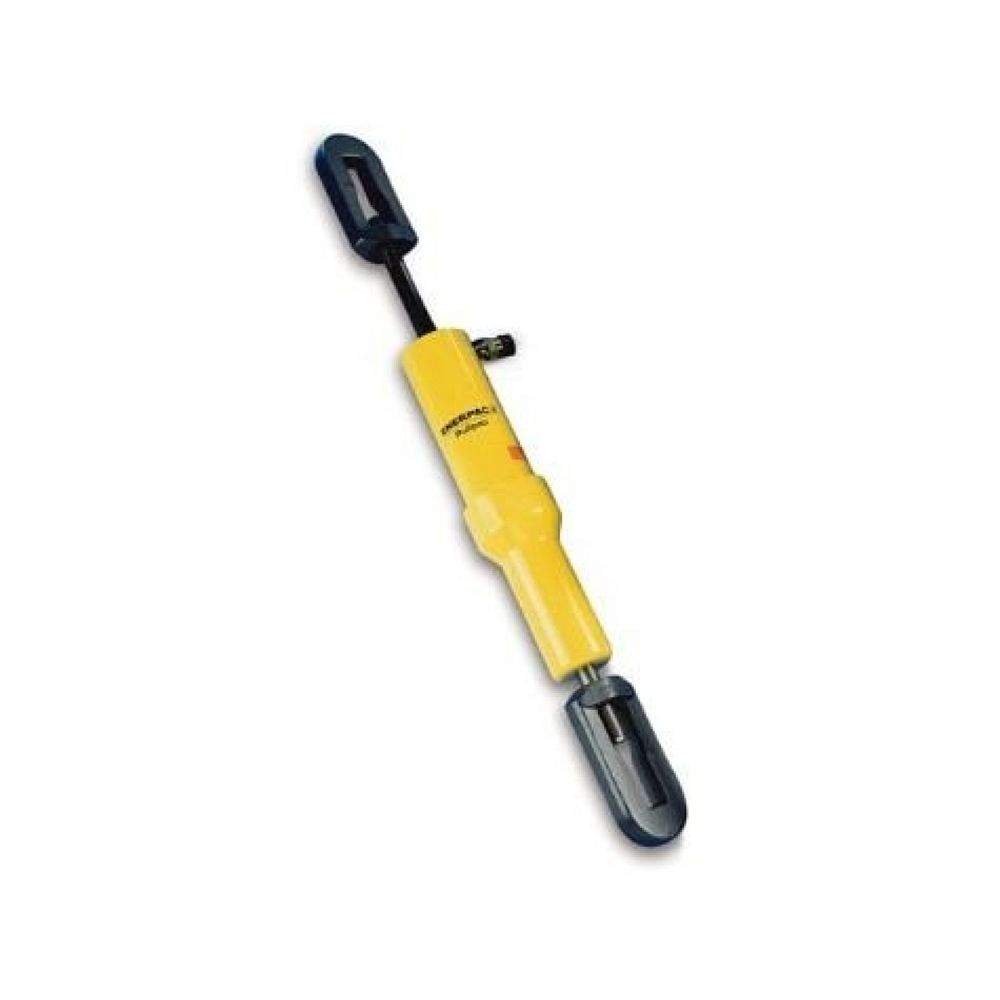

Enerpac BRP306, 325 kN Capacity, 154 mm Stroke, Pull Hydraulic Cylinder
€4,382.40
Excl. 19% VAT ,
excl. Shipping Cost

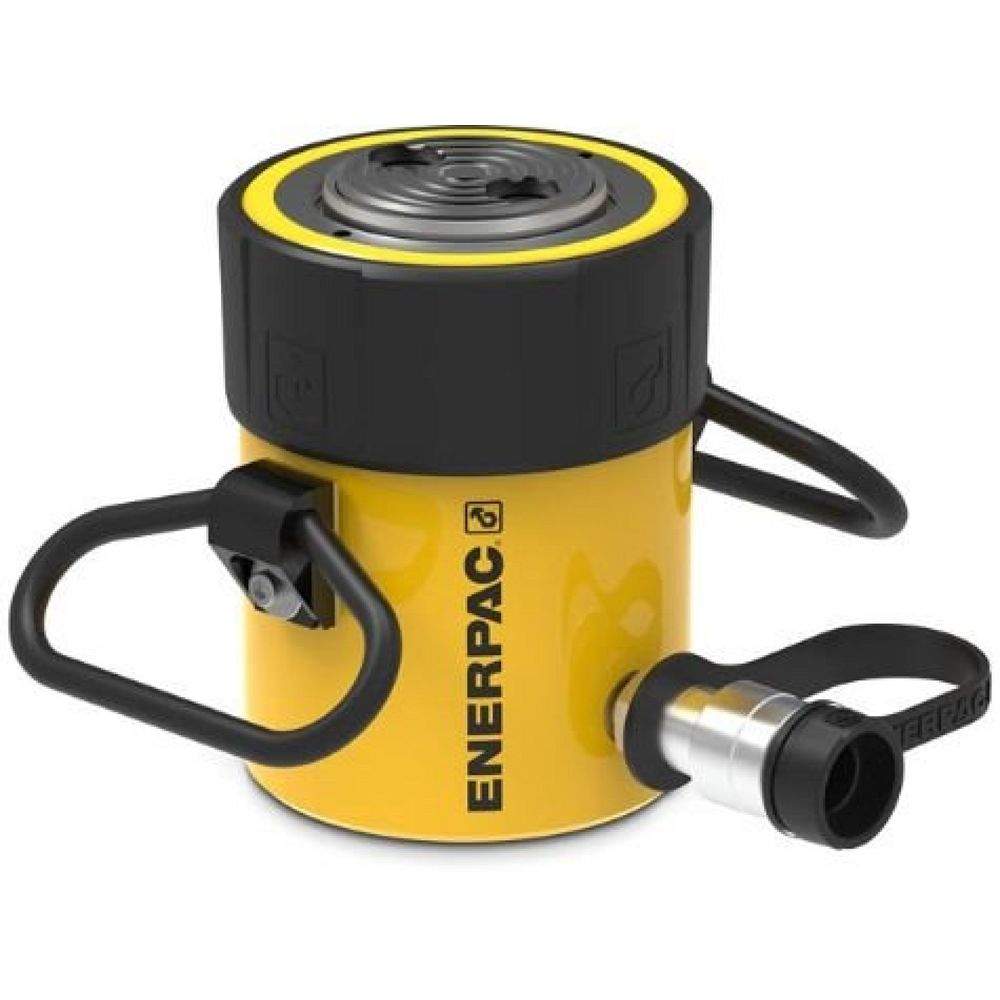

Enerpac RC502, 498 kN Capacity, 51 mm Stroke, General Purpose Hydraulic Cylinder
