Aventics 5/2-directional valve, Series 740 5727415302 V740-5/2DS-00000-07
€138.37
Excl. 19% VAT ,
excl. Shipping Cost
Article
AVE-5727415302
Manufacturer Nr.
5727415302
V740-5/2DS-00000-07
Frequently Bought Together
.jpg?width=152&height=190&store=en&image-type=small_image)
-
This Item:
€138.37Excl. 19% VAT , excl. Shipping Cost
-
Aventics 5/2-directional valve, Series 740 5727450420 V740-5/2AR-024DC-07
€128.04Excl. 19% VAT , excl. Shipping Cost
-

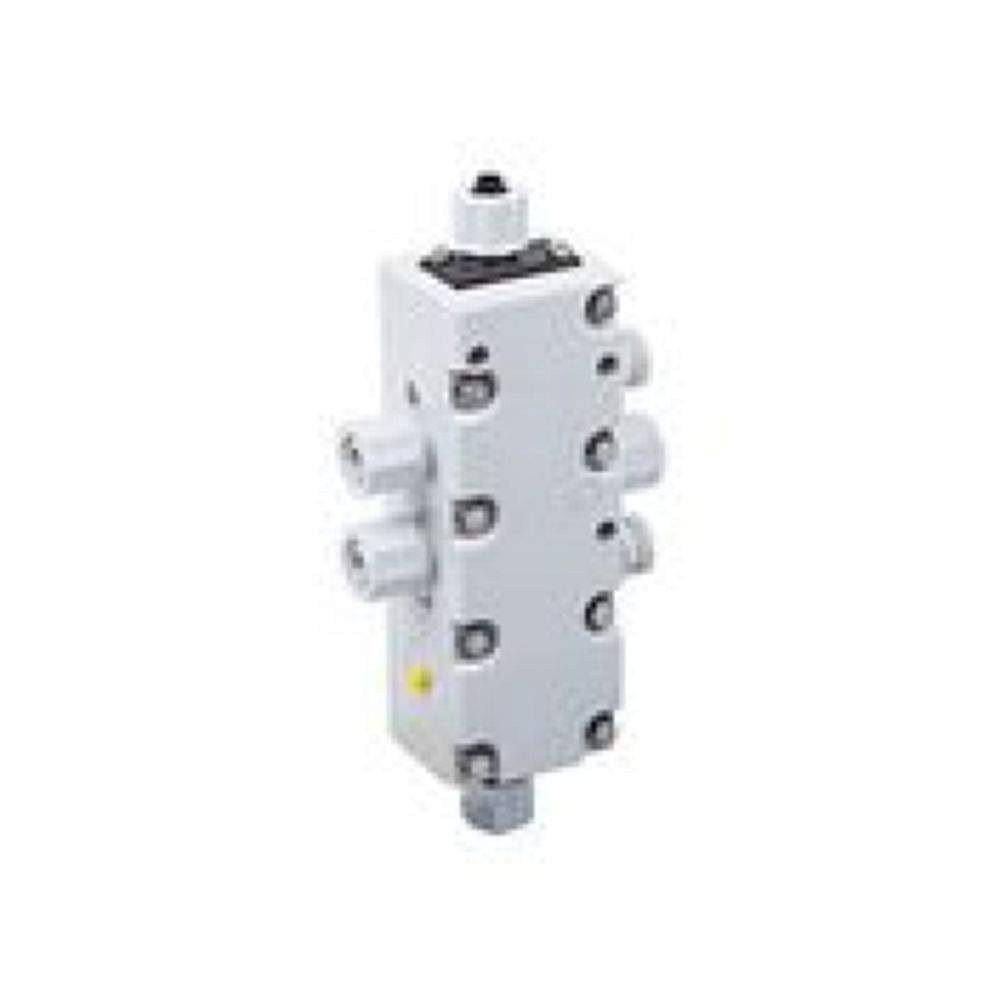

Aventics 5/2-directional valve, Series 740-CP 5717461000 V740-5/2DP-07-CP
€108.15Excl. 19% VAT , excl. Shipping Cost
Total price
| Activation | Electrically |
| Nominal flow Qn | 700 l/min |
| Switching principle | 5/2 |
| Compressed air connection output | Ø 8x1 |
| Working pressure min. | 1.5 bar |
| Working pressure max | 10 bar |
| Manual override | with detent |
| Electrical connection type | Plug |
| Electrical connection size | EN 175301-803, form A |
| Actuating control | Double Solenoid |
| Sealing principle | Soft Seal |
| Pilot | Internal |
| ATEX | ATEX optional |
| Valve type | Diaphragm poppet valve |
| basic valve with electrical connector | Basic valve without coil |
| Throttle | with throttle |
| Connection type | Pipe connection |
| Blocking principle | Plate principle, Single base plate principle |
| Can be assembled into blocks | Can be assembled into blocks |
| Min. ambient temperature | -15 °C |
| Max. ambient temperature | 50 °C |
| Min. medium temperature | -15 °C |
| Max. medium temperature | 50 °C |
| Medium | Compressed air |
| Max. particle size | 50 µm |
- Robust polymer housing
- Suitable for all air qualities
- For consistently high repeatability
- Base plate assembly and block assembly possible
- Versions also available with UL and ATEX coils
| Manufacturer Nr. | 5727415302 |
|---|---|
| Manufacturer | Aventics |
| GPSR manufacturer information | AVENTICS GmbH, Ulmer Straße 4, DE-30880 Laatzen, aventics.com |
| Weight | 0.280000 |
| HS-Code | 84819000 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought
Aventics 5/2-directional valve, Series 740-UL R432038438 V740-5/2DS-24VDC-CURUS
€203.57
Excl. 19% VAT ,
excl. Shipping Cost
Aventics 5/4-directional valve, Series 740 5727560920 V740-5/4CC-DA10-024DC-07-MODI
€390.67
Excl. 19% VAT ,
excl. Shipping Cost

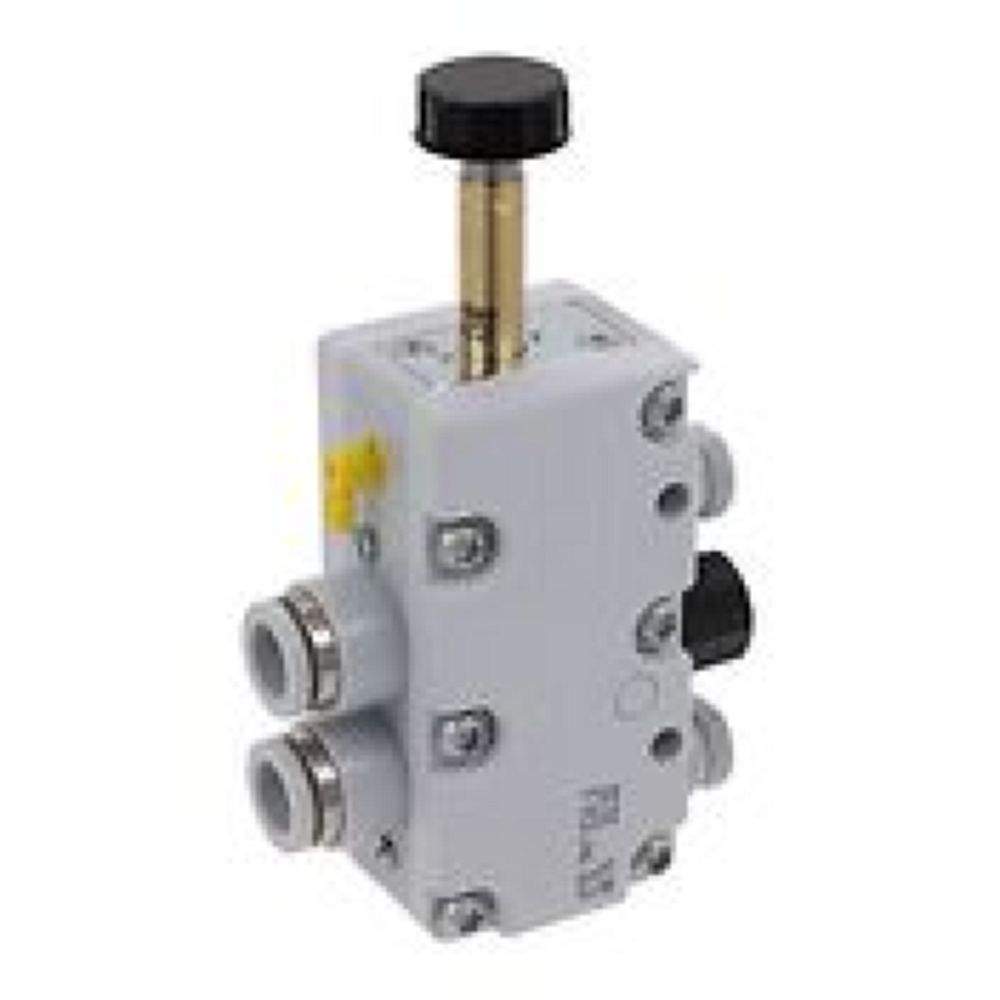

Aventics 5/2-directional valve, Series 740 5727475302 V740-5/2AS-00000-07
€111.45
Excl. 19% VAT ,
excl. Shipping Cost

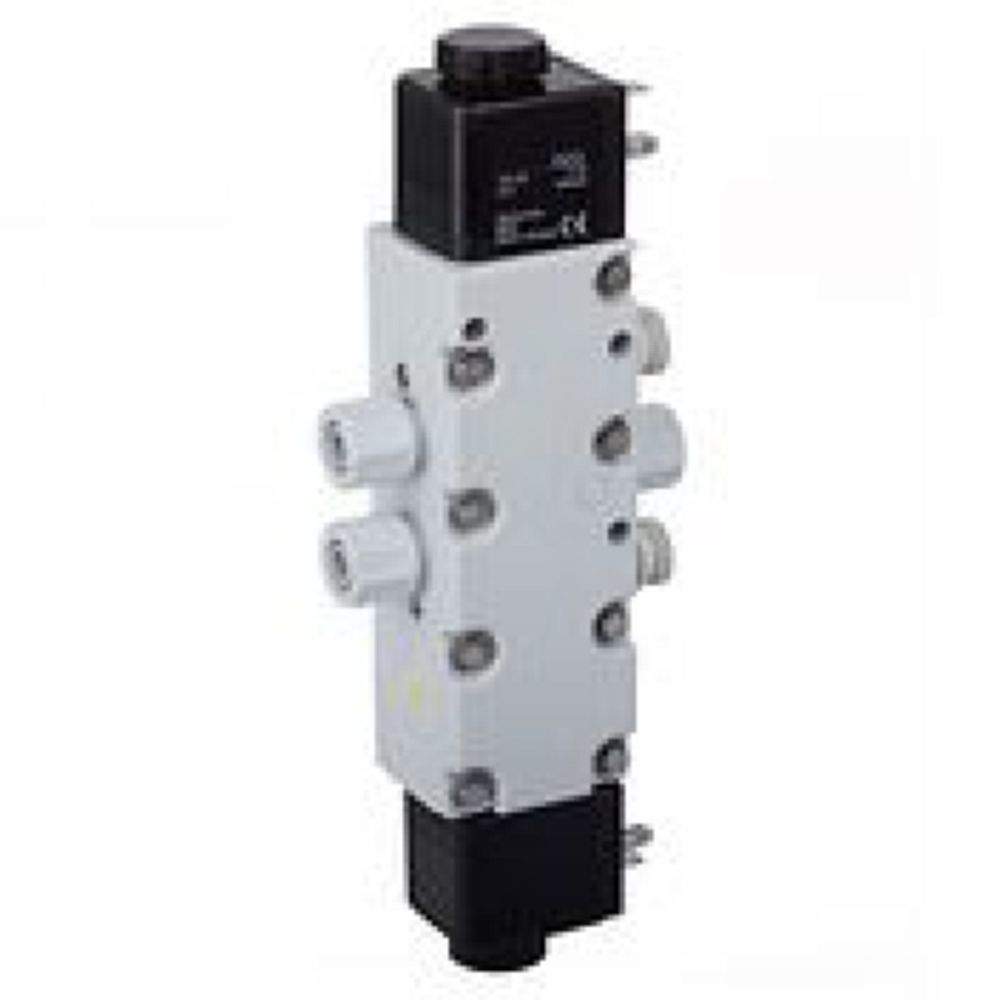

Aventics 5/2-directional valve, Series 740-CP 5727925280 V740-5/2DS-230AC-07-CP
€325.58
Excl. 19% VAT ,
excl. Shipping Cost
Aventics 5/2-directional valve, Series 740 5727460420 V740-5/2DS-024DC-07
€189.17
Excl. 19% VAT ,
excl. Shipping Cost

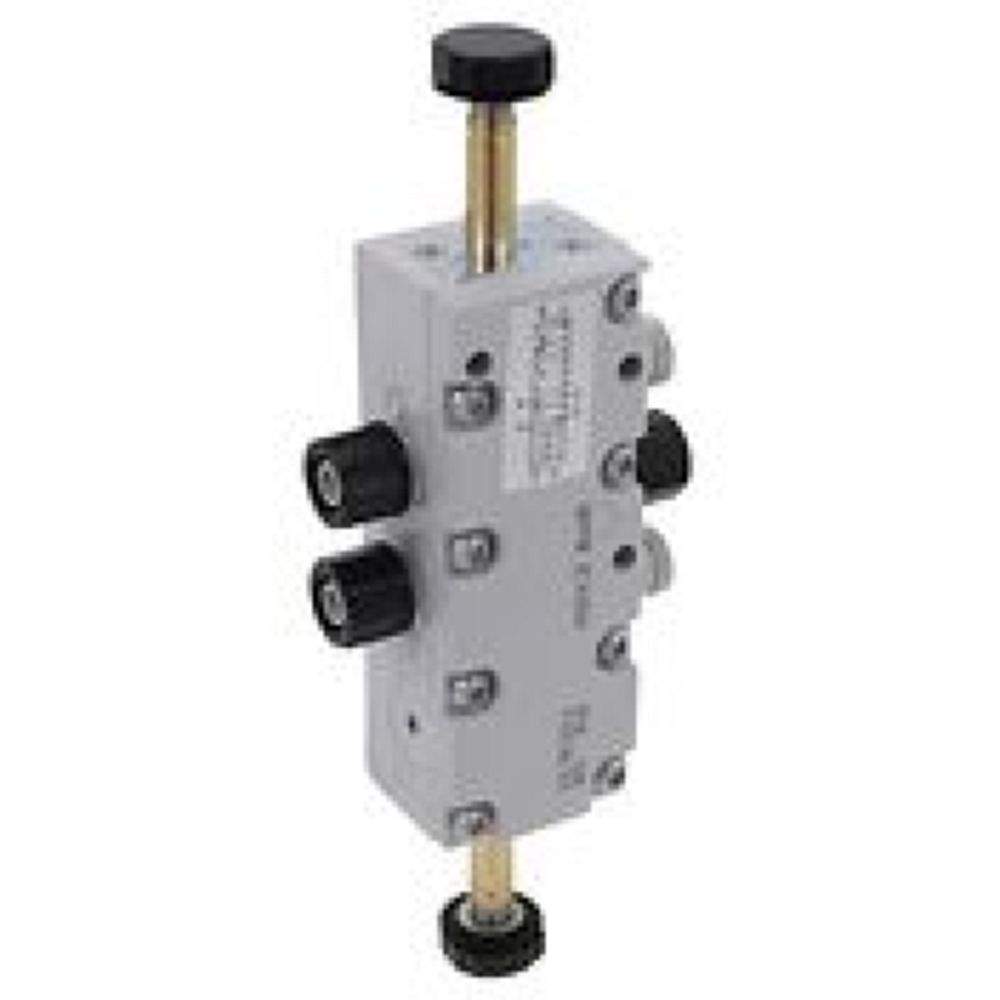

Aventics 5/4-directional valve, Series 740 5727565302 V740-5/4CC-DI08-NONE-07-BASIC
