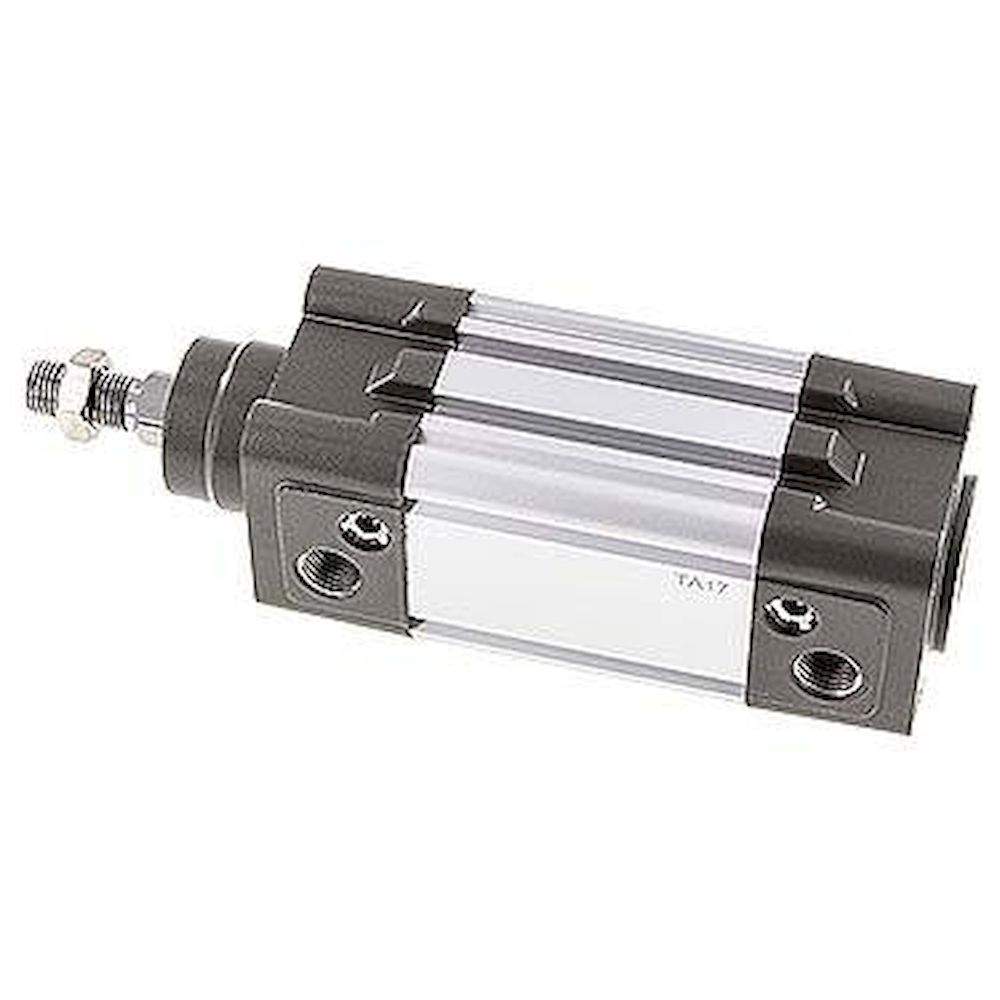

EMC XLE 40/25. ISO 15552 cylinders, piston 40 mm, stroke 25 mm, ECO

Name: EMC XLE 40/25. ISO 15552 cylinders, piston 40 mm, stroke 25 mm, ECO
Brand: E.MC
SKU: FL-XLE-40/25
Price: 51.91 EUR
Availability: InStock

€51.91

Excl. 19% VAT , excl. Shipping Cost

Article

FL-XLE-40/25

Manufacturer Nr.

XLE 40/25

ISO 15552 cylinders, piston 40 mm, stroke 25 mm, ECO

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: EMC XLE 40/25. ISO 15552 cylinders, piston 40 mm, stroke 25 mm, ECO
€51.91
Excl. 19% VAT , excl. Shipping Cost
ISO 15552 cylinders, piston 160 mm, stroke 600 mm, ECO
€1,094.77
Excl. 19% VAT , excl. Shipping Cost

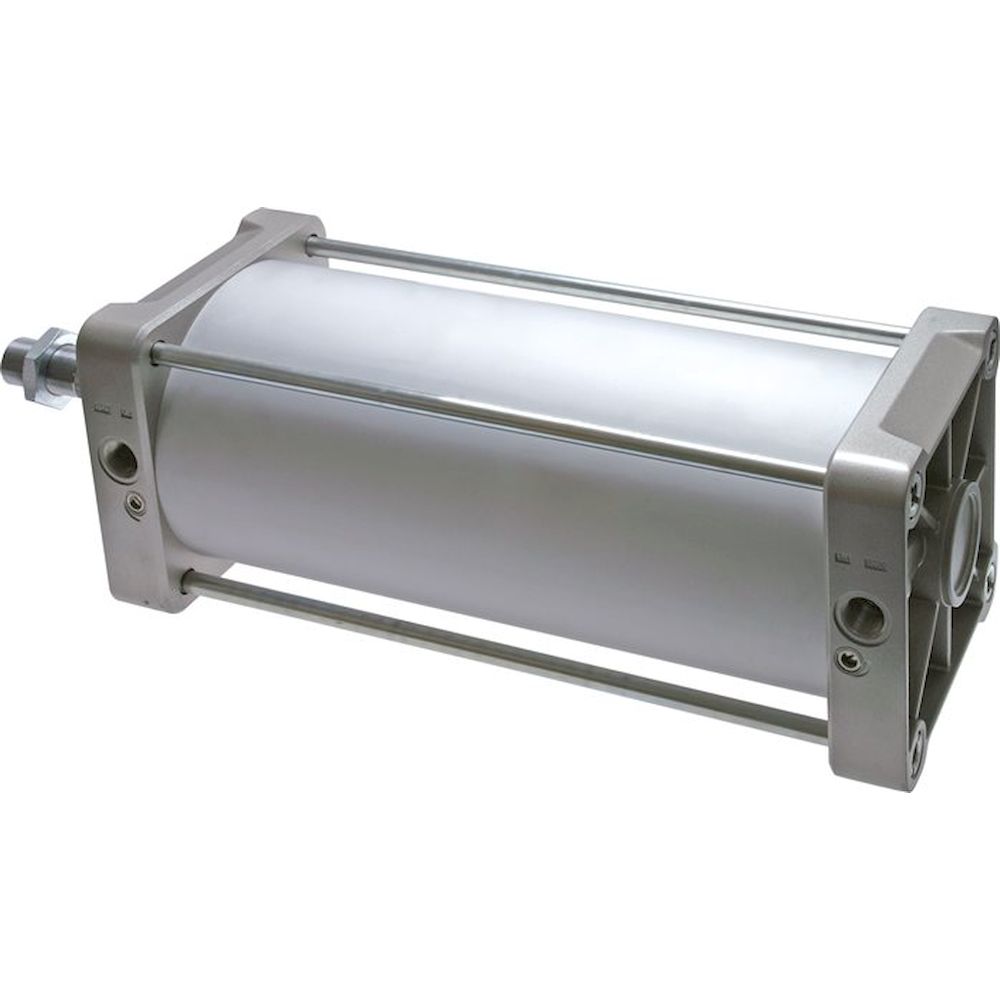

ISO 15552 cylinders, piston 250 mm, stroke 1000 mm, ECO
€4,203.63
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium section tube, Piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
D, A, Ø 125 and larger: C in combination with fastening C1 or C in combination with fastening C2

Piston diameter [mm]	40
Stroke [mm]	25
A (piston rod thread)	M 12x1,25
G (compressed air port)	G 1/4"
Repair sets	XLE 40 REP
B [mm]	16
C [mm]	35
D [mm]	21
F [mm]	24
G [mm]	30
H [mm]	135
K [mm]	3,5
M [mm]	54,0
N [mm]	38,0
CH [mm]	13
RT	M 6
