EMC XLE 32/40. ISO 15552 cylinders, piston 32 mm, stroke 40 mm, ECO

Name: EMC XLE 32/40. ISO 15552 cylinders, piston 32 mm, stroke 40 mm, ECO
Brand: E.MC
SKU: FL-XLE-32/40
Price: 46.31 EUR
Availability: InStock

€46.31

Excl. 19% VAT , excl. Shipping Cost

Article

FL-XLE-32/40

Manufacturer: E.MC

Manufacturer Nr.

XLE 32/40

ISO 15552 cylinders, piston 32 mm, stroke 40 mm, ECO

Skip to the end of the images gallery

Skip to the beginning of the images gallery

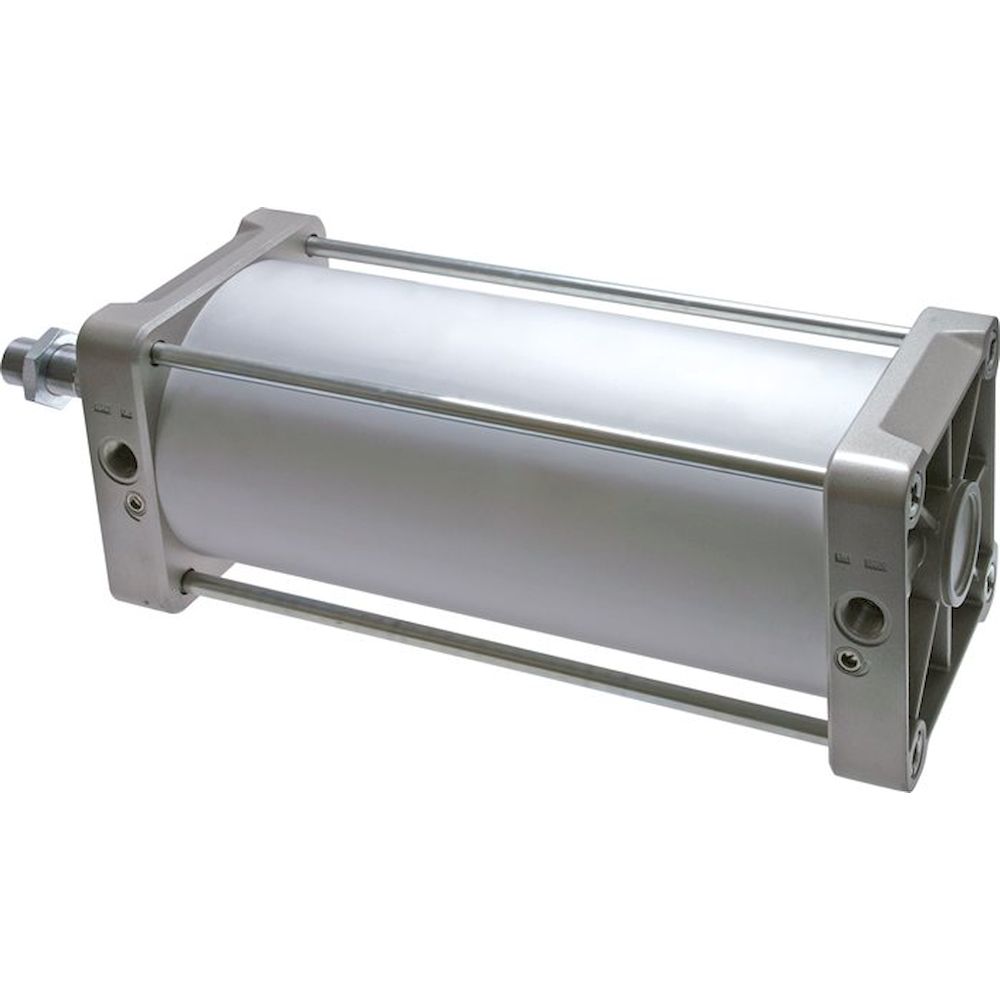

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: EMC XLE 32/40. ISO 15552 cylinders, piston 32 mm, stroke 40 mm, ECO
€46.31
Excl. 19% VAT , excl. Shipping Cost
EMC XLE 50/50. ISO 15552 cylinders, piston 50 mm, stroke 50 mm, ECO
€62.48
Excl. 19% VAT , excl. Shipping Cost
ISO 15552 cylinders, piston 125 mm, stroke 160 mm, ECO
€425.37
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Materials:
Head and base: Anodized aluminium, cylinder tube: Anodized aluminium section tube, Piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
with magnetic pistons and adjustable end position damping

Cylinder switch type:
D, A, Ø 125 and larger: C in combination with fastening C1 or C in combination with fastening C2

Piston diameter [mm]	32
Stroke [mm]	40
A (piston rod thread)	M 10x1,25
G (compressed air port)	G 1/8"
Repair sets	XLE 32 REP
B [mm]	12
C [mm]	30
D [mm]	19
F [mm]	22
G [mm]	26
H [mm]	120
K [mm]	3,0
M [mm]	46,5
N [mm]	32,5
CH [mm]	10
RT	M 6
