SV-34-V. Quick exhaust valve G 3/4", Standard with FKM seal
€44.69
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-SV-34-V
Manufacturer Nr.
SV 34-V
Quick exhaust valve G 3/4", Standard with FKM seal
Frequently Bought Together
-
This Item:
€44.69Excl. 19% VAT , excl. Shipping Cost
-
Airtec OR-18. OR valve G 1/8", Precision
€15.20Excl. 19% VAT , excl. Shipping Cost
-
SV-14-V. Quick exhaust valve G 1/4", Standard with FKM seal
€19.21Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Precision model: Body: Aluminium anodized, Seals: NBR, standard versions: Body: Nickel-plated brass, seals: NBR/polyurethane
Media:
oiled and unoiled filtered compressed air
Function:
These valves are used to vent the cylinders quickly and enhance the cylinder speed. For this, they are screwed directly on the cylinder using the connection 2. Breathing: The air flowing through the control valve can flow continuously from connection 1 to the connection 2. Venting: When the control valve switches over to venting, 1 becomes depressurized. The valve switches to flow from 2 to 3 and the air from the cylinder can be freely vented into the open.
Warning:
Only for use in cylinders where there is sufficient end position damping (adjustable cushion, shock absorber). When using a silencer in connection 3, this must be large enough to avoid dynamic pressure.
Precision model: Body: Aluminium anodized, Seals: NBR, standard versions: Body: Nickel-plated brass, seals: NBR/polyurethane
Media:
oiled and unoiled filtered compressed air
Function:
These valves are used to vent the cylinders quickly and enhance the cylinder speed. For this, they are screwed directly on the cylinder using the connection 2. Breathing: The air flowing through the control valve can flow continuously from connection 1 to the connection 2. Venting: When the control valve switches over to venting, 1 becomes depressurized. The valve switches to flow from 2 to 3 and the air from the cylinder can be freely vented into the open.
Warning:
Only for use in cylinders where there is sufficient end position damping (adjustable cushion, shock absorber). When using a silencer in connection 3, this must be large enough to avoid dynamic pressure.
| Manufacturer Nr. | SV 34-V |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571668532 |
| Weight | 0.500000 |
| HS-Code | 84799070 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought

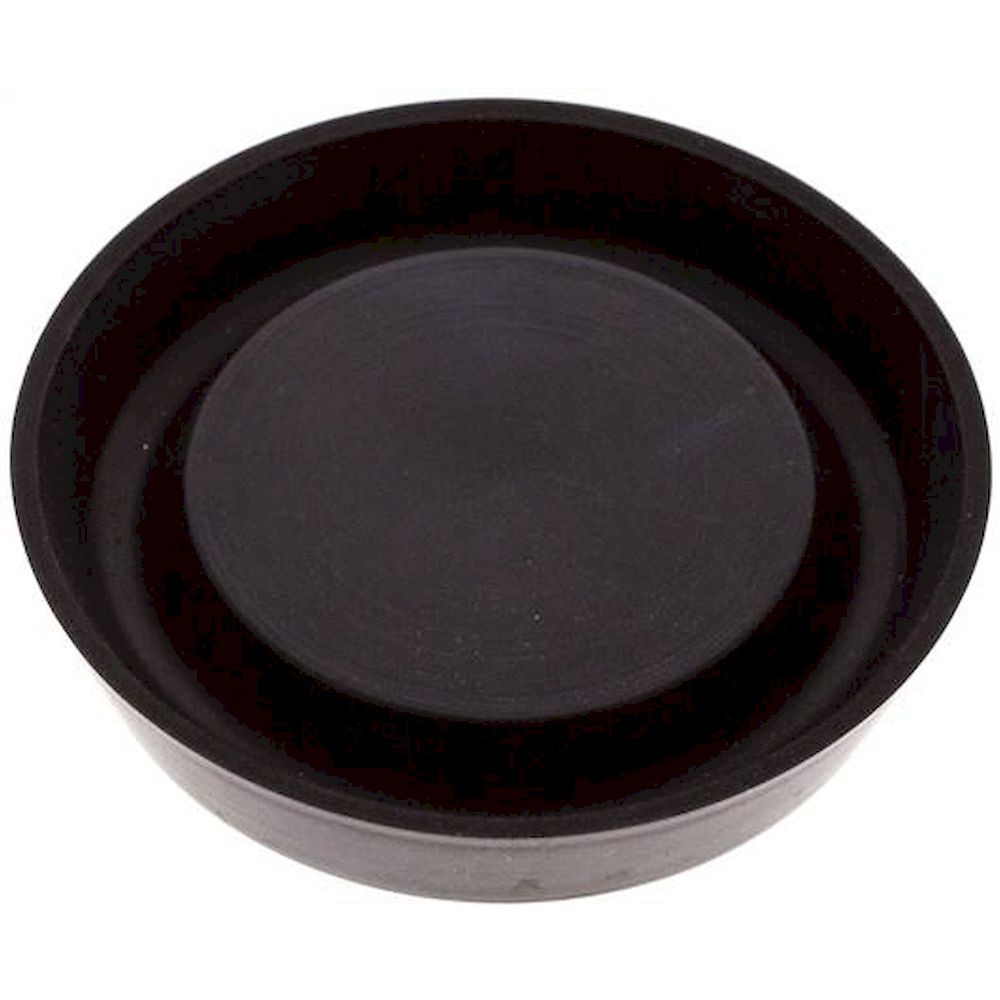

SV-34-MEMBRANE-V. Quick exhaust valve , Spare diaphragm (FKM)
€12.61
Excl. 19% VAT ,
excl. Shipping Cost
SV-38-V. Quick exhaust valve G 3/8", Standard with FKM seal
€22.95
Excl. 19% VAT ,
excl. Shipping Cost

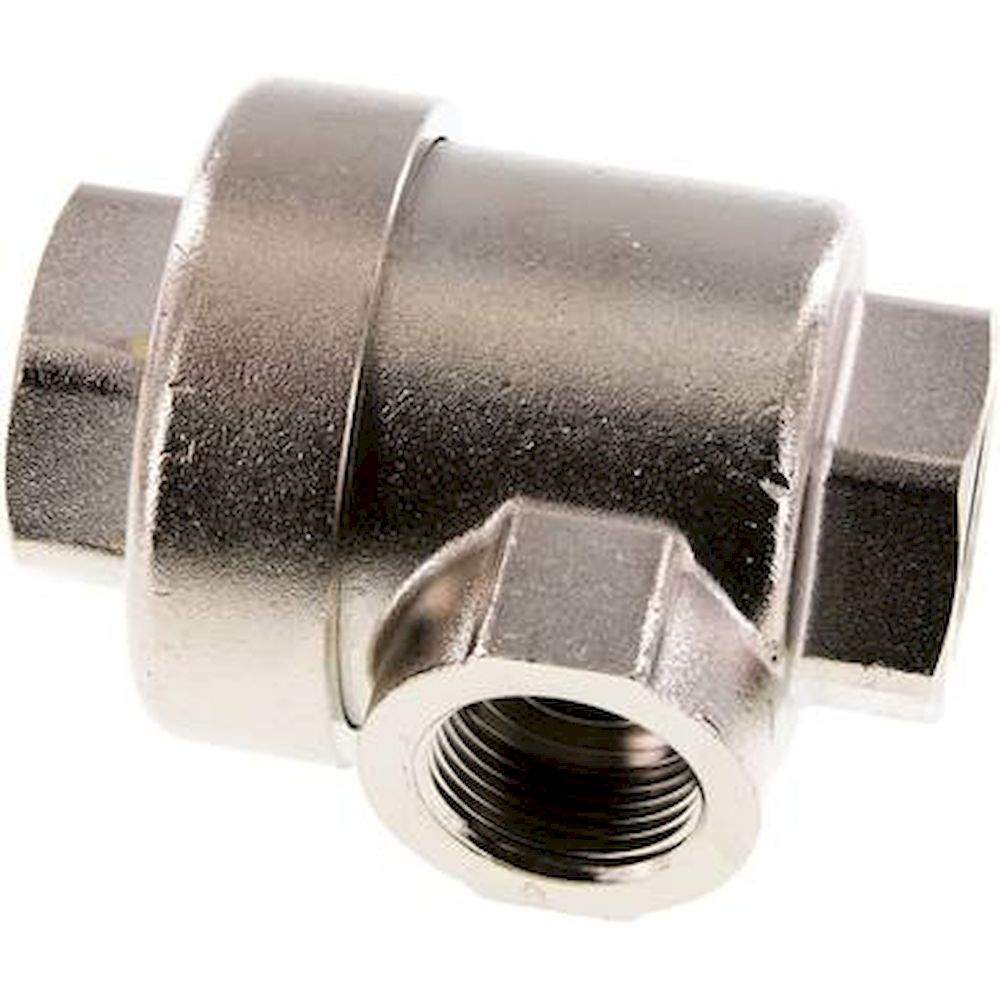

SV-10-V. Quick exhaust valve G 1", Standard with FKM seal
€163.57
Excl. 19% VAT ,
excl. Shipping Cost
Airtec SU-25-310. Signal interrupter M 5, Series Precision
€50.03
Excl. 19% VAT ,
excl. Shipping Cost

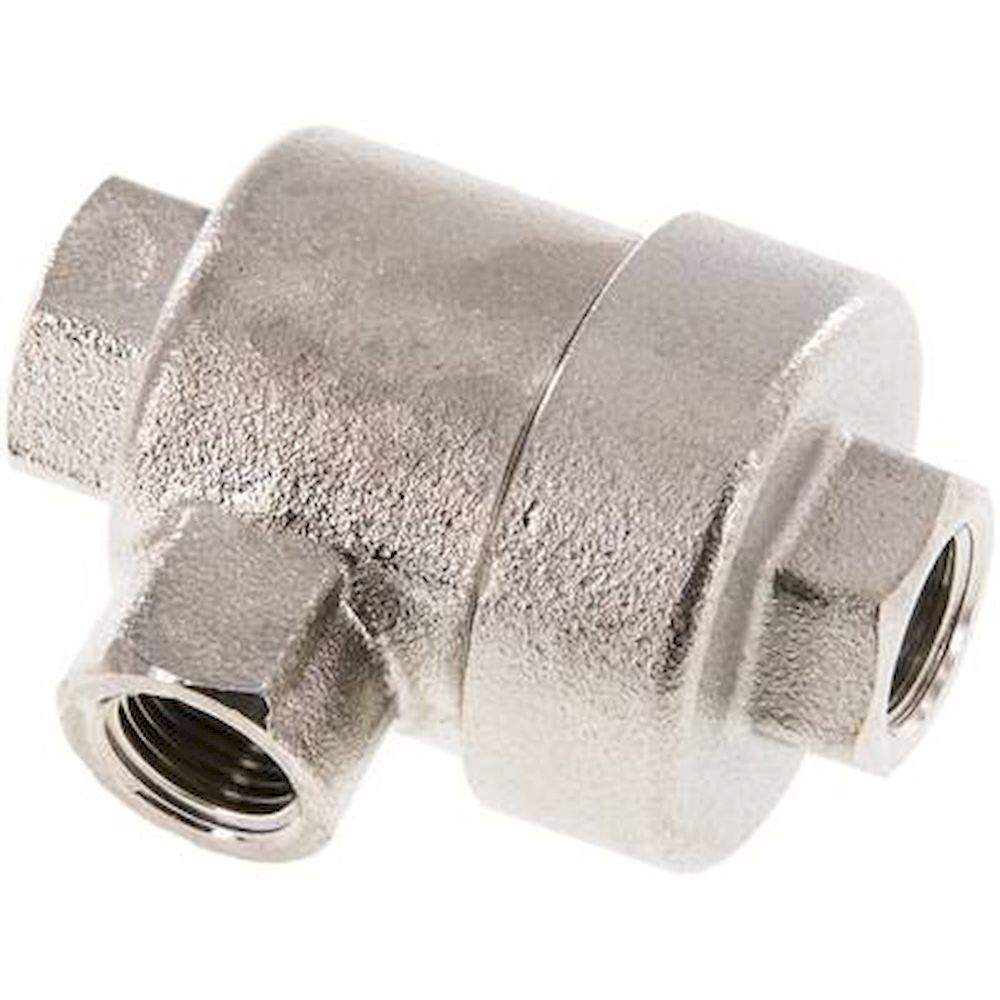

SV-18-V. Quick exhaust valve G 1/8", Standard with FKM seal
