EMC EU 25/20. Direct assembly cylinder, Piston 25mm, stroke 20mm, Standard
€43.16
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-EU-25/20
Manufacturer Nr.
EU 25/20
Direct assembly cylinder, Piston 25mm,stroke 20mm, Standard
Frequently Bought Together
-
This Item:
€43.16Excl. 19% VAT , excl. Shipping Cost
-
EMC EU 20 REP. Direktmontagezylinder Reparatursatz
€9.78Excl. 19% VAT , excl. Shipping Cost
-
EMC EUK 32/50. Direct assembly cylinder, Piston 32mm, stroke 50mm, non-rotating piston rod
€72.70Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Body: Anodized aluminium, piston rod: Stainless steel, Piston: Aluminium, Gaskets: NBR / PUR
Temperature range:
-10 to +60 °C
Operating pressure:
max. 7 bar
Version:
with magnetic piston, piston diameter 6 mm and 10 mm are supplied with two nuts on piston rod
Cylinder switch type:
D
Advantages:
•space saving through square housing, which allows a direct mounting without mounting material
•can be fastened on each of the 6 sides of the square,
•main mounting dimensions identical to SMC series CDU / CDUK
Body: Anodized aluminium, piston rod: Stainless steel, Piston: Aluminium, Gaskets: NBR / PUR
Temperature range:
-10 to +60 °C
Operating pressure:
max. 7 bar
Version:
with magnetic piston, piston diameter 6 mm and 10 mm are supplied with two nuts on piston rod
Cylinder switch type:
D
Advantages:
•space saving through square housing, which allows a direct mounting without mounting material
•can be fastened on each of the 6 sides of the square,
•main mounting dimensions identical to SMC series CDU / CDUK
| Piston diameter [mm] | 25 |
| Stroke [mm] | 20 |
| Version | Standard |
| E (piston rod thread) | M 8 |
| G (compressed air port) | M 5 |
| Repair sets | EU 25 REP |
| A1 [mm] | 50 |
| A2 [mm] | 73 |
| B [mm] | 32 |
| C [mm] | 50 |
| D [mm] | 10 |
| D1 [mm] | 23 |
| E1 [mm] | 15,5 |
| E2 [mm] | 18,0 |
| G1 [mm] | 23,0 |
| G2 [mm] | 10,0 |
| G3 [mm] | 4,5 |
| G4 [mm] | 6,0 |
| H [mm] | 9.5 (9.0 deep) |
| H1 [mm] | 5,5 |
| H2 [mm] | 20 |
| H3 [mm] | 10 |
| H4 [mm] | 20 |
| J | M 5 |
| J1 [mm] | 38 |
| J2 [mm] | 8 |
| SW [mm] | 8 |
| Manufacturer Nr. | EU 25/20 |
|---|---|
| Manufacturer | E.MC |
| EAN | 4050571872045 |
| Weight | 3.000000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought
EMC EUK 16/30. Direct assembly cylinder, Piston 16mm, stroke 30mm, non-rotating piston rod
€45.91
Excl. 19% VAT ,
excl. Shipping Cost
EMC EUK 20/10. Direct assembly cylinder, Piston 20mm, stroke 10mm, non-rotating piston rod
€44.78
Excl. 19% VAT ,
excl. Shipping Cost

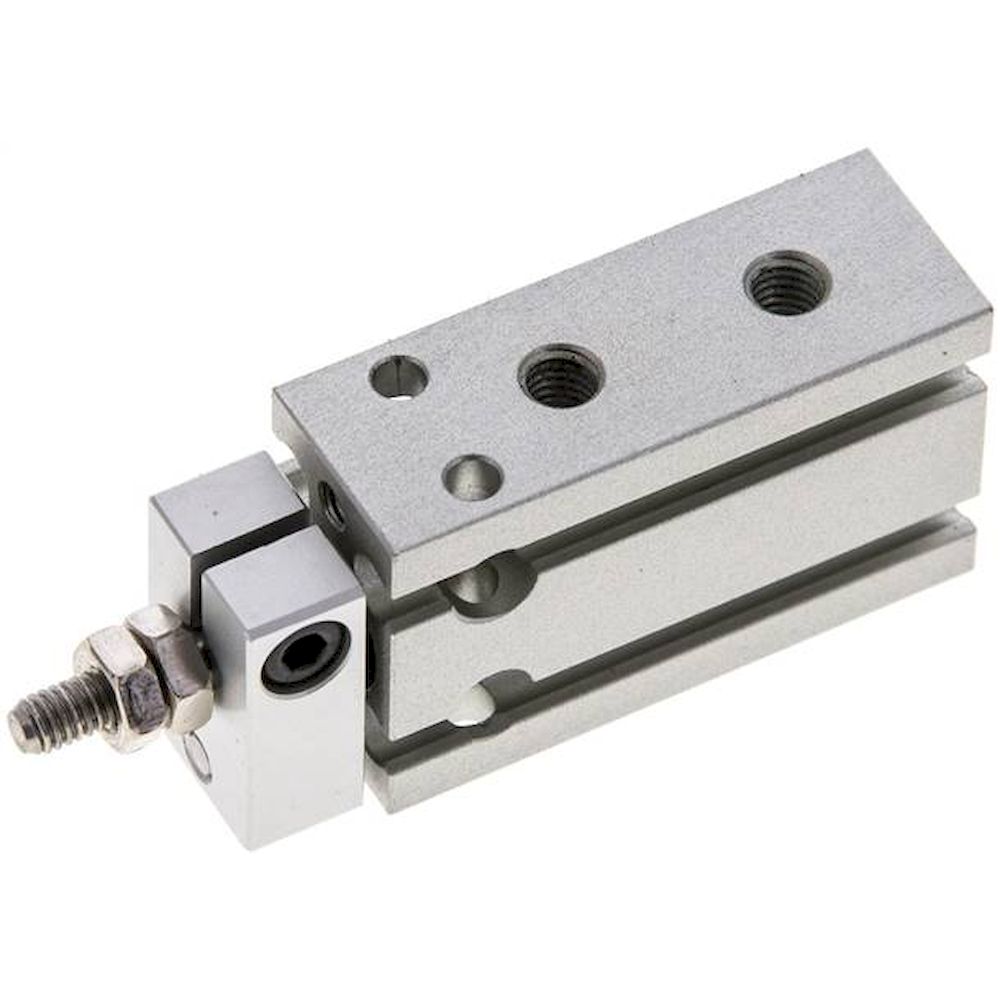

EMC EUK 10/5. Direct assembly cylinder, Piston 10mm, stroke 5mm, non-rotating piston rod
