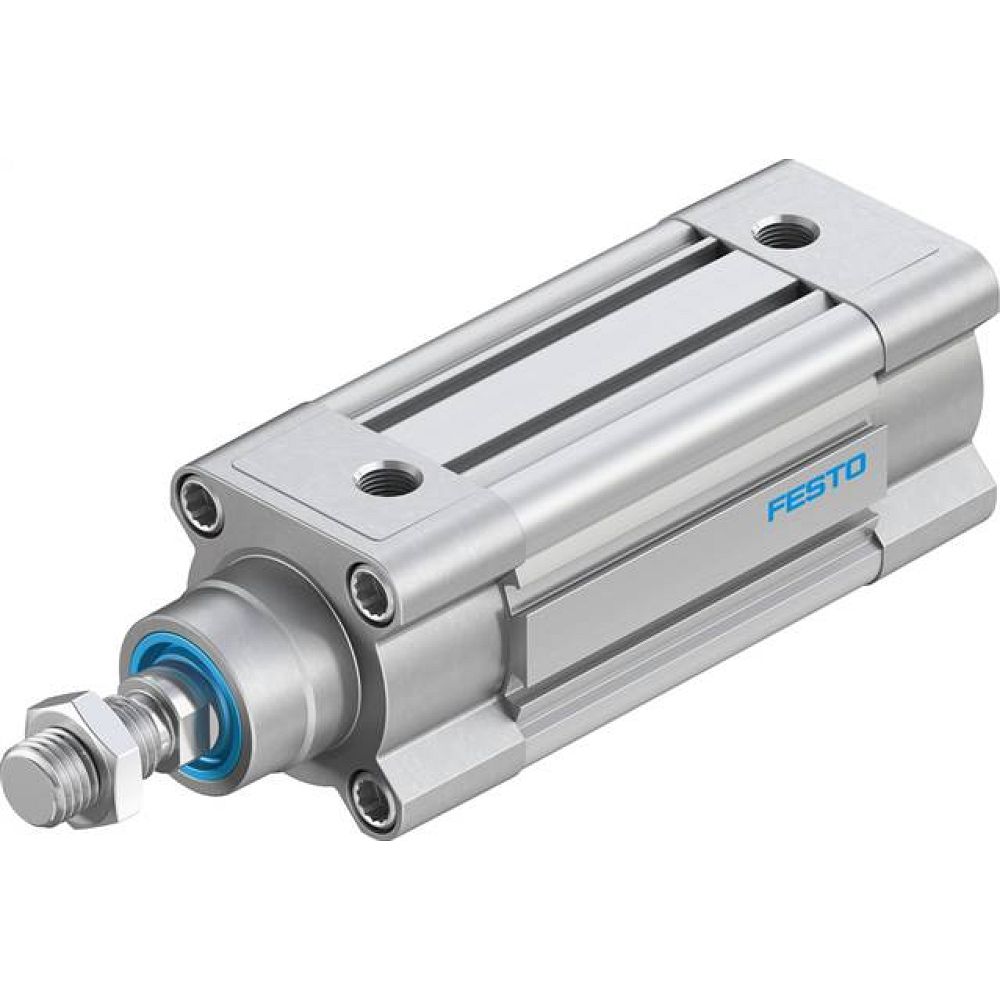

Festo 3659502. ISO cylinder DSBC-50-160-D3-PPSA-N3
€190.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-3659502
Manufacturer Nr.
DSBC-50-160-D3-PPSA-N3
ISO cylinder
Frequently Bought Together
-
This Item:
€190.00Excl. 19% VAT , excl. Shipping Cost
-
Festo 3660762. ISO cylinder DSBC-40-40-D3-PPSA-N3
€154.19Excl. 19% VAT , excl. Shipping Cost
-
Festo 3659388. ISO cylinder DSBC-32-300-D3-PPSA-N3
€152.40Excl. 19% VAT , excl. Shipping Cost
Total price
| Stroke | 160 mm |
| Piston diameter | 50 mm |
| Piston rod thread | M16x1.5 |
| Cushioning | Self-adjusting pneumatic end-position cushioning |
| Mounting position | optional |
| Conforms to standard | ISO 15552 |
| Piston-rod end | Male thread |
| Design | Piston Piston rod Profile barrel |
| Position detection | Via proximity switch |
| Symbol | 00992970 |
| Variants | Piston rod at one end |
| Operating pressure | 0.04 MPa ... 1.2 MPa |
| Operating pressure | 0.4 bar ... 12 bar |
| Mode of operation | Double-acting |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20 °C ... 80 °C |
| Impact energy in end positions | 1 J |
| Cushioning length | 22 mm |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke | 990 N |
| Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke | 1178 N |
| Moving mass for 0 mm stroke | 365 g |
| Additional moving mass per 10 mm stroke | 25 g |
| Basic weight for 0 mm stroke | 1216 g |
| Additional weight per 10 mm stroke | 78 g |
| Type of mounting | Either: Via female thread With accessories |
| Pneumatic connection | G1/4 |
| Note on materials | RoHS-compliant |
| Material cover | Die-cast aluminium, coated |
| Material piston seal | TPE-U(PU) |
| Material piston | Wrought aluminium alloy |
| Material piston rod | High-alloy steel |
| Material piston rod wiper | TPE-U(PU) |
| Buffer seal material | TPE-U(PU) |
| Cushioning piston material | POM |
| Material cylinder barrel | Smooth-anodised wrought aluminium alloy |
| Material nut | Galvanised steel |
| Material rod wiper | TPE-E |
| Material bearing | Metal polymer compound |
| Material collar screws | Galvanised steel |
| Manufacturer Nr. | DSBC-50-160-D3-PPSA-N3 |
|---|---|
| Manufacturer | Festo |
| EAN | 4052568273057 |
| Weight | 2.200000 |
| HS-Code | 84123100 |
