Festo 578306. Connector NPQH-D-S8-Q6-P10

Name: Festo 578306. Connector NPQH-D-S8-Q6-P10
Brand: Festo
SKU: FES-578306
Price: 4.57 EUR
Availability: InStock

€4.57

Excl. 19% VAT , excl. Shipping Cost

Article

FES-578306

Manufacturer Nr.

NPQH-D-S8-Q6-P10

Connector

Festo 578306. Connector NPQH-D-S8-Q6-P10 is available to buy in increments of 10

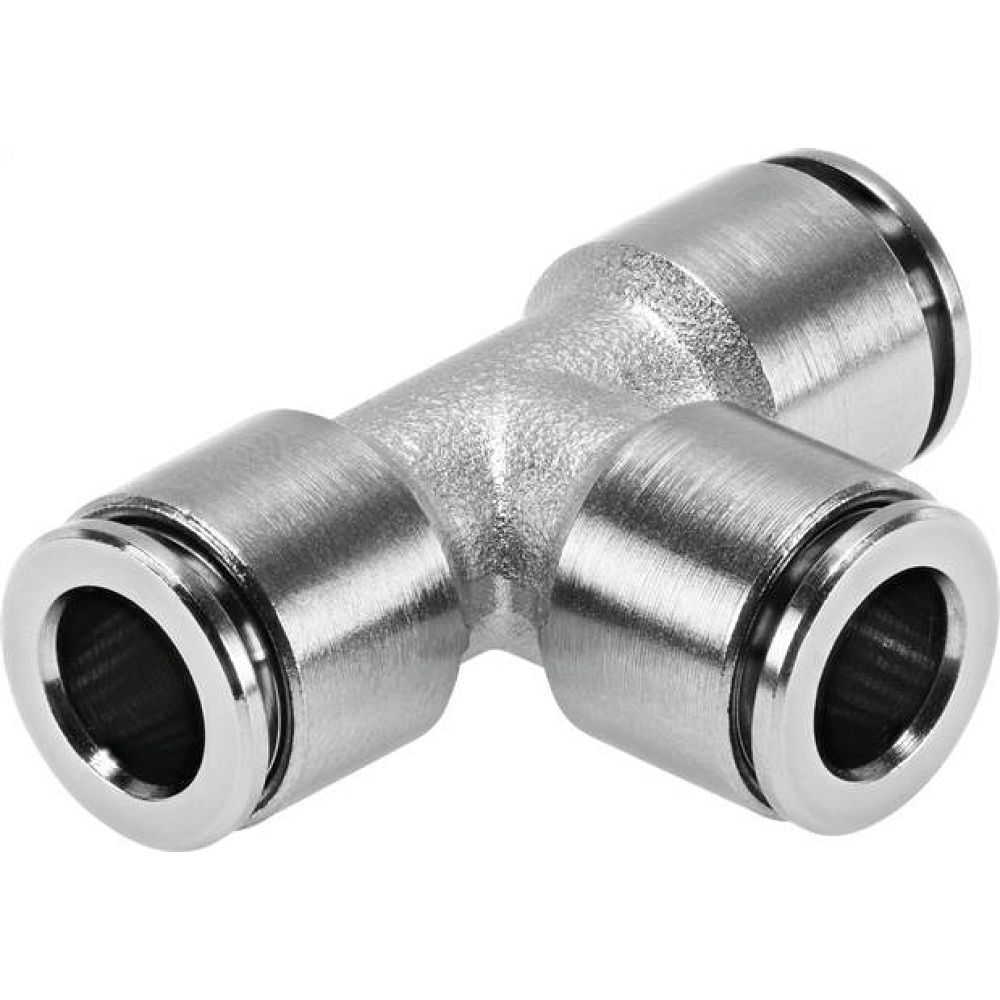

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Festo 578306. Connector NPQH-D-S8-Q6-P10
€4.57
Excl. 19% VAT , excl. Shipping Cost
Festo 578300. Push-in bulkhead connector NPQH-H-Q6-E-P10
€5.74
Excl. 19% VAT , excl. Shipping Cost
Festo 578311. Connector NPQH-D-S12-Q8-P10
€6.54
Excl. 19% VAT , excl. Shipping Cost

Total price

Size	Standard
Nominal size	5 mm
Tubing insertion depth	15.8 mm
Mounting position	optional
Design	Straight design
Size of pack	10
Design	Push-pull principle
Symbol	00997424
Operating pressure complete temperature range	-0.095 MPa ... 2 MPa
Operating pressure complete temperature range	-0.95 bar ... 20 bar
Operating pressure complete temperature range	-13.775 psi ... 290 psi
Note on operating pressure	Water: max. 0.6 MPa at 0 - 50 °C
Certificate issuing authority	NSF C0523185
Operating medium	Compressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
Note on operating and pilot medium	Lubricated operation possible
Corrosion resistance class CRC	3 - high corrosion stress
LABS (PWIS) conformity	VDMA24364-B1/B2-L
Cleanroom class	Class 4 according to ISO 14644-1
Suitable for use with food	See declaration of conformity NSF/ANSI 169
Ambient temperature	0 °C ... 150 °C
Product weight	11.7 g
Pneumatic connection, port 1	Push-in sleeve Ø 8 mm
Pneumatic connection, port 2	For tubing outside diameter of 6 mm
Note on materials	RoHS-compliant
Material housing	Brass, chemically nickel-plated
Guard ring material	PEI
Material release ring	Brass, chemically nickel-plated
Material tubing seal	FPM
Material tubing clamp component	High-alloy stainless steel
Thrust ring material	PEI
