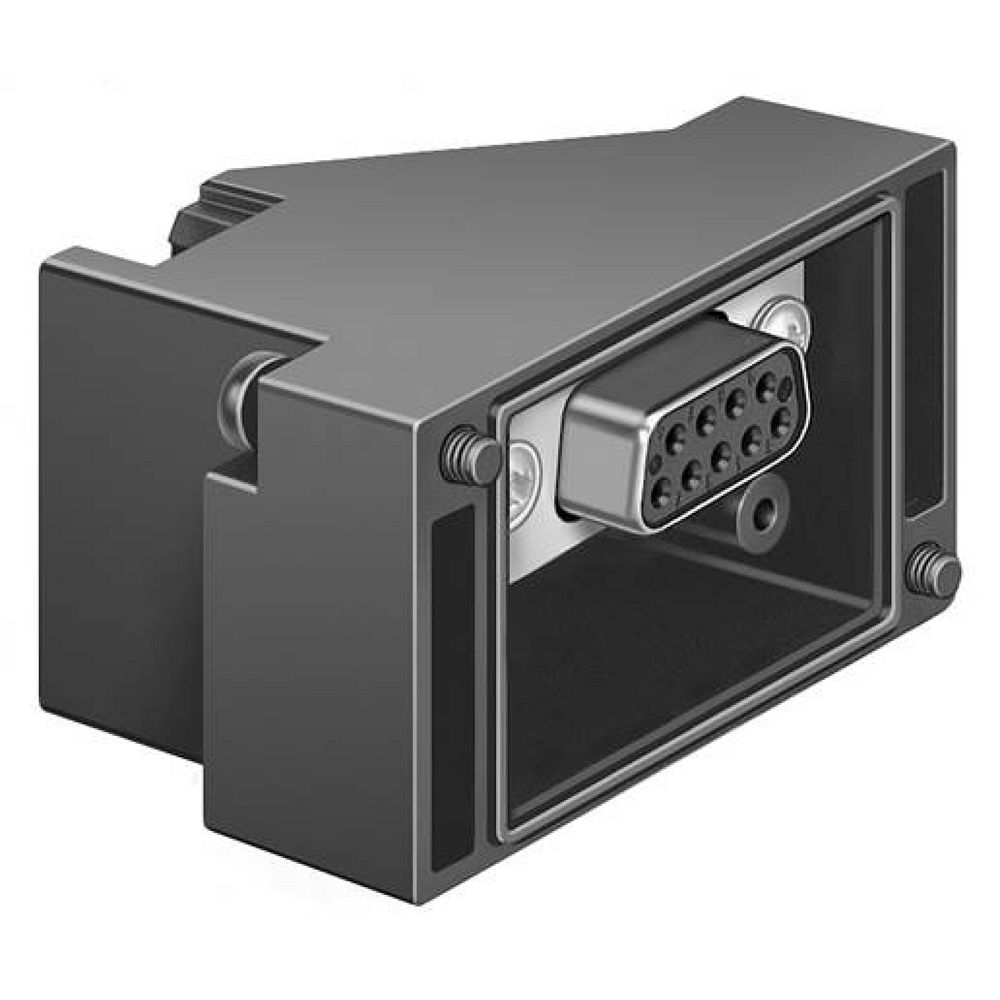

Festo 177675. Plug socket SD-SUB-D-BU15
€17.38Excl. 19% VAT , excl. Shipping Cost
Total price
Based on standard | EN 61076-2-104 EN 61984 |
Approval | c UL us - Recognized (OL) |
Frequency of connection | 3 |
Product weight | 7.8 g |
Electrical connection | 4-pin M8x1 Straight plug/insulation displacement connector |
Operational voltage range DC | 0 V ... 32 V |
Operational voltage range AC | 0 V ... 32 V |
Current rating at 40° C | 4 A |
Immunity to surge | 0.8 kV |
Permissible cable diameter | 2.5 mm ... 5.1 mm |
Individual wire diameter | 0.1 mm |
Wire diameter | 0.9 mm ... 1.6 mm |
Connection cross section | 0.14 mm² ... 0.34 mm² |
Degree of protection | IP65 IP67 |
Ambient temperature | -25 °C ... 85 °C |
LABS (PWIS) conformity | VDMA24364-B2-L |
Note on materials | RoHS-compliant |
Pollution degree | 3 |
Corrosion resistance class CRC | 1 - Low corrosion stress |
Material housing | PA Die-cast zinc Nickel-plated |
Material screw-type lock | Nickel-plated brass |
Material seals | FPM PUR |
Material electrical contact | Bronze |
Permissible insulating sheath | PP PVC TPE-E |
Manufacturer Nr. | NECU-S-M8G4-HX |
---|---|
Manufacturer | Festo |
EAN | 4052568056650 |
Weight | 0.013000 |
HS-Code | 85366990 |
