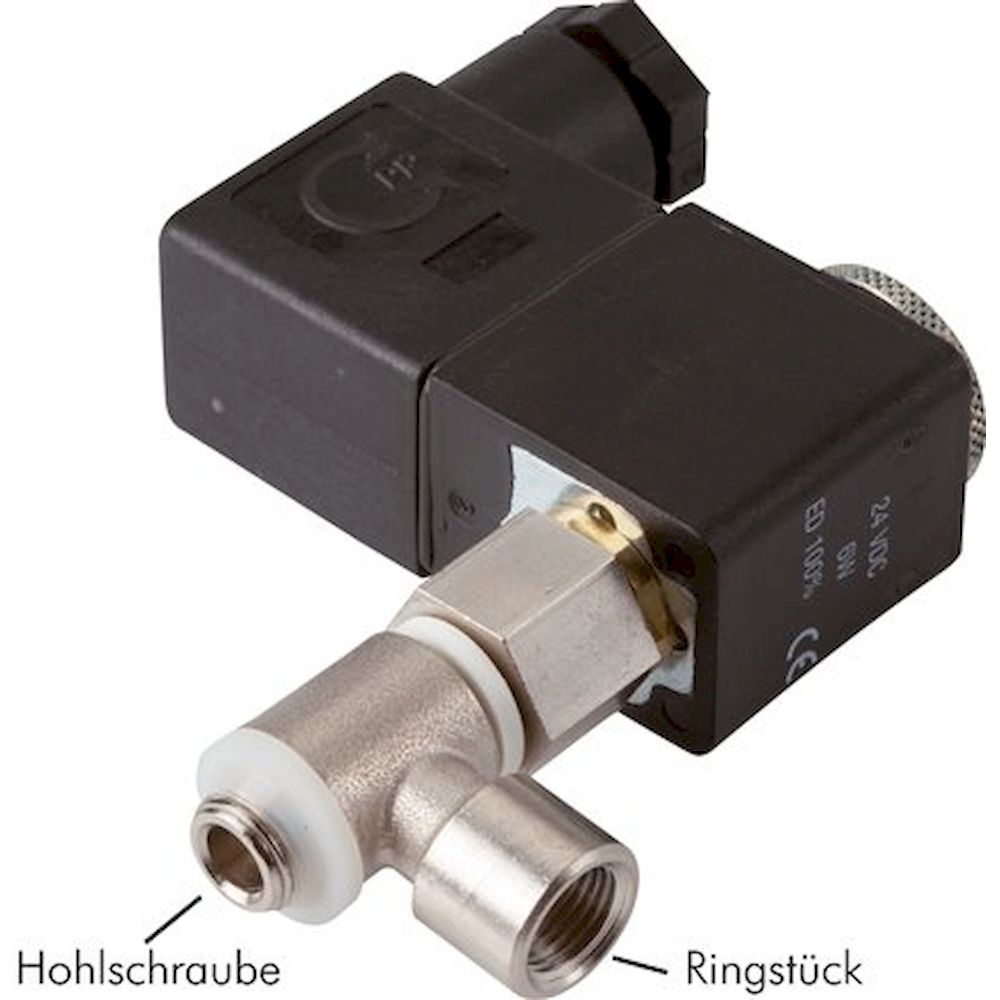

MHZO-2186-230V. Banjo bolt solenoid valve G 1/8"-8x6, 2/2-way (normally open), 230V AC

Materials:
Banjo bolt and banjo: Nickel-plated brass, internal parts: Brass / stainless steel, seals: FKM/PA/PVC

Temperature range:
-20°C to +50°C

Media:
lubricated and unlubricated, filtered compressed air, neutral gases

Switching time:
< 12 ms

Control voltages:
Standard: 24 V DC, 230 V AC, upon request other voltages

Voltage tolerance:
± 10 %

Protection class:
IP 65

Structural shape solenoid coil:
U (plug size 1)

Operating recommendations:
Solenoid with "pressure input banjo bolt" are suitable for the assembly on a central compressed air supply, to control a consumer via the banjo. Solenoid valves with "pressure input banjo" can be screwed directly into a consumer (e.g. pneumatic cylinder) via the banjo and supplied with compressed air via the banjo. If a pneumatic cylinder should be controlled, then we recommend installing a NO valve (MHZO...) in one connection and an NC valve (MHZ...) in the other connection.

Advantages:
•economical price,
•compact design

Note:
We recommend ordering an SD 50 silencer separately for the 3/2-directional valves, which can be screwed into the anchor hole..

Information:
These valves are always supplied with a solenoid coil and a connector plug.
