Festo 161981. Proportional directional control valve MPYE-5-3/8-420-B
€855.90
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-161981
Manufacturer Nr.
MPYE-5-3/8-420-B
Proportional directional control valve
Frequently Bought Together
-
This Item:
€855.90Excl. 19% VAT , excl. Shipping Cost
-

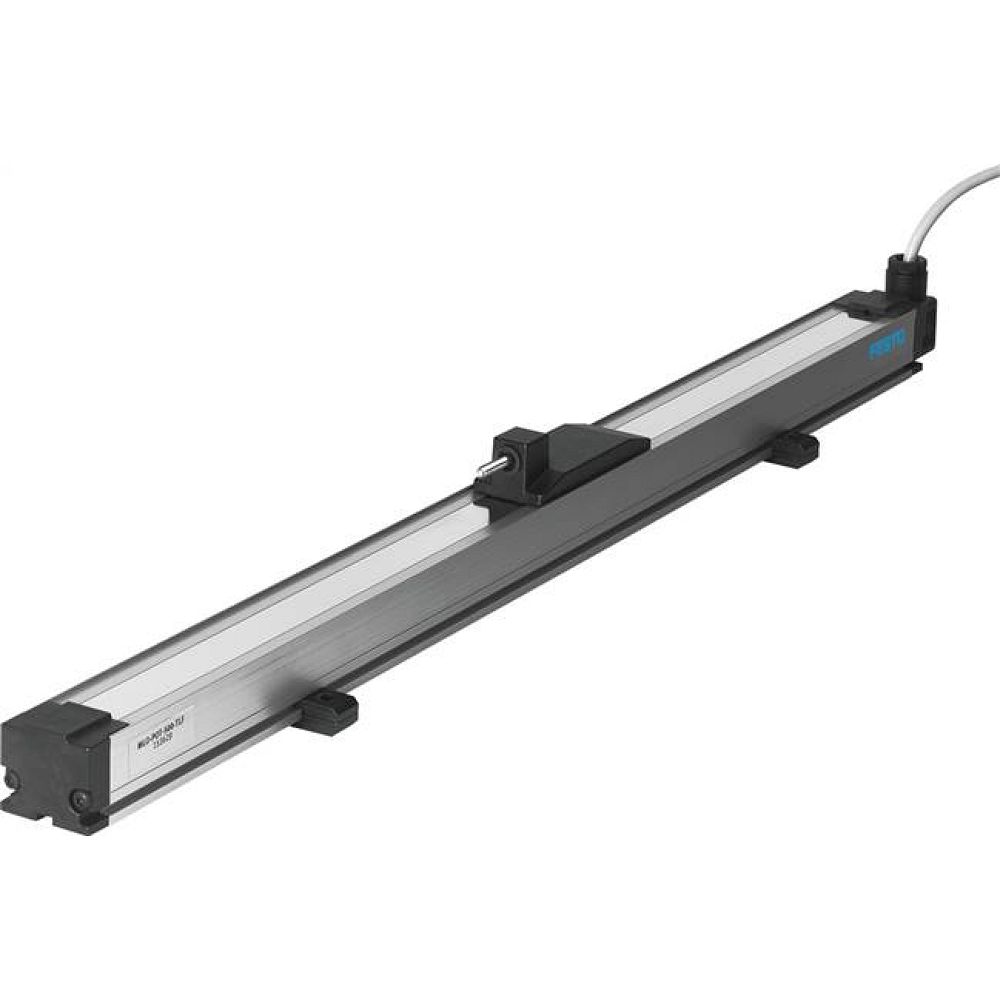

Festo 152634. Displacement encoder MLO-POT-1500-TLF
€1,165.66Excl. 19% VAT , excl. Shipping Cost
-
Festo 537321. End position controller SPC11-INC
€723.60Excl. 19% VAT , excl. Shipping Cost
Total price
| Nominal size | 10 mm |
| Type of actuation | Electric |
| Sealing principle | Hard |
| Mounting position | optional |
| Design | Piston gate valve |
| Type of reset | Magnetic spring |
| Safety instructions | Safety position MPYE: if the power supply cable is blocked, the valve assumes the closed mid-position. |
| Type of piloting | Direct |
| Flow direction | Non-reversible |
| Symbol | 00995308 |
| Valve function | 5/3 closed |
| Reverse polarity protection | For setpoint value |
| Operating pressure | 0 MPa ... 1 MPa |
| Operating pressure | 0 bar ... 10 bar |
| b value | 0.21 |
| C value | 9 l/sbar |
| Standard nominal flow rate | 2000 l/min |
| Limit frequency | 70 Hz |
| Max. hysteresis | 0.4 % |
| Operational voltage range DC | 17 V ... 30 V |
| Residual ripple | 5 % |
| SETPOINT/ACTUAL values | Current type 4-20 mA |
| Approval | RCM trademark |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive In accordance with EU RoHS Directive |
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Operating medium | Compressed air to ISO 8573-1:2010 [6:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Media temperature | 5 °C ... 40 °C |
| Degree of protection | IP65 |
| Ambient temperature | 0 °C ... 50 °C |
| Product weight | 685 g |
| Electrical connection | 4-pin M12x1 Plugs Round design |
| Type of mounting | With through-hole |
| Pneumatic connection, port 1 | G3/8 |
| Pneumatic connection, port 2 | G3/8 |
| Pneumatic connection, port 3 | G3/8 |
| Pneumatic connection, port 4 | G3/8 |
| Pneumatic connection, port 5 | G3/8 |
| Note on materials | RoHS-compliant |
| Material cover | ABS Coated |
| Material seals | NBR |
| Material housing | Aluminium Anodised |
| Manufacturer Nr. | MPYE-5-3/8-420-B |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568129491 |
| Weight | 0.800000 |
| HS-Code | 84812090 |
| Article authenticity | Original product |
| Condition of article | New |
