Festo 12743. Precision one-way flow control valve GRP-10-PK-3
€109.76
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-12743
Manufacturer Nr.
GRP-10-PK-3
Precision one-way flow control valve
Frequently Bought Together
-
This Item:
€109.76Excl. 19% VAT , excl. Shipping Cost
-
Festo 151165. One-way flow control valve GRLA-1/8-B
€22.47Excl. 19% VAT , excl. Shipping Cost
-

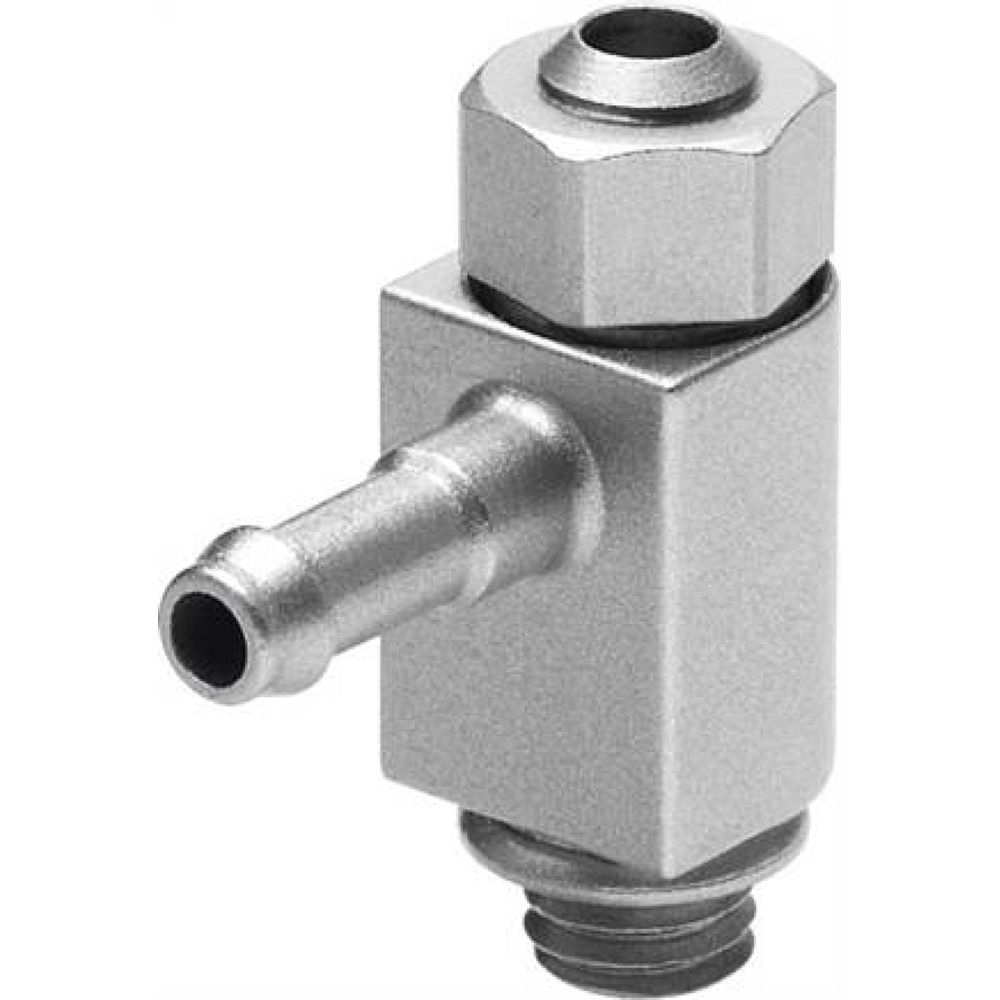

Festo 151182. Throttle valve GRLO-M5-PK-3-B
€19.98Excl. 19% VAT , excl. Shipping Cost
Total price
| Valve function | One-way flow control function |
| Pneumatic connection, port 1 | PK-3 |
| Pneumatic connection, port 2 | PK-3 |
| Type of actuation | Manual |
| Adjustment component | Rotary knob with scale |
| Type of mounting | Front panel mounting |
| Standard nominal flow rate in flow control direction | 3.8 l/min |
| Standard nominal flow rate in blocked direction | 95 l/min |
| Operating pressure | 0 bar ... 8 bar |
| Ambient temperature | -10 °C ... 50 °C |
| Material housing | PA-reinforced |
| Mounting position | optional |
| Symbol | 00991453 |
| Operating pressure from 2 to 1 | 0 bar ... 8 bar |
| Standard nominal flow rate in throttle direction for 0.1->0 MPa (1->0 bar, 14.5->0 psi) | 1.65 l/min |
| Standard nominal flow rate in return direction for 0.1->0 MPa (1->0 bar, 14.5->0 psi) | 15 l/min ... 50 l/min |
| Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi) | 5.2 l/min |
| Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi) | 131 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [5:4:3] Inert gases |
| Note on operating and pilot medium | Lubricated operation not possible |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Media temperature | -10 °C ... 50 °C |
| Product weight | 48 g |
| Note on materials | RoHS-compliant |
| Material seals | NBR PVC |
| Material retaining bracket | Wrought aluminium alloy |
| Material PK connections | Wrought aluminium alloy Brass |
| Material screws | Steel |
| Manufacturer Nr. | GRP-10-PK-3 |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568112066 |
| Weight | 0.065000 |
| HS-Code | 84812090 |
| Article authenticity | Original product |
| Condition of article | New |
Download
Customers Who Bought This Item Also Bought
Festo 175058. One-way flow control valve GRLZ-M5-QS-4-LF-C
€20.27
Excl. 19% VAT ,
excl. Shipping Cost

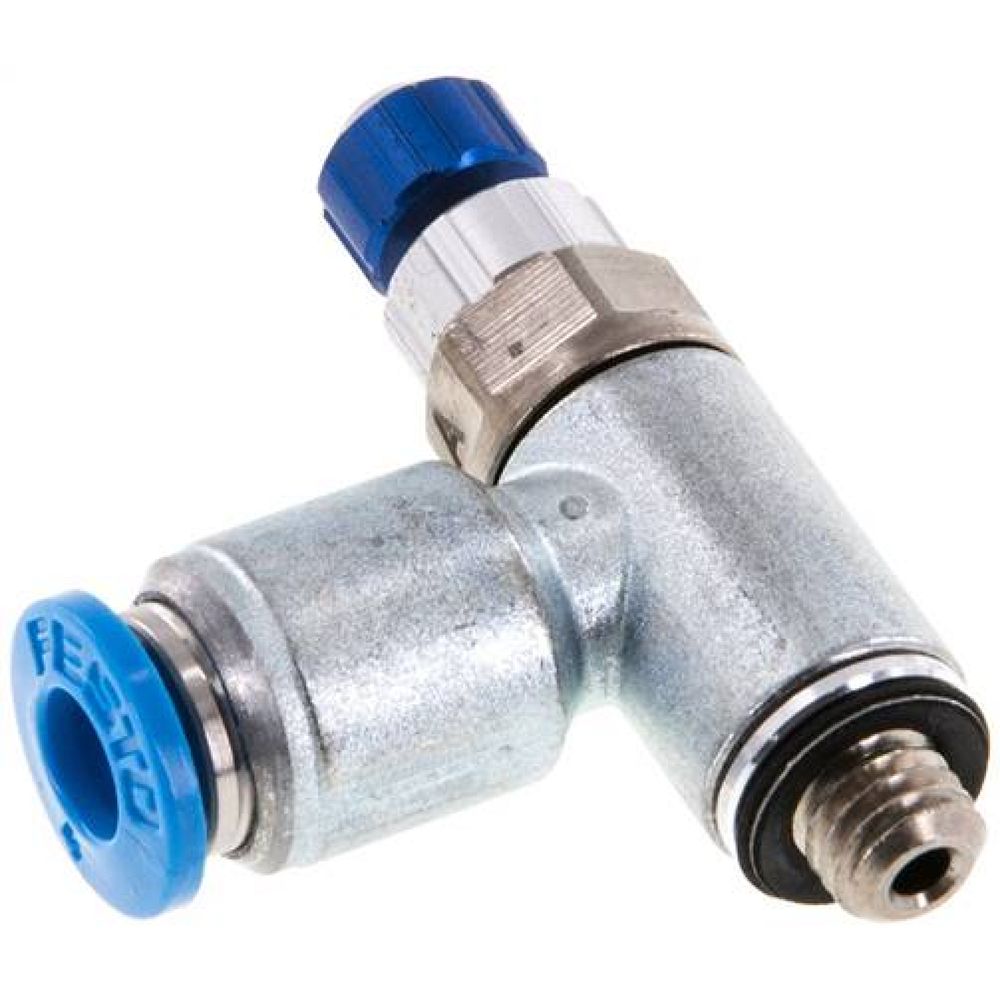

Festo 197577. One-way flow control valve GRLA-M5-QS-4-RS-D
