EMC SGM 40/100. Guide cylinder, with slide bearing, pistons 40mm, stroke 100mm
€216.15
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-SGM-40/100
Manufacturer Nr.
SGM 40/100
Guide cylinder, with slide bearing, pistons 40mm,stroke 100mm
Frequently Bought Together
-
This Item:
€216.15Excl. 19% VAT , excl. Shipping Cost
-

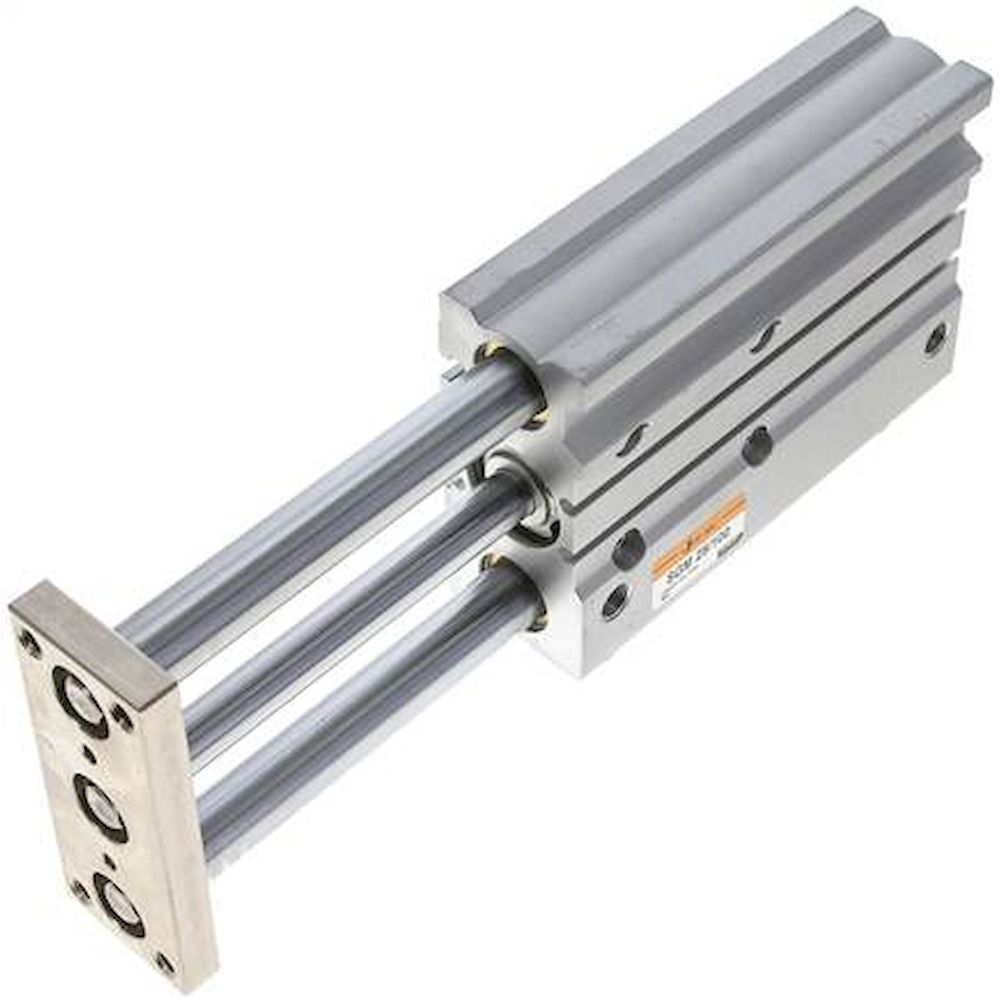

EMC SGM 25/100. Guide cylinder, with slide bearing, pistons 25mm, stroke 100mm
€142.66Excl. 19% VAT , excl. Shipping Cost
-

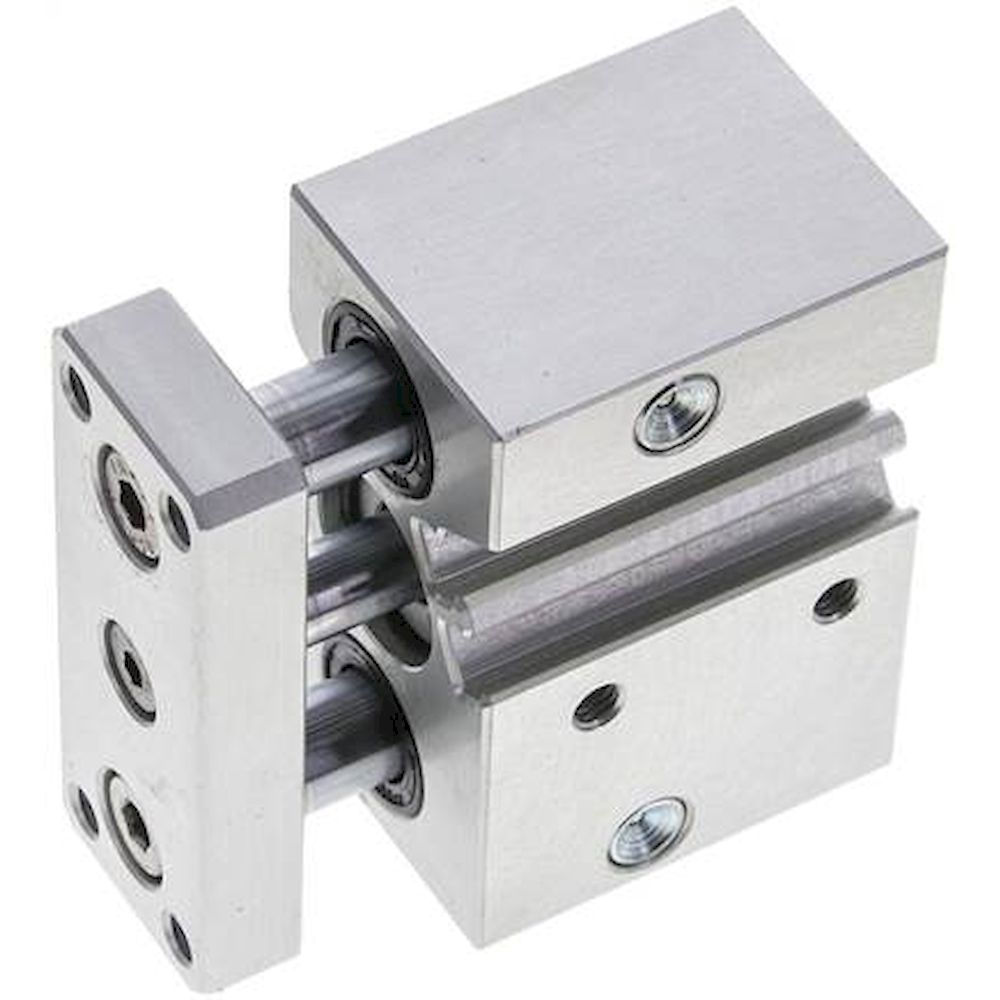

Guide cylinder, with slide bearing, pistons 16mm,stroke 10mm
€265.21Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Body: Anodized aluminium, Plate: Steel, Guiding rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gaskets: NBR / PUR
Temperature range:
-10 to +60 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D
Advantages:
•ideal for picking up large lateral loads,
•numerous fastening options,
•guidance with self-lubricating sliding bearings,
•Twist tolerance < 0.1° (±),
•air connection from at the side or from below (closed with stopper plugs),
•main installation dimensions identical to SMC series MGPM
Body: Anodized aluminium, Plate: Steel, Guiding rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gaskets: NBR / PUR
Temperature range:
-10 to +60 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D
Advantages:
•ideal for picking up large lateral loads,
•numerous fastening options,
•guidance with self-lubricating sliding bearings,
•Twist tolerance < 0.1° (±),
•air connection from at the side or from below (closed with stopper plugs),
•main installation dimensions identical to SMC series MGPM
| Piston diameter [mm] | 40 |
| Stroke [mm] | 100 |
| Version | with slide bearing |
| G (compressed air port) | G 1/8" |
| Repair sets | SGM 40 REP |
| lateral force permissible [N] | 159 |
| permissible torque at the end-plate [Nm] | 5,48 |
| C [mm] | 44,0 |
| D [mm] | 20 |
| D1 [mm] | 16 |
| E [mm] | 36,0 |
| FA [mm] | 12 |
| FB [mm] | 22 |
| GA [mm] | 10,0 |
| GB [mm] | 14,0 |
| GC [mm] | 18,0 |
| GD [mm] | 13,0 |
| GE [mm] | 14,0 |
| H [mm] | 120 |
| J [mm] | 38,0 |
| K [mm] | 46 |
| L1 [mm] | 6 |
| L2 [mm] | 3 |
| M | M 8 |
| M1 [mm] | 16 |
| ML [mm] | 20 |
| MM | M 8 |
| N [mm] | 22 |
| NN [mm] | 48 |
| P [mm] | 6,9 |
| PA (+0,03 / -0) [mm] | 4 |
| PP [mm] | 4,5 |
| Q [mm] | 30 |
| QL [mm] | 104 |
| R (± 0,02) [mm] | 50 |
| RR [mm] | 86 |
| T [mm] | 11.0 (7.5 deep) |
| V [mm] | 72 |
| VA [mm] | 10,5 |
| VB [mm] | 6,5 |
| VC [mm] | 5,5 |
| VD [mm] | 4,0 |
| VE [mm] | 11,0 |
| W [mm] | 54 |
| WA [mm] | 106 |
| WB [mm] | 40 |
| WL [mm] | 118 |
| WW [mm] | 44 |
| Manufacturer Nr. | SGM 40/100 |
|---|---|
| Manufacturer | E.MC |
| EAN | 4050571873783 |
| Weight | 34.000000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought

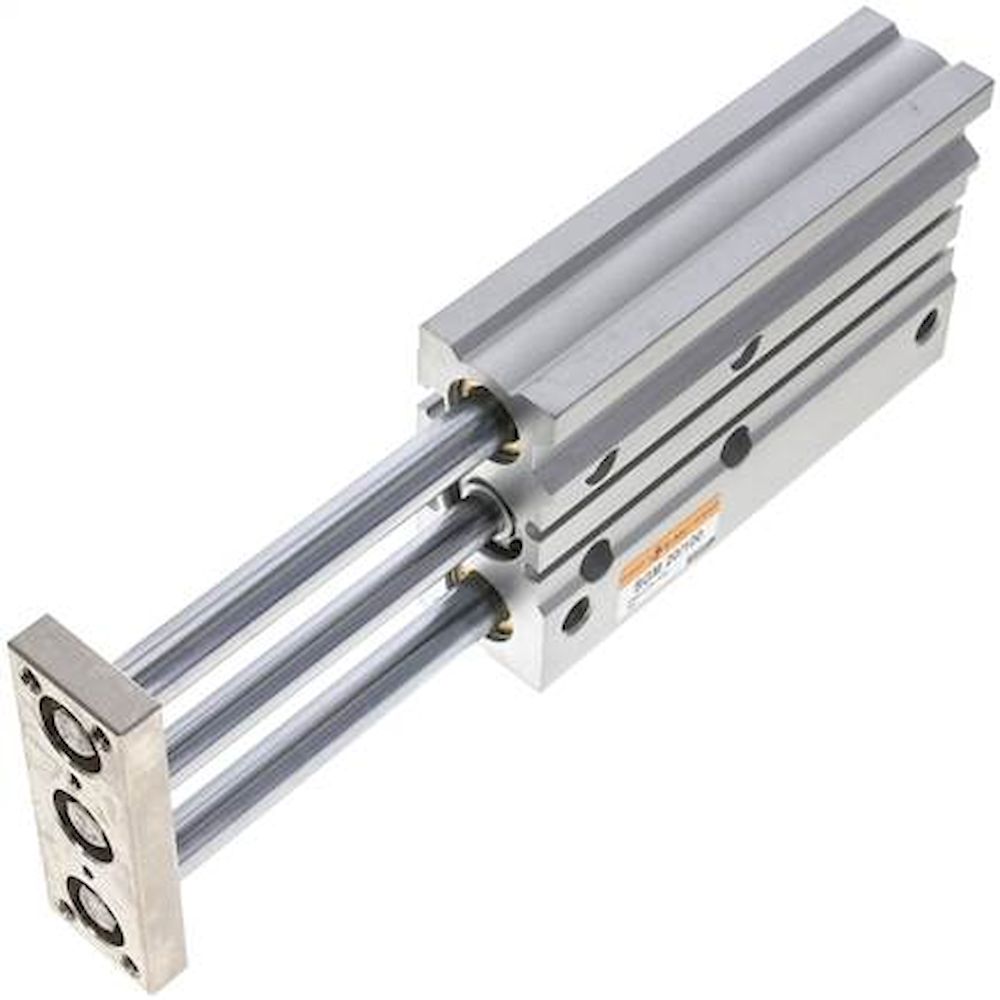

EMC SGM 20/100. Guide cylinder, with slide bearing, pistons 20mm, stroke 100mm
€122.11
Excl. 19% VAT ,
excl. Shipping Cost
EMC SGM 32/75. Guide cylinder, with slide bearing, pistons 32mm, stroke 75mm
€189.06
Excl. 19% VAT ,
excl. Shipping Cost

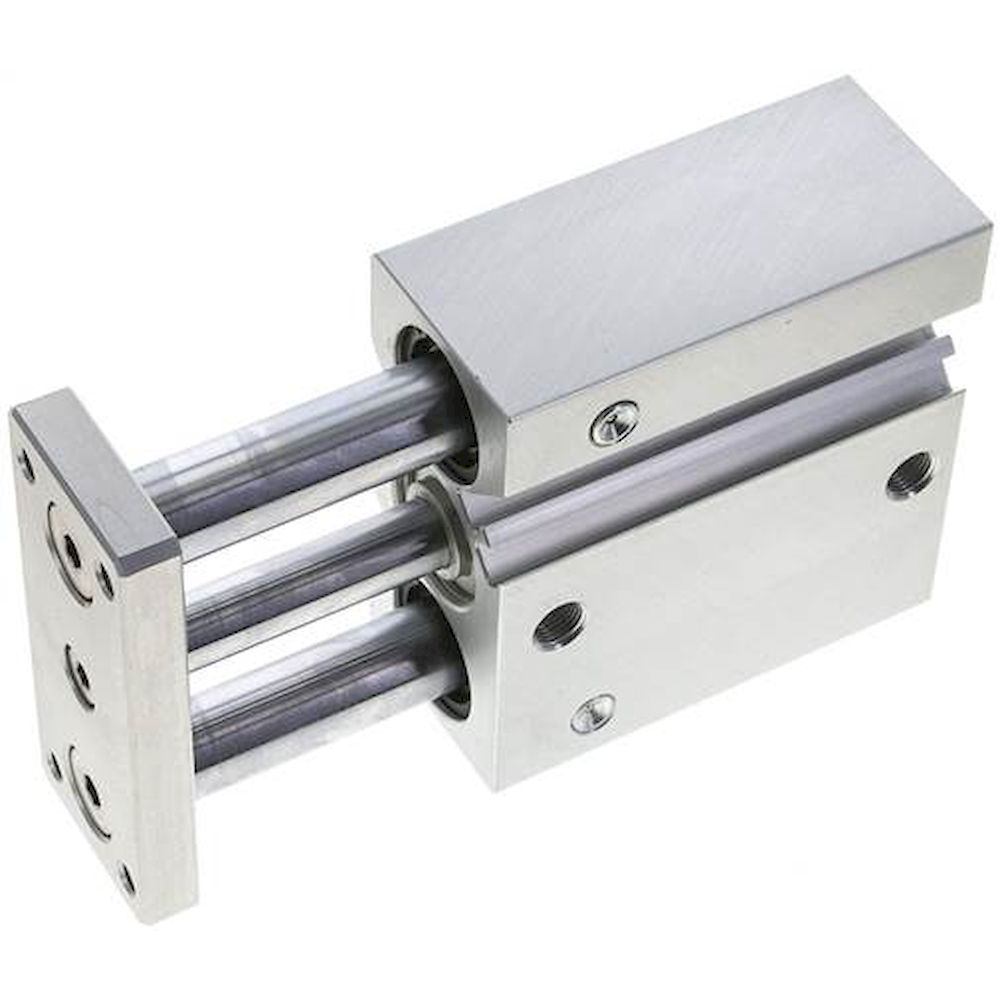

Guide cylinder, with ball bushing, pistons 25mm,stroke 50mm
€486.60
Excl. 19% VAT ,
excl. Shipping Cost
Guide cylinder, with slide bearing, pistons 32mm,stroke 25mm
€471.43
Excl. 19% VAT ,
excl. Shipping Cost
Guide cylinder, with slide bearing, pistons 40mm,stroke 100mm
€607.01
Excl. 19% VAT ,
excl. Shipping Cost
Guide cylinder, with slide bearing, pistons 40mm,stroke 75mm
€570.40
Excl. 19% VAT ,
excl. Shipping Cost

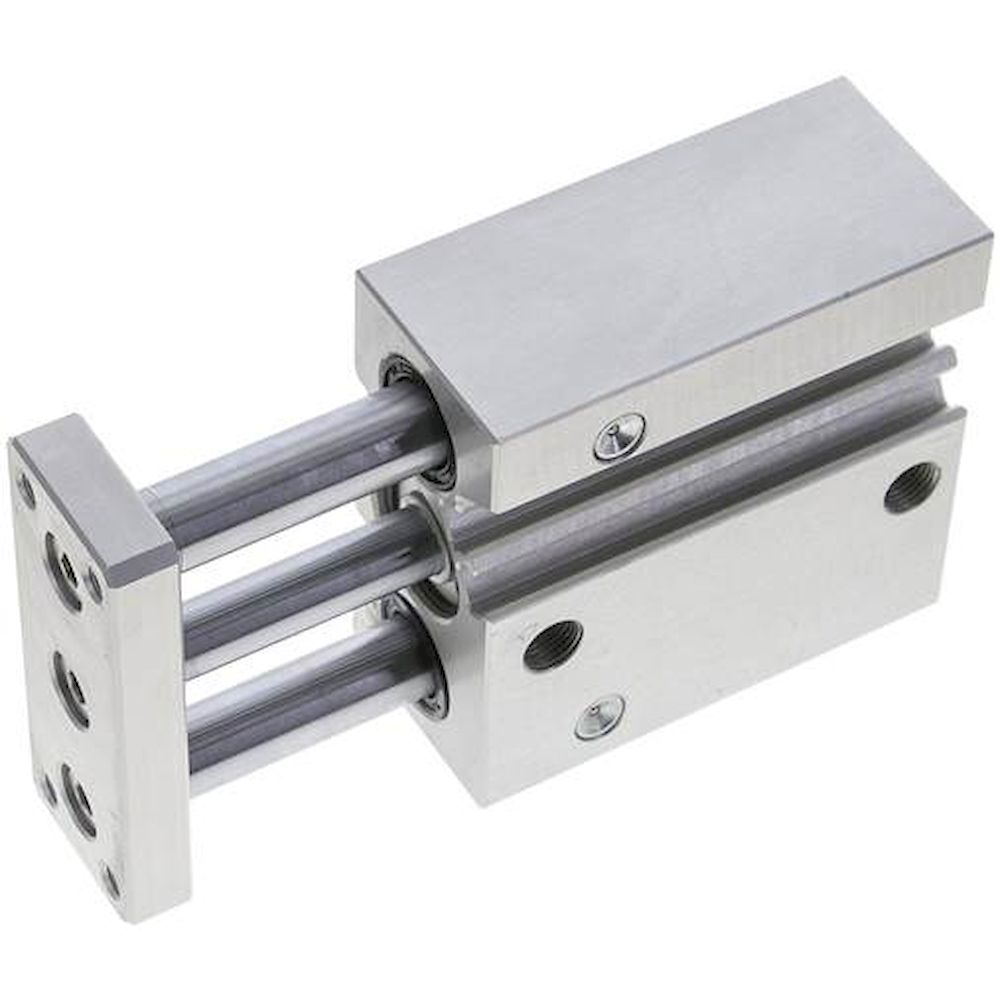

Guide cylinder, with slide bearing, pistons 20mm,stroke 40mm
