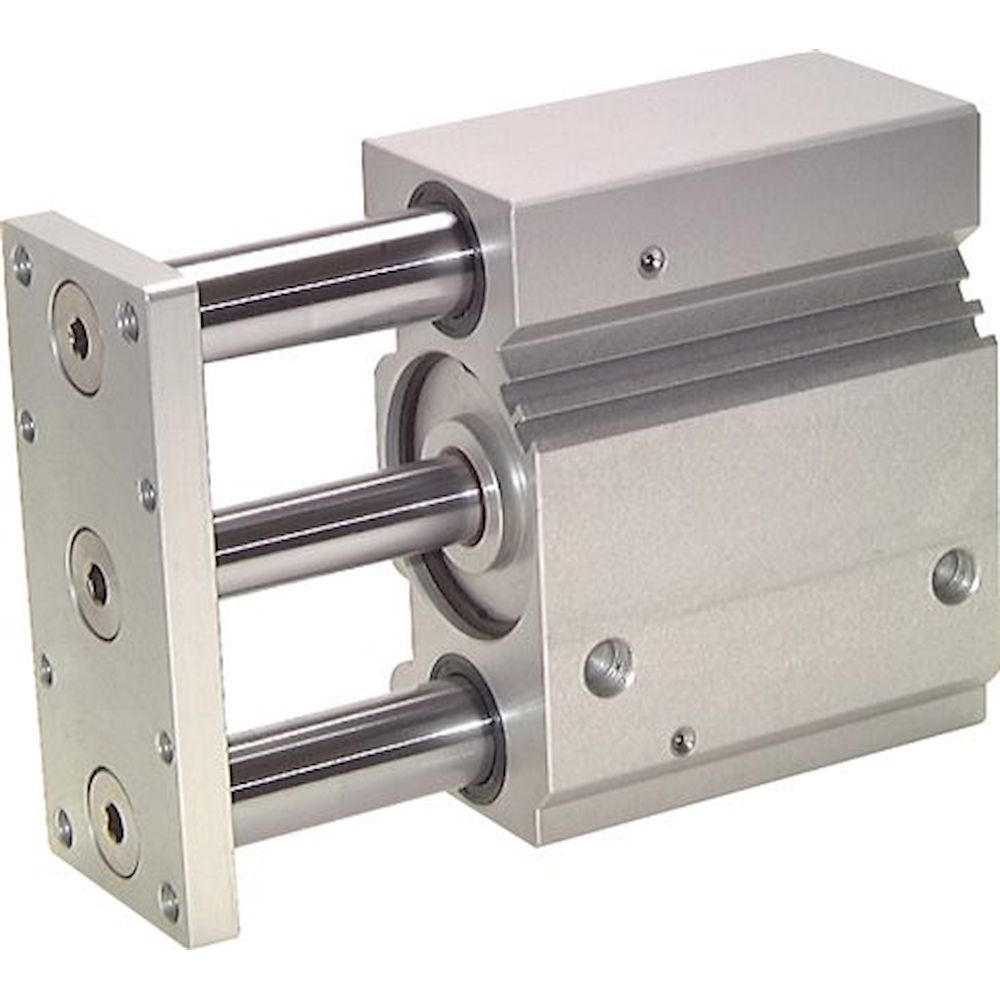

Guide cylinder, with slide bearing, pistons 20mm,stroke 40mm

Name: Guide cylinder, with slide bearing, pistons 20mm,stroke 40mm
Brand: Fluidics equipment
SKU: FL-041502
Price: 342.06 EUR
Availability: InStock

€342.06

Excl. 19% VAT , excl. Shipping Cost

Article

FL-041502

Manufacturer: Fluidics equipment

Manufacturer Nr.

ZDFM 20/40 G

Guide cylinder, with slide bearing, pistons 20mm,stroke 40mm

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Pictures are for reference and may not be accurate, actual product may differ

Frequently Bought Together

This Item: Guide cylinder, with slide bearing, pistons 20mm,stroke 40mm
€342.06
Excl. 19% VAT , excl. Shipping Cost

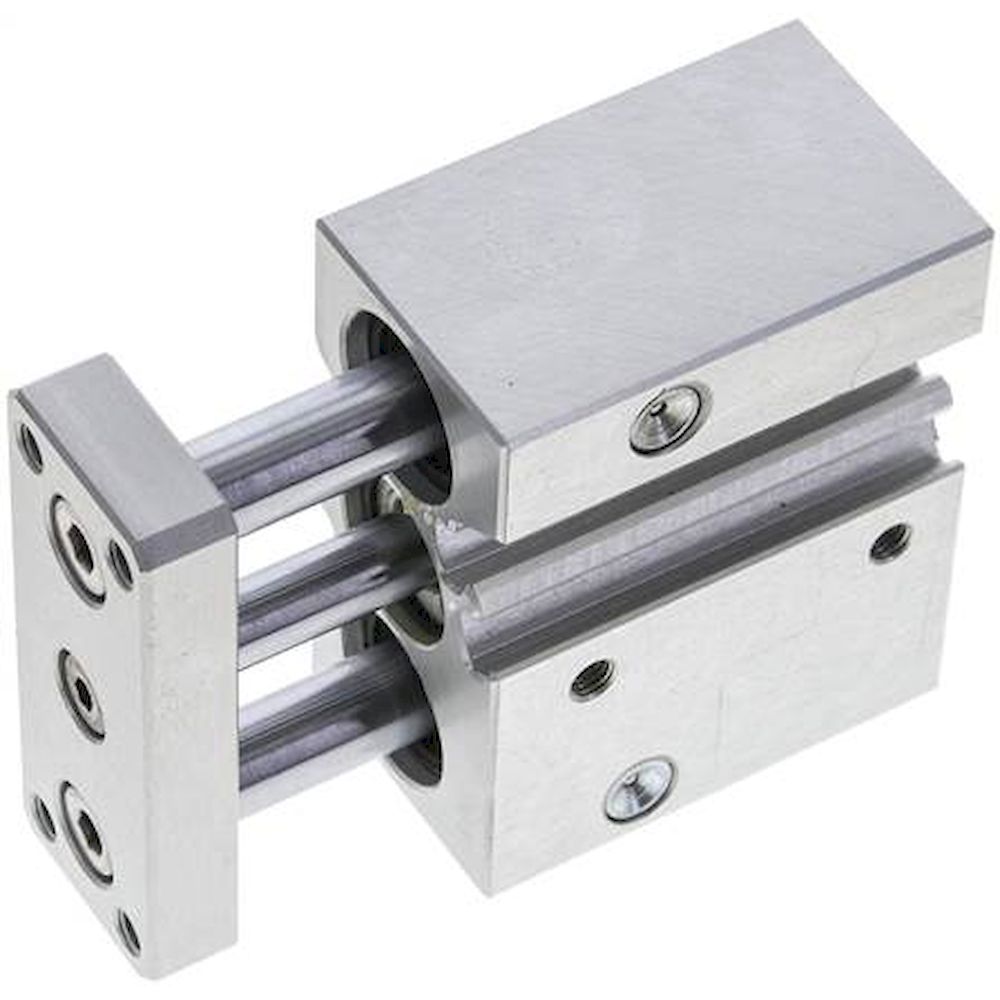

Guide cylinder, with ball bushing, pistons 25mm,stroke 20mm
€442.18
Excl. 19% VAT , excl. Shipping Cost
Guide cylinder, with ball bushing, pistons 25mm,stroke 25mm
€394.65
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Information

Materials:
Body and plate: Anodized aluminium, guide rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR

Temperature range:
-20 to +80 °C

Operating pressure:
max. 10 bar

Version:
With Magnetic piston

Cylinder switch type:
D, A

Advantages:
•ideal for accepting large transverse loads,
•numerous mounting options

Piston diameter [mm]	20
Stroke [mm]	40
Version	with slide bearing
F (compressed air port)	G 1/8"
Repair sets	ZDFM 20 REP
lateral force permissible [N]	39
permissible torque at the end-plate [Nm]	0,72
A [mm]	10
B [mm]	0
C [mm]	12
D [mm]	10
E1 [mm]	60
E2 [mm]	18
F1 [mm]	11,0
F2 [mm]	9
F3 [mm]	8
G1 [mm]	72
G2 [mm]	29
H [mm]	52
H1 [mm]	46
L1 [mm]	37,0
L2 [mm]	49,0
L3 [mm]	49,0
M1 [mm]	74
M2 [mm]	36
N [mm]	26
N1 [mm]	17
N2 [mm]	19
O1 [mm]	13
O2 [mm]	10
O3 [mm]	64
P1	M 5
Q [mm]	20
R [mm]	8,0
T1 [mm]	2,5
T2 [mm]	4,5

More Information
Manufacturer Nr.	ZDFM 20/40 G
Manufacturer	Fluidics equipment
EAN	4050571810245
Weight	7.000000
HS-Code	84123100
Article authenticity	Original product
Condition of article	New
