Guide cylinder, with ball bushing, pistons 25mm,stroke 50mm
€486.60
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-041552
Manufacturer Nr.
ZDFM 25/50 K
Guide cylinder, with ball bushing, pistons 25mm,stroke 50mm
Frequently Bought Together
-
This Item:
€486.60Excl. 19% VAT , excl. Shipping Cost
-
EMC SGM 20/20. Guide cylinder, with slide bearing, pistons 20mm, stroke 20mm
€95.12Excl. 19% VAT , excl. Shipping Cost
-

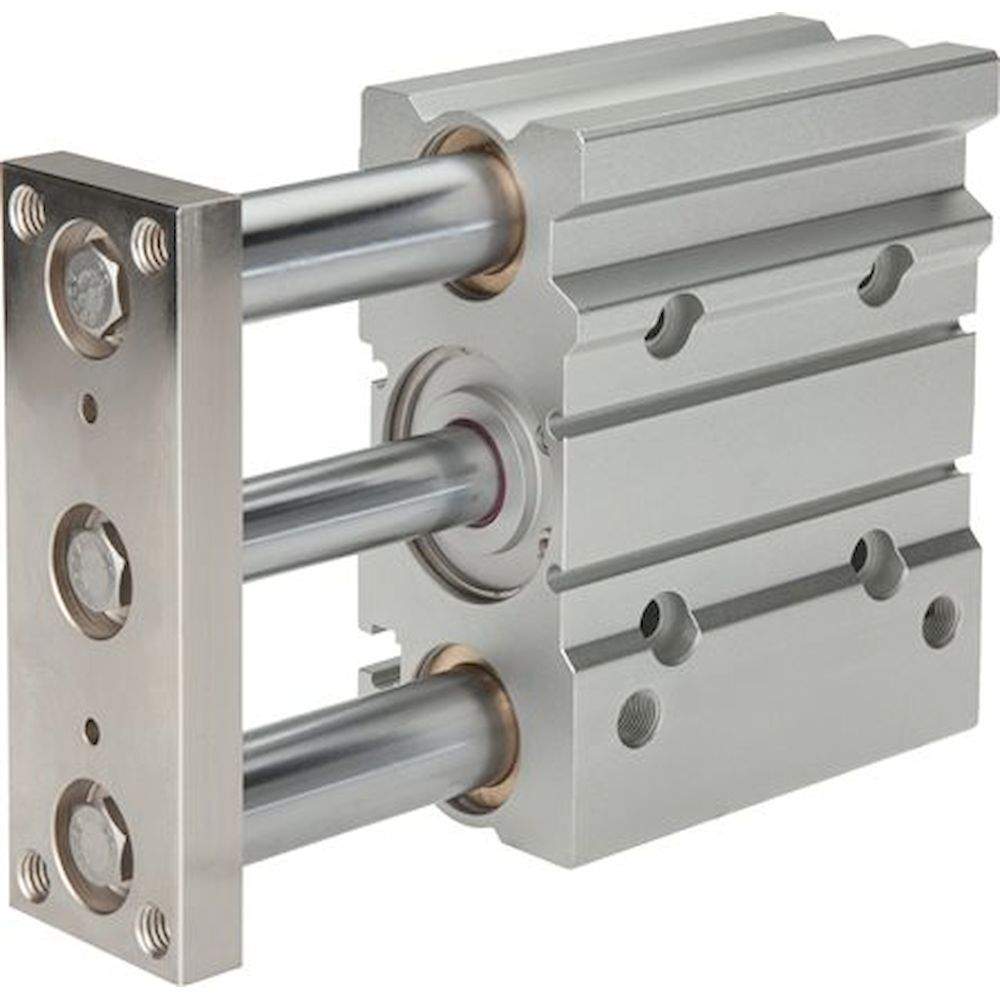

EMC SGM 50/200. Guide cylinder, with slide bearing, pistons 50mm, stroke 200mm
€301.12Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Body and plate: Anodized aluminium, guide rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Advantages:
•ideal for accepting large transverse loads,
•numerous mounting options
Body and plate: Anodized aluminium, guide rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Advantages:
•ideal for accepting large transverse loads,
•numerous mounting options
| Piston diameter [mm] | 25 |
| Stroke [mm] | 50 |
| Version | with ball bushing |
| F (compressed air port) | G 1/8" |
| Repair sets | ZDFM 25 REP |
| lateral force permissible [N] | 73 |
| permissible torque at the end-plate [Nm] | 2,20 |
| A [mm] | 10 |
| B [mm] | 0 |
| C [mm] | 16 |
| D [mm] | 12 |
| E1 [mm] | 70 |
| E2 [mm] | 26 |
| F1 [mm] | 11,5 |
| F2 [mm] | 9 |
| F3 [mm] | 8 |
| G1 [mm] | 86 |
| G2 [mm] | 38 |
| H [mm] | 62 |
| H1 [mm] | 56 |
| L1 [mm] | 37,5 |
| L2 [mm] | 49,5 |
| L3 [mm] | 49,5 |
| M1 [mm] | 88 |
| M2 [mm] | 42 |
| N [mm] | 32 |
| N1 [mm] | 21 |
| N2 [mm] | 21 |
| O1 [mm] | 14 |
| O2 [mm] | 10 |
| O3 [mm] | 76 |
| P1 | M 6 |
| Q [mm] | 25 |
| R [mm] | 9,0 |
| T1 [mm] | 2,0 |
| T2 [mm] | 2,0 |
| Manufacturer Nr. | ZDFM 25/50 K |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571810467 |
| Weight | 1.000000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
