Guide cylinder, with slide bearing, pistons 32mm,stroke 25mm
€471.43
Excl. 19% VAT ,
excl. Shipping Cost
Article
FL-045878
Manufacturer Nr.
ZDFM 32/25 G
Guide cylinder, with slide bearing, pistons 32mm,stroke 25mm
Frequently Bought Together
-
This Item:
€471.43Excl. 19% VAT , excl. Shipping Cost
-

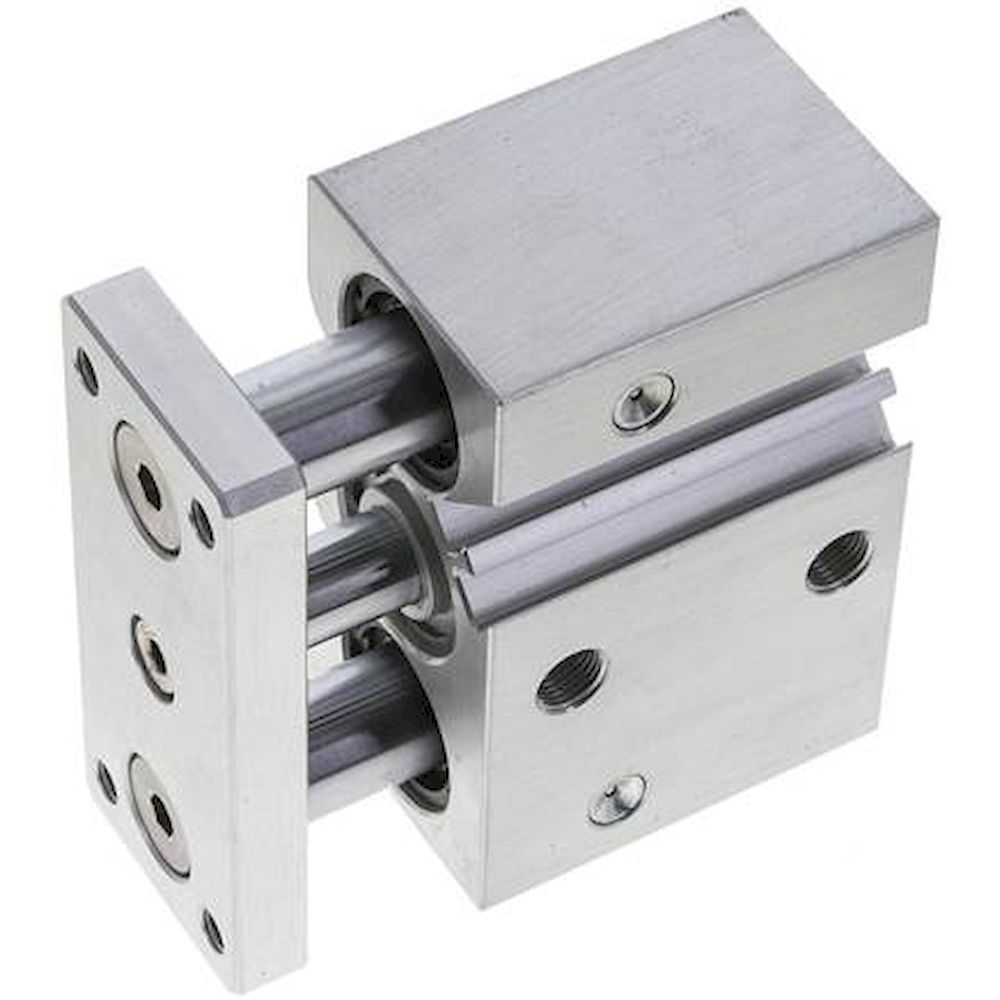

Guide cylinder, with ball bushing, pistons 25mm,stroke 20mm
€442.18Excl. 19% VAT , excl. Shipping Cost
-
Guide cylinder, with ball bushing, pistons 100mm,stroke 150mm
€1,886.83Excl. 19% VAT , excl. Shipping Cost
Total price
Materials:
Body and plate: Anodized aluminium, guide rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Advantages:
•ideal for accepting large transverse loads,
•numerous mounting options
Body and plate: Anodized aluminium, guide rods: Steel, hard chrome-plated, piston rod: Steel, hard chrome-plated, piston: Aluminium, Gasket: NBR / PUR
Temperature range:
-20 to +80 °C
Operating pressure:
max. 10 bar
Version:
With Magnetic piston
Cylinder switch type:
D, A
Advantages:
•ideal for accepting large transverse loads,
•numerous mounting options
| Piston diameter [mm] | 32 |
| Stroke [mm] | 25 |
| Version | with slide bearing |
| F (compressed air port) | G 1/8" |
| Repair sets | ZDFM 32 REP |
| lateral force permissible [N] | 197 |
| permissible torque at the end-plate [Nm] | 3,94 |
| A [mm] | 10 |
| B [mm] | 24,0 |
| C [mm] | 20 |
| D [mm] | 16 |
| E1 [mm] | 96 |
| E2 [mm] | 30 |
| E3 [mm] | 32,5 |
| F1 [mm] | 12,5 |
| F2 [mm] | 9 |
| F3 [mm] | 14 |
| G1 [mm] | 112 |
| G2 [mm] | 48 |
| H [mm] | 80 |
| H1 [mm] | 80 |
| L1 [mm] | 37,5 |
| L2 [mm] | 49,5 |
| L3 [mm] | 73,5 |
| M1 [mm] | 114 |
| M2 [mm] | 51 |
| N [mm] | 38 |
| O1 [mm] | 16 |
| O2 [mm] | 5 |
| O3 [mm] | 100 |
| P1 | M 8 |
| P2 | M 6 |
| Q [mm] | 20 |
| R [mm] | 11,0 |
| T1 [mm] | 1,5 |
| T2 [mm] | 1,5 |
| Manufacturer Nr. | ZDFM 32/25 G |
|---|---|
| Manufacturer | Fluidics equipment |
| EAN | 4050571810566 |
| Weight | 15.000000 |
| HS-Code | 84123100 |
| Article authenticity | Original product |
| Condition of article | New |
Customers Who Bought This Item Also Bought
EMC SGM 20/30. Guide cylinder, with slide bearing, pistons 20mm, stroke 30mm
€97.27
Excl. 19% VAT ,
excl. Shipping Cost

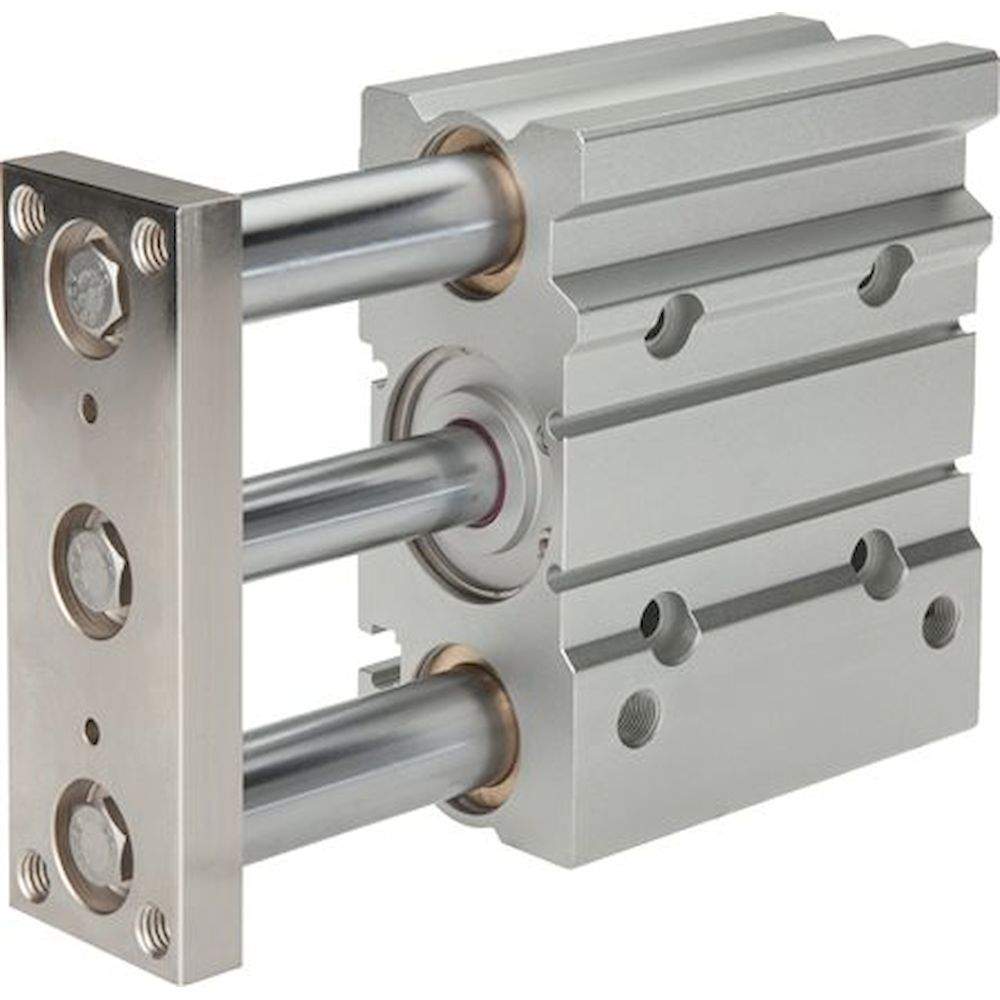

EMC SGM 40/50. Guide cylinder, with slide bearing, pistons 40mm, stroke 50mm
€178.03
Excl. 19% VAT ,
excl. Shipping Cost

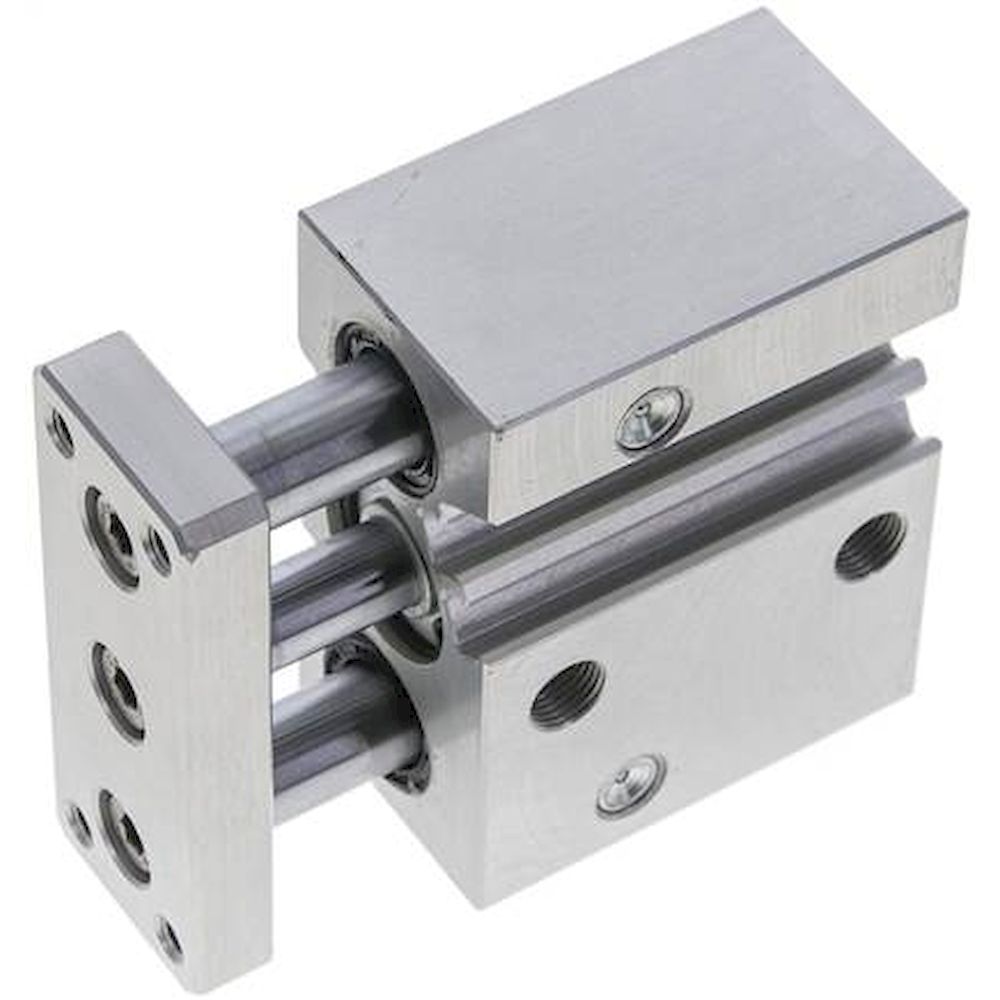

Guide cylinder, with slide bearing, pistons 20mm,stroke 20mm
€326.93
Excl. 19% VAT ,
excl. Shipping Cost
Guide cylinder, with slide bearing, pistons 16mm,stroke 10mm
€265.21
Excl. 19% VAT ,
excl. Shipping Cost
Guide cylinder, with ball bushing, pistons 100mm,stroke 100mm
€1,536.00
Excl. 19% VAT ,
excl. Shipping Cost

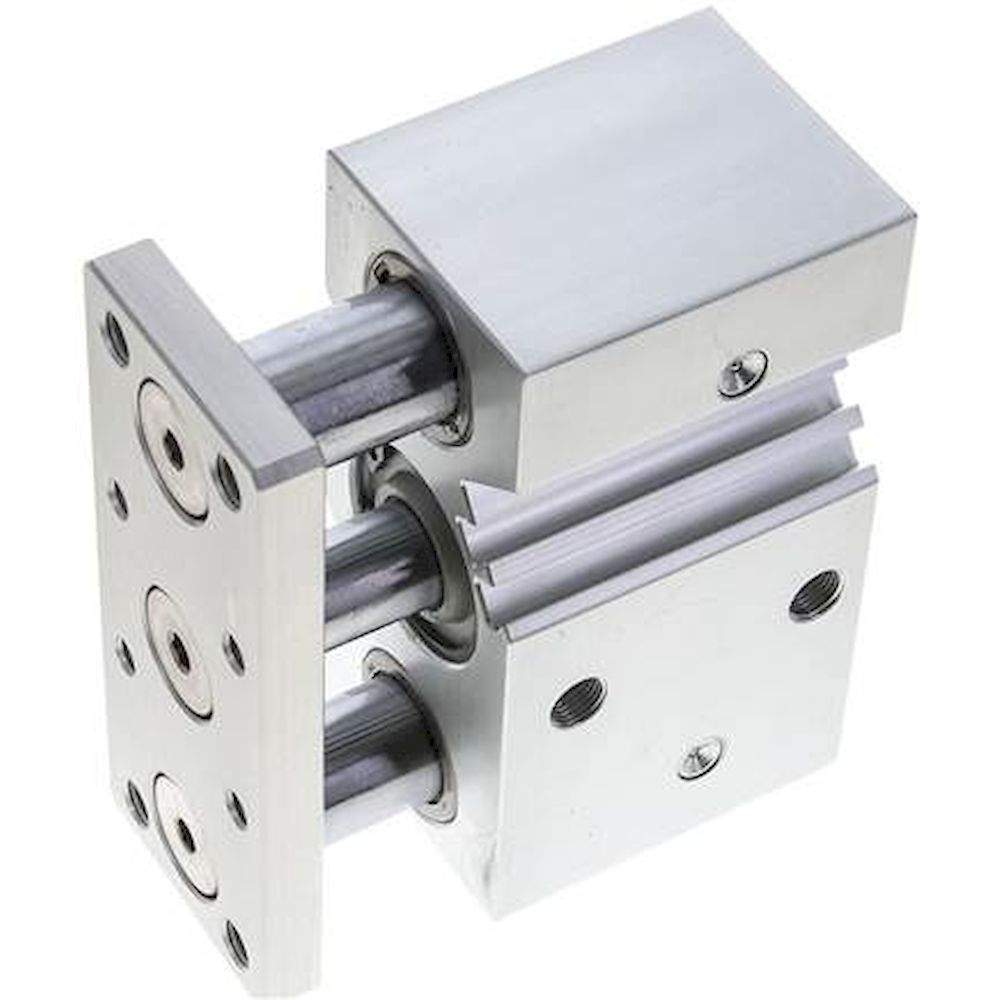

Guide cylinder, with ball bushing, pistons 32mm,stroke 25mm
