Festo 150850. Proximity sensor SME-1-S-24-B
€97.98
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-150850
Manufacturer Nr.
SME-1-S-24-B
Proximity sensor
Frequently Bought Together
-
This Item:
€97.98Excl. 19% VAT , excl. Shipping Cost
-
Festo 175404. Proximity sensor SME-8-K5-LED-24
€39.99Excl. 19% VAT , excl. Shipping Cost
-
Festo 151673. Proximity sensor SMEO-1-S6-C
€99.89Excl. 19% VAT , excl. Shipping Cost
Total price
| Design | Block design |
| Symbol | 00995365 |
| CE mark (see declaration of conformity) | To EU EMC Directive In accordance with EU RoHS Directive |
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| Note on materials | RoHS-compliant |
| Measured variable | Position |
| Measuring principle | Magnetic reed |
| Ambient temperature | -20 °C ... 70 °C |
| Repetition accuracy | 0.2 mm |
| Switching output | Contacting, bipolar |
| Switching element function | N/O contact |
| Switch-on time | 0.5 ms |
| Max. switching frequency | 500 Hz |
| Max. output current | 1000 mA |
| Max. switching capacity AC | 27 VA |
| Max. switching capacity DC | 27 W |
| Short circuit current rating | no |
| Overload protection | Not available |
| Operational voltage range DC | 0 V ... 30 V |
| Reverse polarity protection | no |
| Electrical connection 1, connection type | Plugs |
| Electrical connection 1, connector system | M8x1, A-coded, to EN 61076-2-104 |
| Electrical connection 1, number of connections/cores | 3 |
| Electrical connection 1, connection pattern | 00992826 |
| Connection outlet orientation | In-line |
| Type of mounting | With accessories |
| Mounting position | optional |
| Product weight | 45 g |
| Housing colour | Black |
| Material housing | Epoxy resin PET Steel Galvanised steel Die-cast zinc |
| Ambient temperature with moving cable | -5 °C ... 70 °C |
| Degree of protection | IP67 |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Manufacturer Nr. | SME-1-S-24-B |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568069834 |
| Weight | 0.044000 |
| HS-Code | 85365019 |
| Article authenticity | Original product |
| Condition of article | New |
Download
Customers Who Bought This Item Also Bought

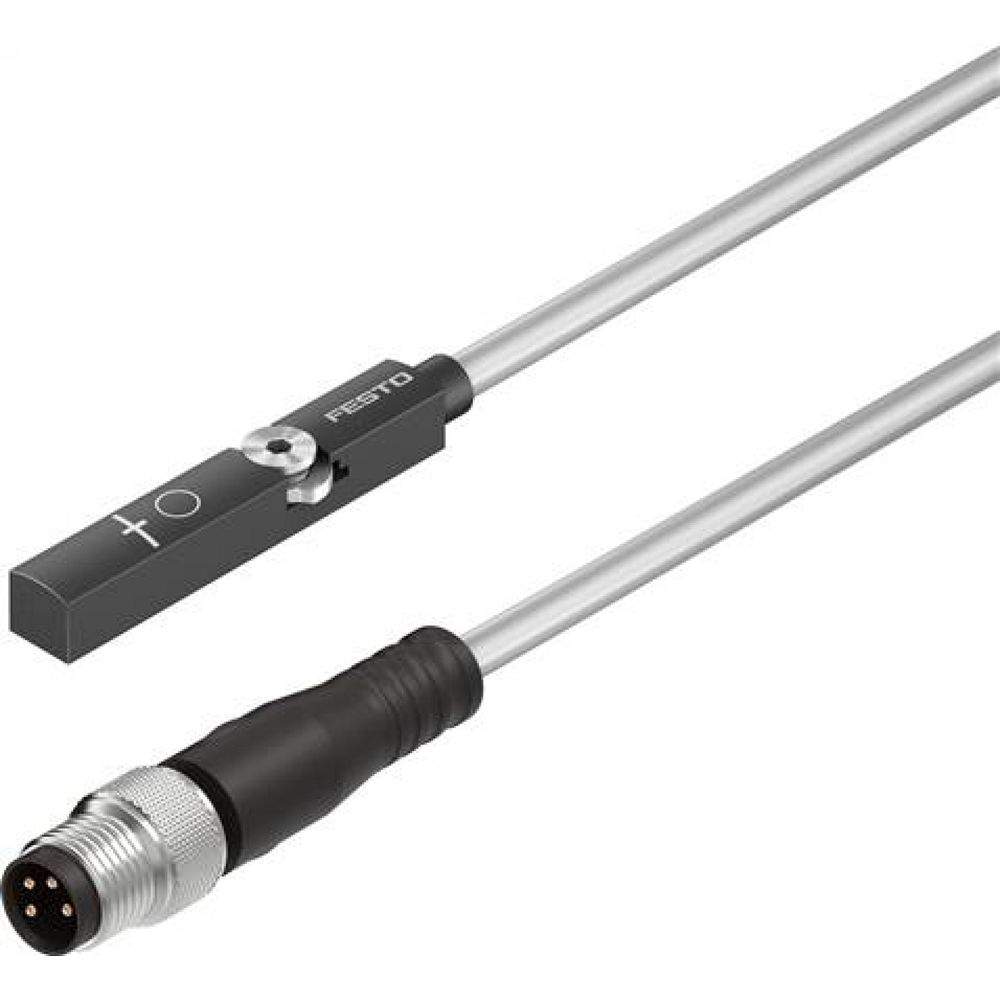

Festo 8063974. Position transmitter SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8
