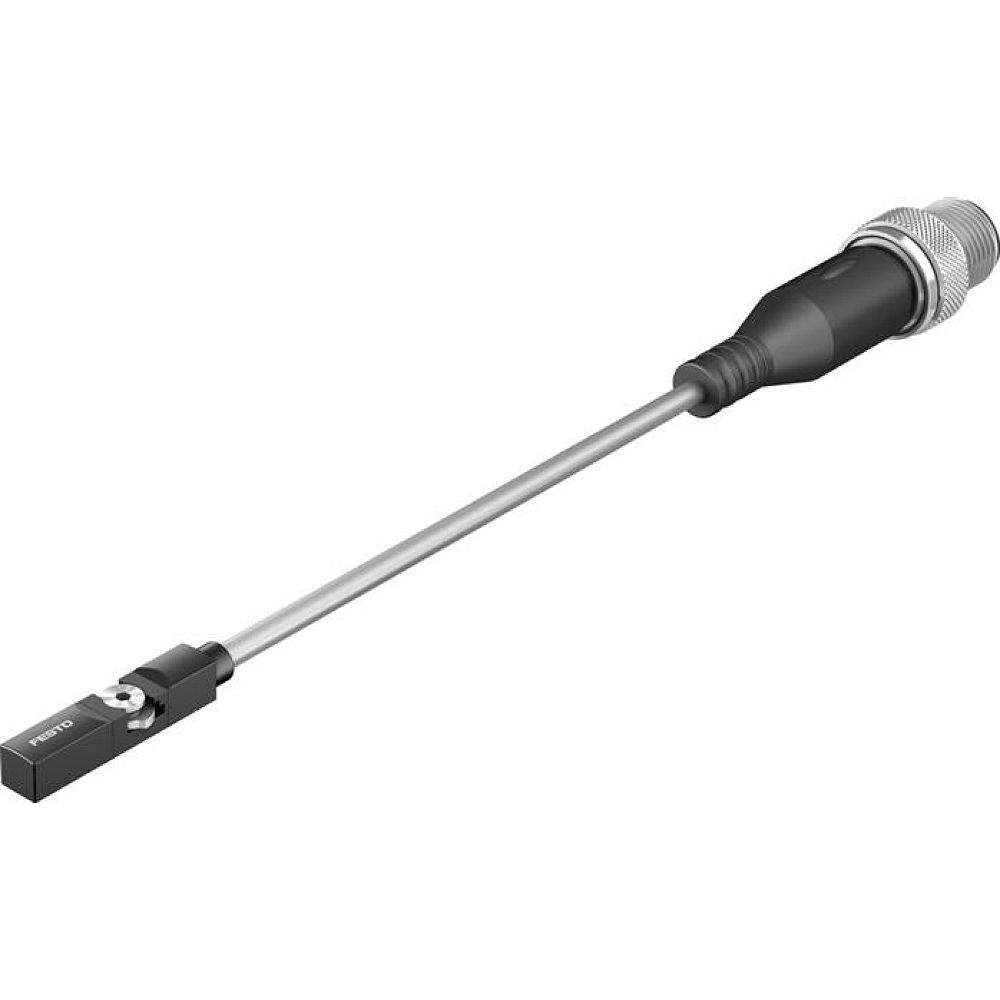

Festo 574382. Proximity sensor CRSMT-8M-PS-24V-K-0,3-M12-EX2
€43.05
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-574382
Manufacturer Nr.
CRSMT-8M-PS-24V-K-0,3-M12
Proximity sensor
Frequently Bought Together
-
This Item:
€43.05Excl. 19% VAT , excl. Shipping Cost
-

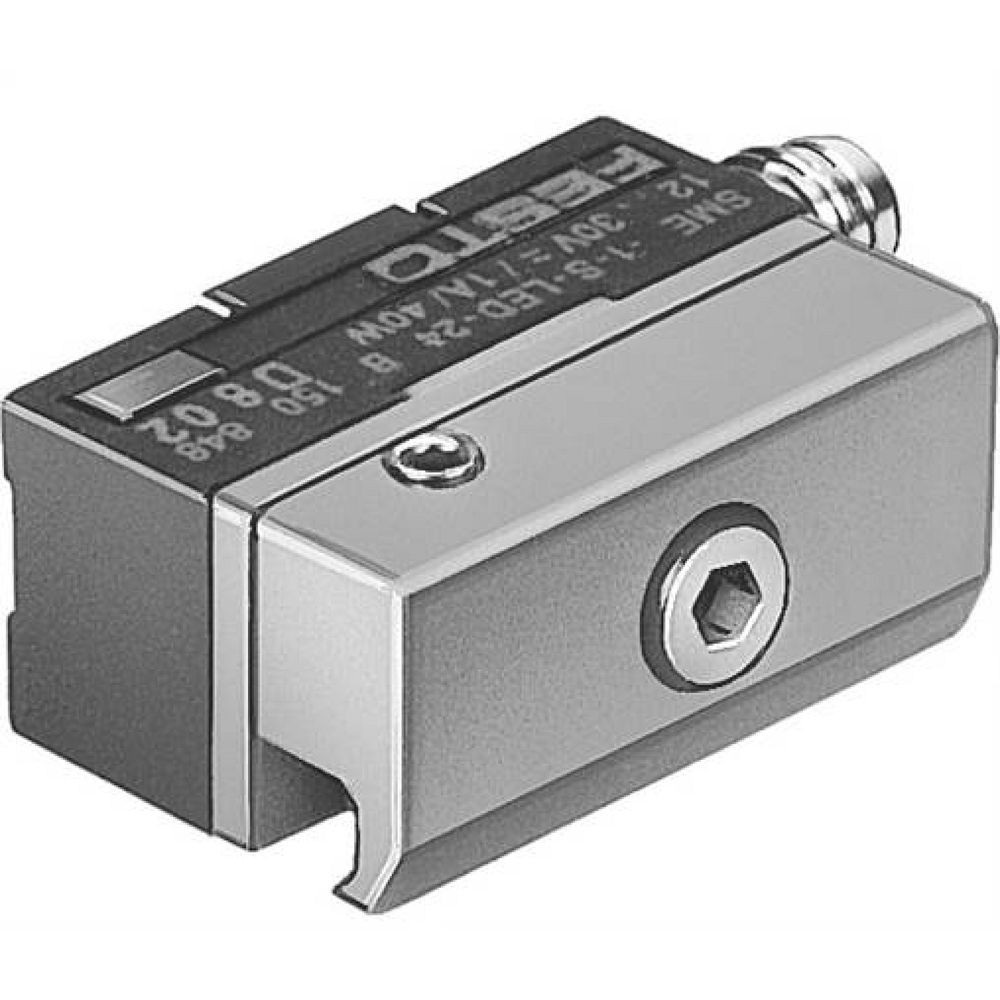

Festo 150851. Proximity sensor SME-1-S-LED-24-B
€97.98Excl. 19% VAT , excl. Shipping Cost
-

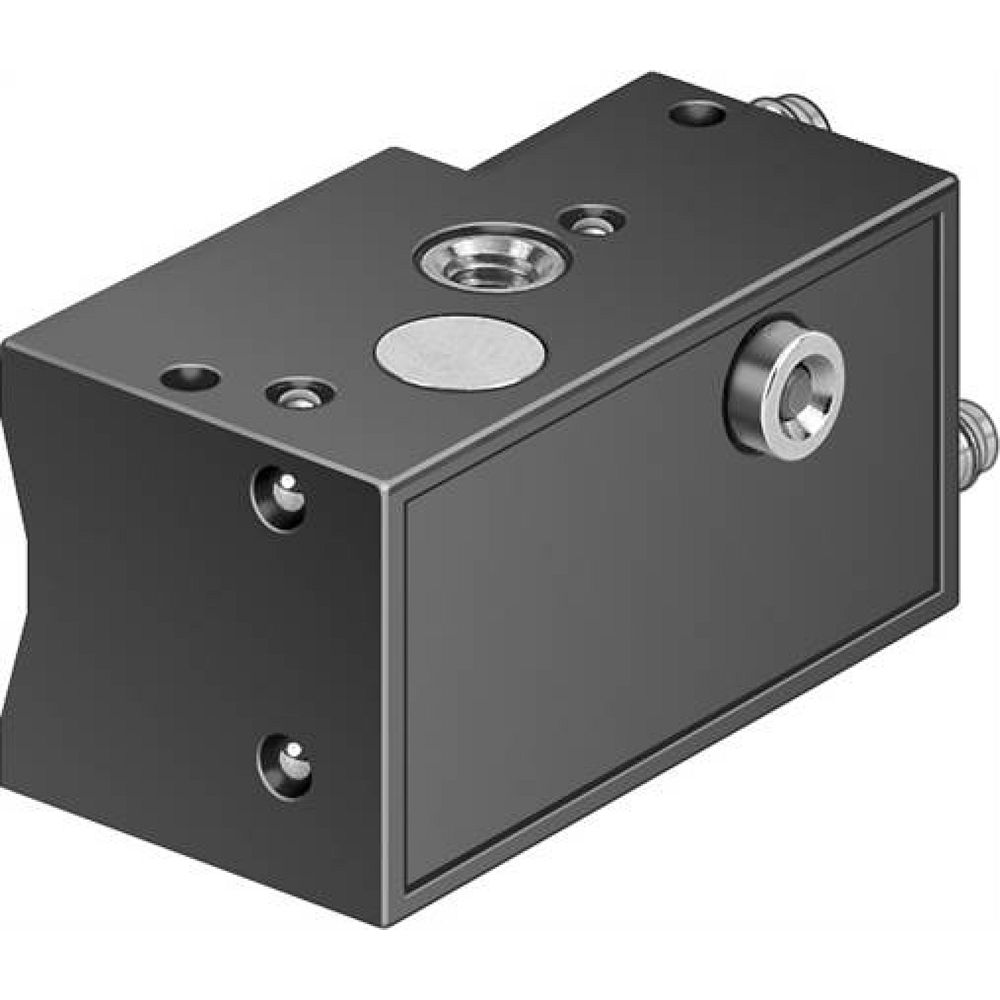

Festo SMPO-1-H-B (31008) Proximity Sensor
€100.74Excl. 19% VAT , excl. Shipping Cost
Total price
| Design | For T-slot |
| Based on standard | EN 60947-5-2 |
| Symbol | 00991153 |
| Approval | RCM trademark |
| CE mark (see declaration of conformity) | To EU EMC Directive To EU Explosion Protection Directive (ATEX) In accordance with EU RoHS Directive |
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK EX instructions To UK RoHS instructions |
| Explosion protection | Zone 2 (ATEX) Zone 2 (UKEX) Zone 22 (ATEX) Zone 22 (UKEX) |
| ATEX category gas | II 3G |
| Explosion ignition protection type for gas | Ex ec IIC T4 Gc X |
| ATEX category dust | II 3D |
| Explosion ignition protection type for dust | Ex tc IIIC T120°C Dc X |
| Explosion protection certification outside the EU | EPL Dc (GB) EPL Gc (GB) |
| Explosion ambient temperature | -40°C <= Ta <= +85°C |
| Special characteristics | Resistant to cooling lubricants Alkali resistant Acid resistant |
| Note on materials | RoHS-compliant Free of halogen |
| Instructions on use | Support / actuator-sensor overview "The right sensor for the actuator" |
| Measured variable | Position |
| Measuring principle | Magneto-resistive |
| Ambient temperature | -40 °C ... 85 °C |
| Repetition accuracy | 0.2 mm |
| Switching output | PNP |
| Switching element function | N/O contact |
| Switch-on time | 1 ms |
| Switch-off time | 1 ms |
| Max. switching frequency | 180 Hz |
| Max. output current | 100 mA |
| Max. output current using mounting kits | 100 mA |
| Max. switching capacity DC | 2.8 W |
| Max. switching capacity DC using mounting kits | 2.8 W |
| Voltage drop | 1.5 V |
| Inductive protective circuit | Adapted to MZ, MY, ME coils |
| Min. load current | 0 mA |
| Off-state current | 0.05 mA |
| Short circuit current rating | yes |
| Overload protection | Available |
| Rated operational voltage DC | 24 V |
| Operational voltage range DC | 5 V ... 30 V |
| Residual ripple | 10 % |
| Reverse polarity protection | For all electrical connections |
| Electrical connection 1, connection type | Cable with plug |
| Electrical connection 1, connector system | M12x1, A-coded to EN 61076-2-101 |
| Electrical connection 1, number of connections/cores | 3 |
| Electrical connection 1, type of mounting | Screw-type lock |
| Electrical connection 1, connection pattern | 00995573 |
| Connection outlet orientation | In-line |
| Material electrical contact | Brass, nickel-plated and gold-plated |
| Material connector housing | PP |
| Test conditions cable | Bending strength: to Festo standard Torsional resistance: > 300,000 cycles, ± 270°/0.1 m Energy chain: > 5 million cycles, bending radius 75 mm |
| Cable length | 0.3 m |
| Cable characteristic | Standard/suitable for energy chains |
| Cable sheath colour | grey |
| Material cable sheath | TPE-O |
| Material insulating sheath | PP |
| Type of mounting | Screw-clamped Insertable in the slot from above |
| Tightening torque | 0.1 Nm ... 0.6 Nm |
| Max. tightening torque | 0.6 Nm |
| Mounting position | optional |
| Product weight | 9.1 g |
| Housing colour | Black |
| Material housing | PA PP High-alloy stainless steel |
| Material union nut | Nickel-plated brass |
| Switching status indication | Yellow LED |
| Function reserve indication | Orange LED |
| Ambient temperature with moving cable | -20 °C ... 85 °C |
| Degree of protection | IP65 IP68 IP69K |
| Immunity to magnetic fields | Design insensitive to permanent magnetic fields < Bon |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitable for use with food | See supplementary material information |
| Manufacturer Nr. | CRSMT-8M-PS-24V-K-0,3-M12 |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568103330 |
| Weight | 0.035000 |
| HS-Code | 85365019 |
| Article authenticity | Original product |
| Condition of article | New |
