Festo 551382. Proximity sensor SMT-10M-ZS-24V-E-2,5-L-OE
€32.18
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-551382
Manufacturer Nr.
SMT-10M-ZS-24V-E-2,5-L-OE
Proximity sensor
Frequently Bought Together
-
This Item:
€32.18Excl. 19% VAT , excl. Shipping Cost
-
Festo 173210. Proximity sensor SME-10-KL-LED-24
€41.54Excl. 19% VAT , excl. Shipping Cost
-
Festo 574338. Proximity sensor SMT-8M-A-NS-24V-E-2,5-OE
€26.49Excl. 19% VAT , excl. Shipping Cost
Total price
| Design | For C-slot |
| Conforms to standard | EN 60947-5-2 |
| Symbol | 00991144 |
| Approval | RCM trademark |
| CE mark (see declaration of conformity) | To EU EMC Directive In accordance with EU RoHS Directive |
| CE marking (see declaration of conformity) | To UK instructions for EMC To UK RoHS instructions |
| KC mark | KC-EMV |
| Special characteristics | Oil resistant |
| Note on materials | RoHS-compliant Free of halogen |
| Instructions on use | Support / actuator-sensor overview "The right sensor for the actuator" |
| Measured variable | Position |
| Measuring principle | Magneto-resistive |
| Ambient temperature | -40 °C ... 70 °C |
| Repetition accuracy | 0.2 mm |
| Switching output | Non-contacting, 2-wire |
| Switching element function | N/O contact |
| Switch-on time | 1 ms |
| Switch-off time | 1 ms |
| Max. switching frequency | 150 Hz |
| Max. output current | 100 mA |
| Max. output current using mounting kits | 50 mA |
| Max. switching capacity DC | 2.4 W |
| Max. switching capacity DC using mounting kits | 1.2 W |
| Voltage drop | 6 V |
| Short circuit current rating | yes |
| Overload protection | Available |
| Rated operational voltage DC | 24 V |
| Operational voltage range DC | 7 V ... 30 V |
| Reverse polarity protection | For all electrical connections |
| Electrical connection 1, connection type | Cable |
| Electrical connection 1, connector system | Open end |
| Electrical connection 1, number of connections/cores | 2 |
| Connection outlet orientation | In-line |
| Test conditions cable | Bending strength: to Festo standard Test conditions on request Torsional resistance: > 300,000 cycles, ± 270°/0.1 m Energy chain: > 5 million cycles, bending radius 28 mm |
| Cable length | 2.5 m |
| Cable characteristic | Suitable for energy chains/robot applications |
| Material cable sheath | TPE-U(PUR) |
| Type of mounting | Screw-clamped Insertable in the slot from above |
| Max. tightening torque | 0.4 Nm |
| Mounting position | optional |
| Product weight | 14.6 g |
| Material housing | PA-reinforced High-alloy stainless steel |
| Switching status indication | Yellow LED |
| Ambient temperature with moving cable | -20 °C ... 70 °C |
| Degree of protection | IP65 IP68 |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Suitability for the production of Li-ion batteries | Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils |
| Cleanroom class | Class 4 according to ISO 14644-1 |
| Manufacturer Nr. | SMT-10M-ZS-24V-E-2,5-L-OE |
|---|---|
| Manufacturer | Festo |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| EAN | 4052568094812 |
| Weight | 0.021000 |
| HS-Code | 85365019 |
| Article authenticity | Original product |
| Condition of article | New |
Download
Customers Who Bought This Item Also Bought

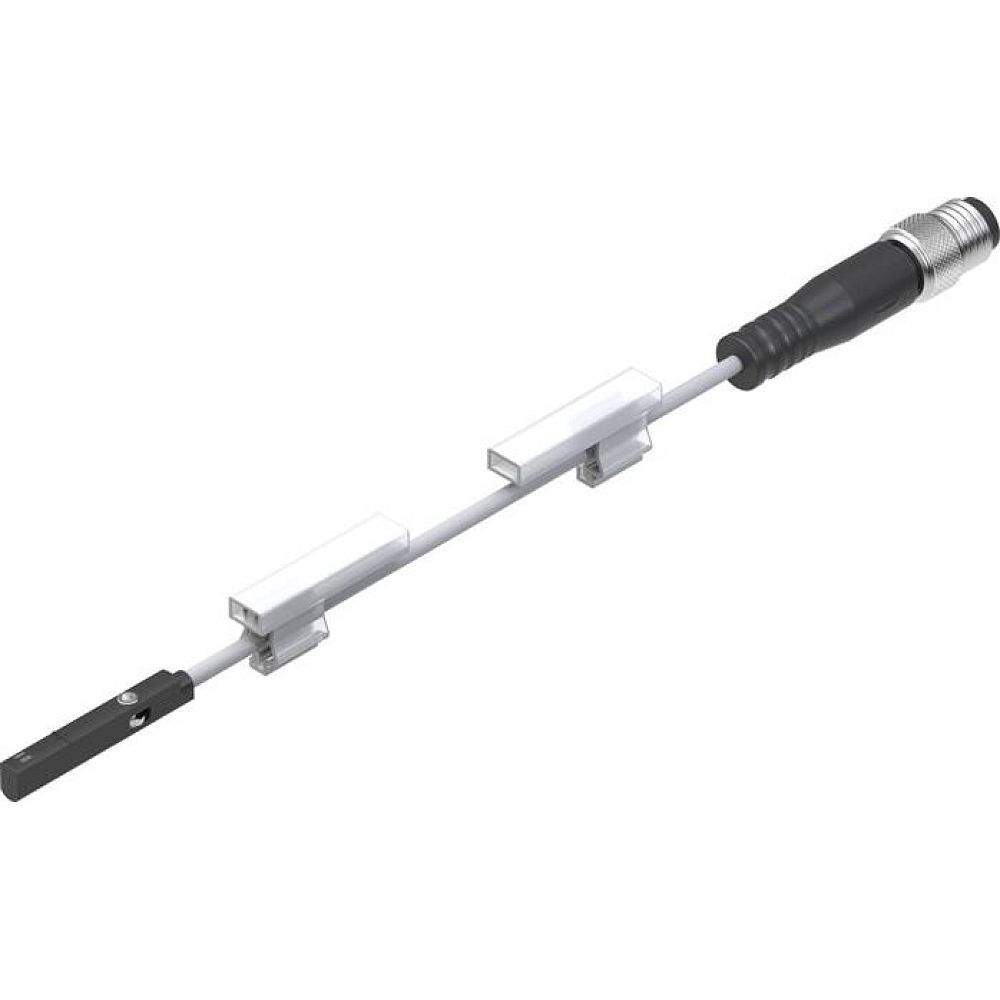

Festo 551367. Proximity sensor SME-10M-DS-24V-E-0,3-L-M8D
